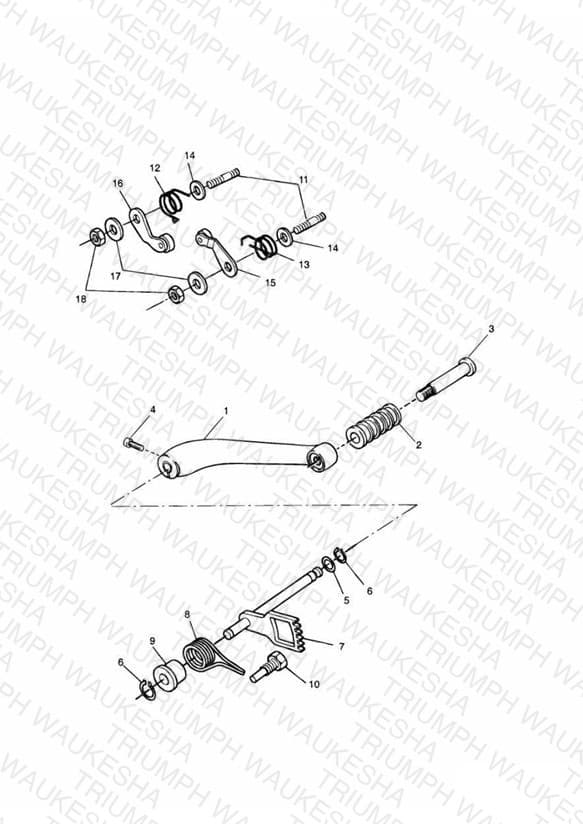

Gear Change Pedal
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2080284 Gear shift lever | Gear shift lever | 1 | $114.08 | Available to order | 1 |
| 2 | T2080766 Rubber, Gearchange Pedal | Rubber, Gearchange Pedal | 1 | $9.22 | Available to order | 1 |
| 3 | T2081778 Pin, Gearchange | Pin, Gearchange | 1 | $13.10 | Available to order | 1 |
| 4 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 1 | $1.51 | Available to order | 1 |
| 5 | T3555003 Washer, 12 x 18 x 1.2 | Washer, 12 x 18 x 1.2 | 1 | $1.40 | Available to order | 1 |
| 6 | 3500008-T0301 Circlip | Circlip | 2 | $0.90 | Obsolete | View Details |
| 7 | T1190255 Shaft assembly | Shaft assembly » Engine No.112913 (incl. 113024 » 113625) 3 Cyl | 1 | $91.26 | Available to order | 1 |
| 8 | T1190160 Return spring | Return spring | 1 | $11.07 | Obsolete | View Details |
| 9 | 1190340-T0301 Bush spring | Bush spring | 1 | $3.54 | Obsolete | View Details |
| 10 | 1190170-T0301 Bolt | Bolt | 1 | $4.56 | Obsolete | View Details |
| 11 | 3100002-T0301 Stud | Stud M6 x 23mm | 2 | $1.53 | Obsolete | View Details |
| 12 | 1190335-T0301 Spring detent | Spring detent Gears - PART NO LONGER AVAILABLE | 1 | $3.62 | Obsolete | View Details |
| 13 | 1190140-T0301 Spring detent | Spring detent Neutral White | 1 | $2.16 | Obsolete | View Details |
| 14 | T3555017 Washer, 6.5 x 12.5 x 0.8 | Washer, 6.5 x 12.5 x 0.8 M6 Hardened | 2 | $3.04 | Available to order | 2 |
| 15 | 1190021-T0301 Detent arm assembly | Detent arm assembly Neutral - ** Part No Longer Available ** | 1 | $20.57 | Obsolete | View Details |
| 16 | 1190022-T0301 Detent arm assembly | Detent arm assembly Gears - ** Part No Longer Available ** | 1 | $11.08 | Obsolete | View Details |
| 17 | T1190192 Collar, Detent Arm | Collar, Detent Arm | 2 | $2.00 | Backorder — Late August 2026 | 2 |
| 18 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 2 | $0.94 | Available to order | 2 |
