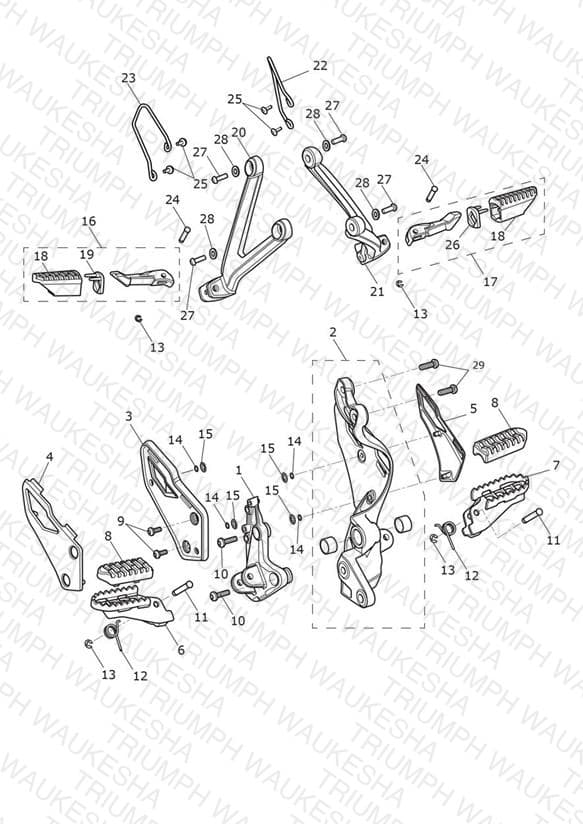

Footrests & Mountings
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2081519 Control Plate, RH, Black | Control Plate, RH, Black | 1 | $142.58 | Out of Stock | Notify Me |
| 2 | T2081544 Control Plate, LH, Black | Control Plate, LH, Black | 1 | $142.58 | Available to order | 1 |
| 3 | T2081157 Heelguard, RH, Black | Heelguard, RH, Black | 1 | $108.34 | Backorder — Late August 2026 | 1 |
| 4 | T2081227 Insert, Heelguard, RH | Insert, Heelguard, RH | 1 | $22.64 | Available to order | 1 |
| 5 | T2081106 Insert, Heelguard, LH | Insert, Heelguard, LH | 1 | $54.20 | Available to order | 1 |
| 6 | T2085114 Footpeg, RH, Front | Footpeg, RH, Front | 1 | $75.11 | Available to order | 1 |
| 7 | T2085116 Footpeg, LH, Front | Footpeg, LH, Front | 1 | $75.11 | Available to order | 1 |
| 8 | T2085119 Footrest, Rubber | Footrest, Rubber | 2 | $12.55 | Available to order | 2 |
| 9 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.63 | Available to order | 2 |
| 10 | T3335012 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 2 | $8.33 | Available to order | 2 |
| 11 | T2080874 Pivot Pin, Footrest, 8.0 | Pivot Pin, Footrest, 8.0 | 2 | $9.10 | Available to order | 2 |
| 12 | T2081031 Return Spring, Footrest | Return Spring, Footrest | 2 | $7.14 | Backorder — Early September 2026 | 2 |
| 13 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 4 | $2.85 | Available to order | 4 |
| 14 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 4 | $5.30 | Available to order | 4 |
| 15 | T3550256 Washer, Retaining, 6.0 | Washer, Retaining, 6.0 | 4 | $1.13 | Available to order | 4 |
| 16 | T2084401 Rear Footrest Assy, RH | Rear Footrest Assy, RH | 1 | $69.35 | Available to order | 1 |
| 17 | T2084402 Rear Footrest Assy, LH | Rear Footrest Assy, LH | 1 | $69.35 | Available to order | 1 |
| 18 | T2084405 Footrest Rubber | Footrest Rubber | 2 | $13.61 | Available to order | 2 |
| 19 | T2084407 Rear Footrest Detent Plate, RH | Rear Footrest Detent Plate, RH | 1 | $6.39 | Available to order | 1 |
| 20 | T2086981 Footrest Hanger, Rear, RH | Footrest Hanger, Rear, RH | 1 | $119.76 | Available to order | 1 |
| 21 | T2086982 Footrest Hanger, Rear, LH | Footrest Hanger, Rear, LH | 1 | $119.76 | Available to order | 1 |
| 22 | T2087851 Heelguard, Rear, LH | Heelguard, Rear, LH | 1 | $33.15 | Available to order | 1 |
| 23 | T2087852 Heelguard, Rear, RH | Heelguard, Rear, RH | 1 | $33.15 | Available to order | 1 |
| 24 | T2080546 Pin, Pivot, Footrest | Pin, Pivot, Footrest | 2 | $6.55 | Available to order | 2 |
| 25 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 4 | $6.73 | Available to order | 4 |
| 26 | T2084408 Rear Footrest Detent Plate, LH | Rear Footrest Detent Plate, LH | 1 | $6.39 | Available to order | 1 |
| 27 | T3335015 Screw, But/Hd, TX, M8 x 30 | Screw, But/Hd, TX, M8 x 30 | 4 | $8.33 | Out of Stock | Notify Me |
| 28 | T3550405 Washer, M8 x 17 x 1.6 | Washer, M8 x 17 x 1.6 | 4 | $0.89 | Available to order | 4 |
| 29 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 2 | $3.50 | Available to order | 2 |
