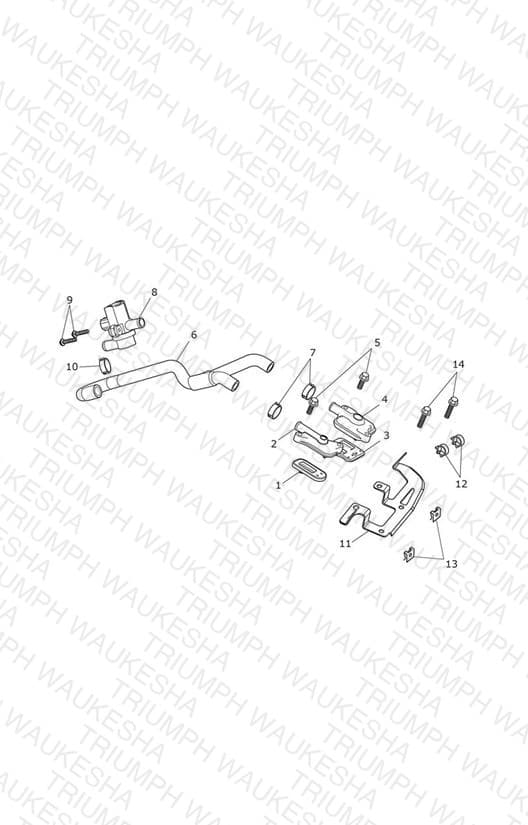

Emissions Control
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1250022 Reed Valve | Reed Valve | 1 | $54.20 | Backorder — Late August 2026 | 1 |
| 2 | T1250188 Cover, Reed Valve, Single | Cover, Reed Valve, Single | 1 | $36.58 | Available to order | 1 |
| 3 | T1250015 Reed Valve, Double | Reed Valve, Double | 1 | $59.87 | Backorder — Mid August 2026 | 1 |
| 4 | T1250196 Cover, Reed Valve, Double | Cover, Reed Valve, Double | 1 | $55.12 | Backorder — Late August 2026 | 1 |
| 5 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 6 | T1250725 Hose, SAI | Hose, SAI | 1 | $35.96 | Available to order | 1 |
| 7 | T3700051 Hose Clip, Dia 18.1-20 x 8mm | Hose Clip, Dia 18.1-20 x 8mm | 2 | $2.25 | Out of Stock | Notify Me |
| 8 | T1250522 Solenoid, SAI | Solenoid, SAI | 1 | $98.85 | Available to order | 1 |
| 9 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 2 | $2.17 | Available to order | 2 |
| 10 | T3700050 Hose Clip, Dia 19.5-22 x 8mm | Hose Clip, Dia 19.5-22 x 8mm | 1 | $3.77 | Available to order | 1 |
| 11 | T2501275 Bracket, Connector Mounting | Bracket, Connector Mounting | 1 | $6.73 | Out of Stock | Notify Me |
| 12 | T3700182 Clip, Omega, 18mm x 14mm | Clip, Omega, 18mm x 14mm | 2 | $4.12 | Available to order | 2 |
| 13 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 14 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv Eng No 791976 > - All Except BR; 792241 > BR Only | 2 | $2.63 | Available to order | 2 |
