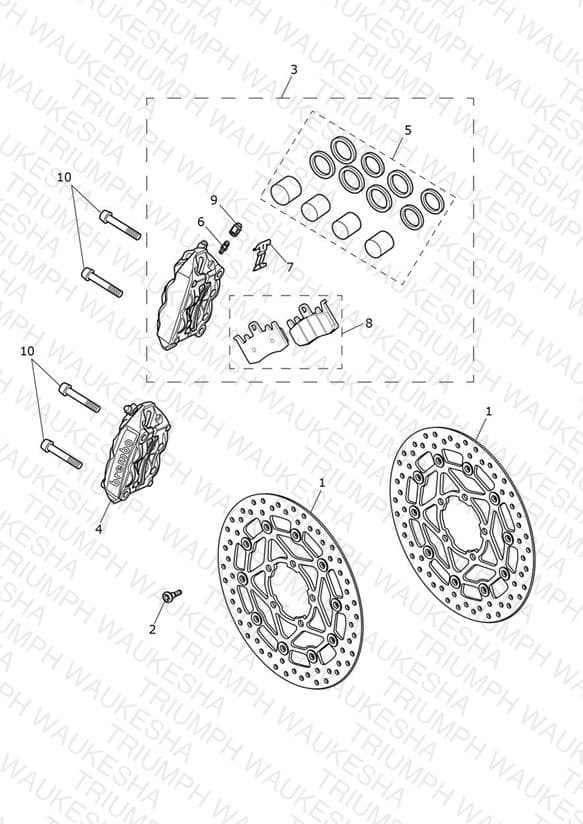

Front Brake Caliper & Discs
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2024400 Disc Assy | Disc Assy | 2 | $303.18 | Available to order | 2 |
| 2 | T2024801 Bolt, Disc, M8 x 30, Slv, Enc | Bolt, Disc, M8 x 30, Slv, Enc | 10 | $1.90 | Available to order | 10 |
| 3 | T2022452 Caliper, Brake, LH, M4.32 | Caliper, Brake, LH, M4.32 | 1 | $739.35 | Out of Stock | Notify Me |
| 4 | T2022454 Caliper, Brake, RH, M4.32 | Caliper, Brake, RH, M4.32 | 1 | $739.35 | Out of Stock | Notify Me |
| 5 | T2022456 Piston & Seal Kit, Caliper | Piston & Seal Kit, Caliper | 2 | $57.03 | Available to order | 2 |
| 6 | T2020695 Bleed Screw Set | Bleed Screw Set | 2 | $9.22 | Backorder — Early October 2026 | 2 |
| 7 | T2022457 Pad Spring, Pin, Clip, Caliper | Pad Spring, Pin, Clip, Caliper | 2 | $23.58 | Out of Stock | Notify Me |
| 8 | T2022458 Pad Set, Caliper | Pad Set, Caliper | 2 | $67.19 | Available to order | 2 |
| 9 | T2021453 Boot, Bleed Screw, Caliper | Boot, Bleed Screw, Caliper | 2 | $12.29 | Available to order | 2 |
| 10 | T3332222 Bolt, Skt, M10 x 60, Slv | Bolt, Skt, M10 x 60, Slv | 4 | $8.87 | Available to order | 4 |
