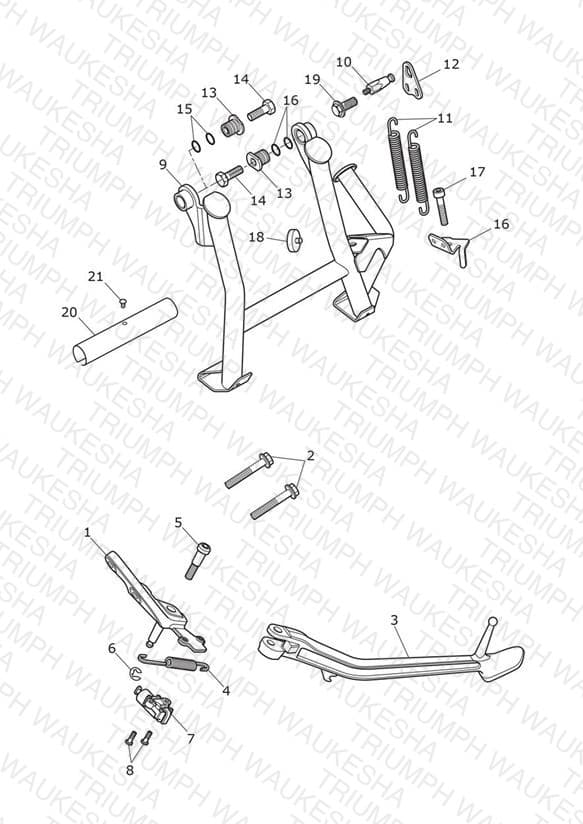

Stands
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2087791 Sidestand Bracket | Sidestand Bracket | 1 | $177.56 | Available to order | 1 |
| 2 | T3205760 Bolt, HHF, Lghtd, M10 x 60, Slv | Bolt, HHF, Lghtd, M10 x 60, Slv | 2 | $6.54 | Available to order | 2 |
| 3 | T2082133 Sidestand Leg, Black | Sidestand Leg, Black N/A to Low Ride Height Version | 1 | $183.07 | Backorder — Mid October 2026 | 1 |
| 3 | T2081546 Sidestand Leg, Black, Low | Sidestand Leg, Black, Low Low Ride Height Version Only | 1 | $124.48 | Available to order | 1 |
| 4 | T2080808 Spring, Sidestand | Spring, Sidestand | 1 | $11.33 | Available to order | 1 |
| 5 | T2084020 Pin, Pivot, Sidestand | Pin, Pivot, Sidestand | 1 | $7.48 | Available to order | 1 |
| 6 | T3500210 Circlip, Ext, 8 x 1 | Circlip, Ext, 8 x 1 | 1 | $2.29 | Available to order | 1 |
| 7 | T2080746 Sidestand Switch | Sidestand Switch | 1 | $59.74 | Available to order | 1 |
| 8 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $1.04 | Available to order | 2 |
| 9 | T2081358 Centrestand Assy | Centrestand Assy N/A to Low Ride Height Version | 1 | $259.96 | Available to order | 1 |
| 10 | T2081970 Pin, Centrestand Spring | Pin, Centrestand Spring N/A to Low Ride Height Version | 1 | $17.36 | Available to order | 1 |
| 11 | T2080793 Spring, Centrestand | Spring, Centrestand N/A to Low Ride Height Version | 2 | $8.71 | Available to order | 2 |
| 12 | T2080811 Bracket, Centrestand Spring | Bracket, Centrestand Spring N/A to Low Ride Height Version | 1 | $23.56 | Available to order | 1 |
| 13 | T2083340 Boss, Pivot, Centrestand | Boss, Pivot, Centrestand N/A to Low Ride Height Version | 2 | $35.95 | Available to order | 2 |
| 14 | T3332162 Screw, M10 X 30, Enc | Screw, M10 X 30, Enc N/A to Low Ride Height Version | 2 | $6.98 | Available to order | 2 |
| 15 | T3606360 O Ring, 14.1 x 1.6 | O Ring, 14.1 x 1.6 N/A to Low Ride Height Version | 4 | $2.24 | Available to order | 4 |
| 16 | T2081147 Bracket, Centrestand Spring | Bracket, Centrestand Spring N/A to Low Ride Height Version | 1 | $22.67 | Available to order | 1 |
| 17 | T3051043 Screw, Cap/Hd, M8 x 45 | Screw, Cap/Hd, M8 x 45 N/A to Low Ride Height Version | 1 | $7.08 | Available to order | 1 |
| 18 | T2081928 Up Stop, Centrestand | Up Stop, Centrestand N/A to Low Ride Height Version | 1 | $6.07 | Available to order | 1 |
| 19 | T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv | Bolt, HHF, Lghtd, M8 x 16, Slv N/A to Low Ride Height Version | 1 | $1.73 | Available to order | 1 |
| 20 | T2081346 Cover, Tubular, Plastic | Cover, Tubular, Plastic N/A to Low Ride Height Version | 1 | $23.07 | Available to order | 1 |
| 21 | T3300008 Rivet, Barbed, 2.1-4.3mm | Rivet, Barbed, 2.1-4.3mm N/A to Low Ride Height Version | 1 | $10.84 | Available to order | 1 |
