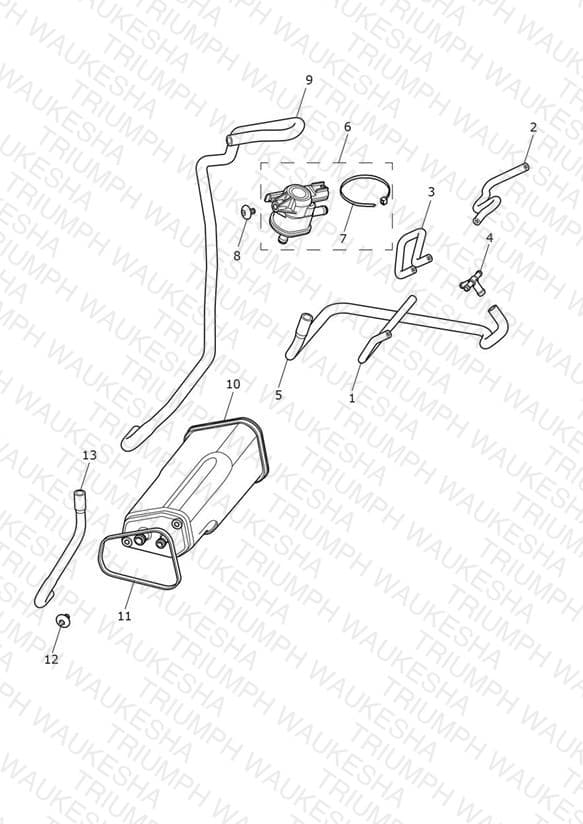

Evaporative Loss Control System
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1241803 Hose, Evap, Cyl 3 | Hose, Evap, Cyl 3 | 1 | $10.71 | Available to order | 1 |
| 2 | T1241801 Hose, Evap, Cyl 1 | Hose, Evap, Cyl 1 | 1 | $10.71 | Available to order | 1 |
| 3 | T1241802 Hose, Evap, Cyl 2 | Hose, Evap, Cyl 2 | 1 | $9.69 | Available to order | 1 |
| 4 | T1242929 Connector, 4 Way | Connector, 4 Way | 1 | $10.90 | Available to order | 1 |
| 5 | T1241411 Hose, Evap, Purge | Hose, Evap, Purge | 1 | $20.69 | Available to order | 1 |
| 6 | T1248991 Purge Valve Assembly | Purge Valve Assembly | 1 | $66.52 | Out of Stock | Notify Me |
| 7 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 1 | $0.95 | Available to order | 1 |
| 8 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 1 | $3.90 | Available to order | 1 |
| 9 | T1241412 Hose, Evap, Cannister | Hose, Evap, Cannister | 1 | $27.83 | Available to order | 1 |
| 10 | T2403010 Carbon Cannister | Carbon Cannister | 1 | $112.13 | Available to order | 1 |
| 13 | T2400434 Hose, Roll Over Valve to Canister | Hose, Roll Over Valve to Canister | 1 | $24.60 | Out of Stock | Notify Me |
