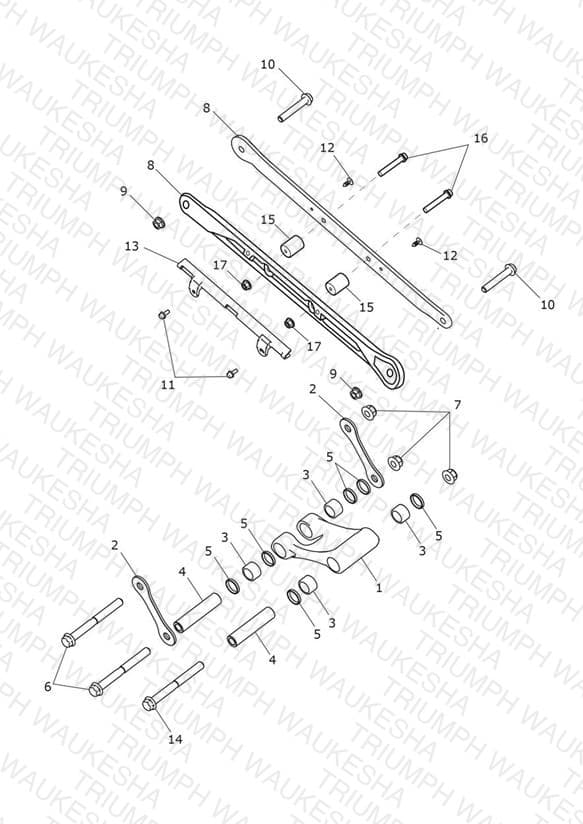

Triumph Tiger Explorer Rear Suspension Linkage — OEM Parts Diagram

Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics

Loading schematic...

What Our Customers Say

4.9 out of 5 based on 175 reviews

View all reviews →

“Thanks.”

B. BOUTET · SANTA MARIA, CA · Apr 2026

“So far excellent”

K. Colmark · Pharr, TX · Mar 2026

“great shop. easy to search/navigate for parts”

B. Hobratschk · Buda, TX · Feb 2026

“Very Smooth”

D. Haynes · GREENBACKVILLE, VA · Feb 2026

“Great inventory!”

S. Saenz · IDAHO FALLS, ID · Feb 2026

“This is my favorite Triumph OEM store on the planet”

C. Bozonier · VENTURA, CA · Jan 2026

#	Part Number	Description	Qty	Price	Status
1	T2054138 Drag Link, Forged & M/C	Drag Link, Forged & M/C	1	$89.35	Backorder — Late August 2026	1
2	T2050129 Plate, Drop Link	Plate, Drop Link	2	$54.20	Available to order	2 Ships within 3–7 business days
3	T3800199 Bearing, Needle Roller, 20 x 26 x 20	Bearing, Needle Roller, 20 x 26 x 20	4	$16.50	Available to order	4 Ships within 3–7 business days
4	T2057399 Sleeve, Ground Steel, 90mm	Sleeve, Ground Steel, 90mm	2	$40.22	Available to order	2 Ships within 3–7 business days
5	T3600178 Seal, 20 x 26 x 4	Seal, 20 x 26 x 4	6	$7.71	Available to order	6 Ships within 3–7 business days
6	T3334680 Bolt, HHF, M12 x 119, Slv	Bolt, HHF, M12 x 119, Slv	2	$8.33	Available to order	2 Ships within 3–7 business days
7	T3350234 Locknut, Flgd, M12 x 1.25	Locknut, Flgd, M12 x 1.25	3	$6.07	Available to order	3 Ships within 3–7 business days
8	T2050356 Torque Arm	Torque Arm	2	$68.42	Backorder — Late August 2026	2
9	T3350005 Locknut, Flgd, M10	Locknut, Flgd, M10 > 529986	2	$5.30	Available to order	2 Ships within 3–7 business days
9	T3350250 Locknut, Flanged, M10	Locknut, Flanged, M10 529987 >	2	$4.16	Available to order	2 Ships within 3–7 business days
10	T3205760 Bolt, HHF, Lghtd, M10 x 60, Slv	Bolt, HHF, Lghtd, M10 x 60, Slv	2	$6.14	Available to order	2 Ships within 3–7 business days
11	T3332568 Screw, But/HD, M5 x 8, Slv	Screw, But/HD, M5 x 8, Slv	2	$3.90	Available to order	2 Ships within 3–7 business days
12	T3300008 Rivet, Barbed, 2.1-4.3mm	Rivet, Barbed, 2.1-4.3mm	2	$10.18	Available to order	2 Ships within 3–7 business days
13	T2057355 Hose Guide	Hose Guide	1	$7.42	Available to order	1 Ships within 3–7 business days
14	T3334635 Screw, HHF, M12 x 1.25 x 130	Screw, HHF, M12 x 1.25 x 130	1	$9.22	Available to order	1 Ships within 3–7 business days
15	T2050354 Spacer, 6.5 x 21 x 26.3	Spacer, 6.5 x 21 x 26.3	2	$13.61	Out of Stock	Notify Me
16	T3205104 Bolt, HHF, Lghtd, M6 x 1 x 50, Blk	Bolt, HHF, Lghtd, M6 x 1 x 50, Blk	2	$2.63	Available to order	2 Ships within 3–7 business days
17	T3350003 Locknut, Flanged, M6 x 1	Locknut, Flanged, M6 x 1	2	$0.67	Available to order	2 Ships within 3–7 business days
