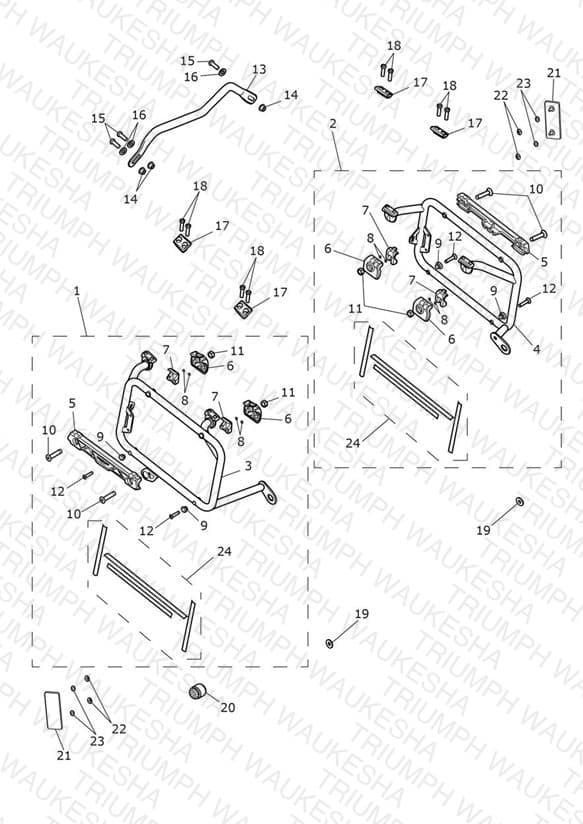

Luggage
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2350168 Mounting Frame Assy, RH | Mounting Frame Assy, RH | 1 | $453.28 | Available to order | 1 |
| 2 | T2350169 Mounting Frame Assy, LH | Mounting Frame Assy, LH | 1 | $453.28 | Available to order | 1 |
| 3 | T2350181 Mounting Frame, Fabrication, RH | Mounting Frame, Fabrication, RH | 1 | $142.81 | Backorder — Mid October 2026 | 1 |
| 4 | T2350182 Mounting Frame, Fabrication, LH | Mounting Frame, Fabrication, LH | 1 | $142.81 | Out of Stock | Notify Me |
| 5 | T2350208 Casting, Upper | Casting, Upper | 2 | $175.72 | Available to order | 2 |
| 6 | T2352353 Rear Body, Mechanism | Rear Body, Mechanism | 4 | $44.09 | Out of Stock | Notify Me |
| 7 | T2352354 Mechanism, Internal | Mechanism, Internal | 4 | $95.18 | Out of Stock | Notify Me |
| 8 | T2352356 Spring, Mechanism | Spring, Mechanism | 8 | $53.23 | Available to order | 8 |
| 9 | T9509542 Bobbin, Luggage | Bobbin, Luggage | 4 | $18.46 | Available to order | 4 |
| 10 | T2352357 Screw, Csk, M8 x 1.25 x 35 | Screw, Csk, M8 x 1.25 x 35 | 4 | $5.65 | Out of Stock | Notify Me |
| 11 | T2352358 Locknut, M8 x 1.25 | Locknut, M8 x 1.25 | 4 | $2.40 | Out of Stock | Notify Me |
| 12 | T2350203 Screw, Csk, M6 x 27, Enc | Screw, Csk, M6 x 27, Enc | 4 | $4.74 | Available to order | 4 |
| 13 | T2350171 Mounting Frame, Link Bar | Mounting Frame, Link Bar | 1 | $102.62 | Backorder — Mid October 2026 | 1 |
| 14 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 3 | $2.61 | Available to order | 3 |
| 15 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 3 | $3.73 | Available to order | 3 |
| 16 | T3550184 Washer, Hardened, 8.2 x 18.7 x 2 | Washer, Hardened, 8.2 x 18.7 x 2 | 3 | $2.40 | Backorder — Early October 2026 | 3 |
| 17 | T2358887 Clamp, Upper, Mounting Frame | Clamp, Upper, Mounting Frame | 4 | $19.31 | Available to order | 4 |
| 18 | T3051061 Screw, Cap/Hd, M6 x 30, Slv | Screw, Cap/Hd, M6 x 30, Slv | 8 | $5.47 | Available to order | 8 |
| 19 | T2350184 Spacer, 8.2 x 22 x 4 | Spacer, 8.2 x 22 x 4 | 2 | $8.52 | Available to order | 2 |
| 20 | T2203434 Stop, Silencer | Stop, Silencer | 1 | $7.28 | Available to order | 1 |
| 21 | T2707111 Reflex Reflector | Reflex Reflector US, CA, AR, ID, ZA & AU Only | 2 | $10.52 | Available to order | 2 |
| 22 | T3550253 Washer, Dia 5 mm, Retaining | Washer, Dia 5 mm, Retaining US, CA, AR, ID, ZA & AU Only | 4 | $1.04 | Available to order | 4 |
| 23 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 US, CA, AR, ID, ZA & AU Only | 4 | $5.65 | Available to order | 4 |
| 24 | T2350183 Protective Sticker Set | Protective Sticker Set | 2 | $7.38 | Out of Stock | Notify Me |
