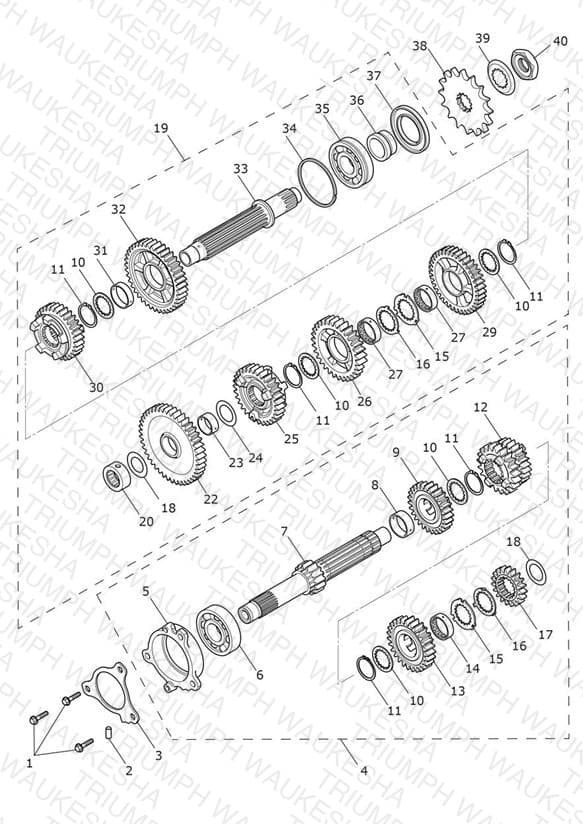

Transmission
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 3 | $5.60 | Available to order | 3 |
| 2 | T3000032 Dowel, Dia 6 x 10.8 | Dowel, Dia 6 x 10.8 | 1 | $6.45 | Available to order | 1 |
| 3 | T1180297 Bearing Retainer Plate | Bearing Retainer Plate | 1 | $20.43 | Available to order | 1 |
| 4 | T1187400 Input Shaft Assembly, Gearbox | Input Shaft Assembly, Gearbox | 1 | $355.59 | Out of Stock | Notify Me |
| 5 | T1180383 Input Shaft Bearing Housing | Input Shaft Bearing Housing | 1 | $23.58 | Backorder — Late August 2026 | 1 |
| 6 | T3800123 Bearing Ball, 25 x 62 x 17 | Bearing Ball, 25 x 62 x 17 | 1 | $102.64 | Available to order | 1 |
| 7 | T1187301 Input Shaft & 1st, 15T | Input Shaft & 1st, 15T | 1 | $242.87 | Available to order | 1 |
| 8 | T1180354 Bush, 28 x 31 x 11.2, Input 5th | Bush, 28 x 31 x 11.2, Input 5th | 1 | $54.20 | Available to order | 1 |
| 9 | T1186005 Gear, Input, 5th, 28T | Gear, Input, 5th, 28T | 1 | $86.66 | Available to order | 1 |
| 10 | T1180331 Washer, Splined, 28 x 34 x 1.5 | Washer, Splined, 28 x 34 x 1.5 | 5 | $5.98 | Available to order | 5 |
| 11 | T3500058 Circlip, 28mm | Circlip, 28mm | 5 | $8.12 | Available to order | 5 |
| 12 | T1189993 Gear, Input, 3rd/4th, 23T/21T | Gear, Input, 3rd/4th, 23T/21T | 1 | $123.56 | Available to order | 1 |
| 13 | T1186006 Gear, Input, 6th, 30T | Gear, Input, 6th, 30T | 1 | $95.04 | Available to order | 1 |
| 14 | T1180357 Collar, Splined, 18x11.5, Input6 | Collar, Splined, 18x11.5, Input6 | 1 | $63.70 | Available to order | 1 |
| 15 | T1180347 Washer, Splined, 28mm | Washer, Splined, 28mm | 2 | $6.14 | Available to order | 2 |
| 16 | T1180348 Washer, Lock, 28mm | Washer, Lock, 28mm | 2 | $6.29 | Available to order | 2 |
| 17 | T1187342 Gear, Input, 2nd, 19T | Gear, Input, 2nd, 19T | 1 | $53.92 | Out of Stock | Notify Me |
| 18 | T1180334 Washer, Thrust, 20mm | Washer, Thrust, 20mm | 2 | $6.14 | Available to order | 2 |
| 19 | T1187500 Output Shaft Assembly, Gearbox | Output Shaft Assembly, Gearbox | 1 | $1054.57 | Out of Stock | Notify Me |
| 20 | T3800068 Bearing, Needle Roller, Dowel | Bearing, Needle Roller, Dowel | 1 | $133.08 | Available to order | 1 |
| 22 | T1187336 Gear, Output, 1st, 43T | Gear, Output, 1st, 43T | 1 | $129.16 | Out of Stock | Notify Me |
| 23 | T1180359 Bush, 22 x 25 x 11, Output 1st | Bush, 22 x 25 x 11, Output 1st | 1 | $63.70 | Available to order | 1 |
| 24 | T1180358 Washer, Thrust 22mm | Washer, Thrust 22mm | 1 | $8.65 | Available to order | 1 |
| 25 | T1186985 Gear, Output, 5th, 31T | Gear, Output, 5th, 31T | 1 | $134.99 | Available to order | 1 |
| 26 | T1186104 Gear, Output, 4th, 27T | Gear, Output, 4th, 27T | 1 | $125.46 | Available to order | 1 |
| 27 | T1180368 Collar, Spline, 28 x 9, Output 3 | Collar, Spline, 28 x 9, Output 3 | 2 | $63.70 | Available to order | 2 |
| 29 | T1180363 Gear Output 3rd, 36T | Gear Output 3rd, 36T | 1 | $87.47 | Out of Stock | Notify Me |
| 30 | T1188606 Gear, Output, 6th, 29T | Gear, Output, 6th, 29T | 1 | $96.16 | Backorder — Late August 2026 | 1 |
| 31 | T1180367 Bush, 28 x 31 x 8.4, Output, 2nd | Bush, 28 x 31 x 8.4, Output, 2nd | 1 | $57.98 | Available to order | 1 |
| 32 | T1187354 Gear, Ouput, 2nd, 39T | Gear, Ouput, 2nd, 39T | 1 | $98.38 | Out of Stock | Notify Me |
| 33 | T1181533 Output Shaft | Output Shaft | 1 | $278.52 | Out of Stock | Notify Me |
| 34 | T3800094 Ring Bearing Retainer | Ring Bearing Retainer | 1 | $3.39 | Backorder — Late August 2026 | 1 |
| 35 | T3800066 Bearing 6305, High Duty | Bearing 6305, High Duty | 1 | $199.57 | Available to order | 1 |
| 36 | T1180369 Spacer, Sprocket | Spacer, Sprocket | 1 | $11.41 | Available to order | 1 |
| 37 | T3600113 Seal, Oil 35 x 62 x 5 | Seal, Oil 35 x 62 x 5 | 1 | $24.60 | Available to order | 1 |
| 38 | T1181942 Sprocket, Output, 16T, 520 | Sprocket, Output, 16T, 520 | 1 | $37.07 | Available to order | 1 |
| 39 | T1180328 Washer, Tab, Sprocket | Washer, Tab, Sprocket | 1 | $17.01 | Available to order | 1 |
| 40 | T1180183 Nut, M20 x 1.5, 6 Deep | Nut, M20 x 1.5, 6 Deep | 1 | $10.87 | Available to order | 1 |
