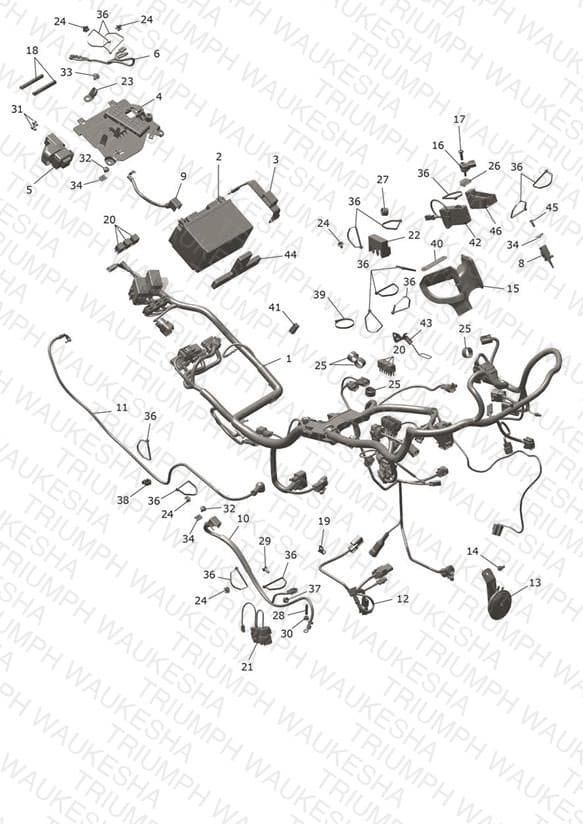

Electrical System
Parts (54)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2504143 Main Harness | Main Harness | 1 | $830.62 | Out of Stock | Notify Me |
| 2 | T2500183 Battery | Battery All Markets Except EF/ER/GR/BR/JP | 1 | $120.70 | Available to order | 1 |
| 2 | T2504606 Spares Kit, Battery | Spares Kit, Battery BR Only | 1 | $125.73 | Out of Stock | Notify Me |
| 2 | T2505583 Battery, 12V, 8,6AH, FCB | Battery, 12V, 8,6AH, FCB JP Only | 1 | $214.77 | Available to order | 1 |
| 2 | T2506715 Kit, Battery, YTX9-BS | Kit, Battery, YTX9-BS EF/ER/GR Markets Only | 1 | $120.70 | Out of Stock | Notify Me |
| 3 | T2501756 Battery strap | Battery strap | 1 | $10.02 | Available to order | 1 |
| 4 | T2503950 Bracket, ECU, Moulding | Bracket, ECU, Moulding | 1 | $8.74 | Out of Stock | Notify Me |
| 5 | T1310120 Starter, Solenoid, Fused | Starter, Solenoid, Fused | 1 | $61.20 | Available to order | 1 |
| 6 | T2504888 Subharness, Rear Number Plate | Subharness, Rear Number Plate | 1 | $44.40 | Available to order | 1 |
| 7 | T2500805 Fuse, 30A | Fuse, 30A | 1 | $1.50 | Available to order | 1 |
| 7 | T2501302 Fuse, Mini, 2A | Fuse, Mini, 2A | 1 | $2.40 | Out of Stock | Notify Me |
| 7 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 1 | $5.05 | Available to order | 1 |
| 7 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 1 | $5.05 | Available to order | 1 |
| 7 | T2501315 Fuse, Mini, 15A | Fuse, Mini, 15A | 1 | $5.05 | Available to order | 1 |
| 7 | T2501325 Fuse, Mini, 25A | Fuse, Mini, 25A | 1 | $5.05 | Available to order | 1 |
| 7 | T2503307 Fuse, Mini, 7.5A | Fuse, Mini, 7.5A | 1 | $4.95 | Available to order | 1 |
| 8 | T1290088 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $63.55 | Available to order | 1 |
| 9 | T2504490 Lead, Battery, Positive | Lead, Battery, Positive | 1 | $15.67 | Out of Stock | Notify Me |
| 10 | T2505779 Earth Lead | Earth Lead | 1 | $27.93 | Backorder — Mid October 2026 | 1 |
| 11 | T2505073 Lead, Starter | Lead, Starter | 1 | $24.88 | Available to order | 1 |
| 12 | T2510000 Engine Subharness | Engine Subharness | 1 | $79.13 | Available to order | 1 |
| 13 | T2505171 Horn Assy, 440HZ | Horn Assy, 440HZ | 1 | $44.71 | Available to order | 1 |
| 14 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 1 | $2.79 | Available to order | 1 |
| 15 | T2502722 Guide, Headstock Rubber | Guide, Headstock Rubber | 1 | $13.84 | Out of Stock | Notify Me |
| 16 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 1 | $139.14 | Available to order | 1 |
| 17 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 1 | $5.65 | Available to order | 1 |
| 18 | T2502698 Edge Protector, Headstock | Edge Protector, Headstock | 2 | $9.86 | Backorder — Mid October 2026 | 2 |
| 19 | T2508250 Tab, Connector, Crank Pos | Tab, Connector, Crank Pos | 1 | $10.19 | Backorder — Mid October 2026 | 1 |
| 20 | T2507729 Relay, Ultra Micro, ISO 280 | Relay, Ultra Micro, ISO 280 | 6 | $8.02 | Available to order | 6 |
| 21 | T2506088 Relay Cover | Relay Cover | 1 | $7.91 | Available to order | 1 |
| 22 | T2503437 Auxilary Fly Lead, JP | Auxilary Fly Lead, JP JP Only | 1 | $24.88 | Available to order | 1 |
| 23 | T2503259 Docking Clip, Relay Holder | Docking Clip, Relay Holder | 1 | $3.97 | Available to order | 1 |
| 24 | T3704444 Clip, Cable Tie, Fir Tree | Clip, Cable Tie, Fir Tree | 5 | $2.65 | Backorder — Early October 2026 | 5 |
| 25 | T3700212 Band, Rubber | Band, Rubber | 3 | $3.50 | Available to order | 3 |
| 26 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 1 | $5.24 | Available to order | 1 |
| 27 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 1 | $4.15 | Available to order | 1 |
| 28 | T3100050 Stud, M6 x 28, Enc | Stud, M6 x 28, Enc | 1 | $3.93 | Available to order | 1 |
| 29 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.84 | Available to order | 1 |
| 30 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.71 | Available to order | 1 |
| 31 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 2 | $5.20 | Available to order | 2 |
| 32 | T3330957 Screw, But/Hd, M5 x 12, Slv | Screw, But/Hd, M5 x 12, Slv | 2 | $9.00 | Available to order | 2 |
| 33 | T3701121 Rivet, Plastic, Screw Type | Rivet, Plastic, Screw Type | 1 | $1.29 | Available to order | 1 |
| 34 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 3 | $4.84 | Available to order | 3 |
| 36 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 15 | $0.95 | Available to order | 15 |
| 37 | T3020019 Grommet, Split, Rubber | Grommet, Split, Rubber | 1 | $1.73 | Available to order | 1 |
| 38 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 1 | $3.45 | Available to order | 1 |
| 39 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 1 | $1.01 | Available to order | 1 |
| 40 | T3700252 Rubber Band, 88mm | Rubber Band, 88mm | 1 | $10.21 | Available to order | 1 |
| 41 | T2505049 Blanking Plug, O2 Sensor | Blanking Plug, O2 Sensor | 1 | $7.08 | Available to order | 1 |
| 42 | T2508989 Connectivity Module | Connectivity Module | 1 | $355.51 | Available to order | 1 |
| 43 | T2504547 Bracket, Harness, Hego Sensor | Bracket, Harness, Hego Sensor | 1 | $9.89 | Out of Stock | Notify Me |
| 44 | T2509978 Pad, Battery | Pad, Battery | 1 | $9.81 | Available to order | 1 |
| 45 | T3200552 Bolt, TX, M5 x 14, Enc | Bolt, TX, M5 x 14, Enc | 1 | $2.84 | Available to order | 1 |
| 46 | T2508990 Jacket, Connectivity Module | Jacket, Connectivity Module | 1 | $14.09 | Available to order | 1 |
