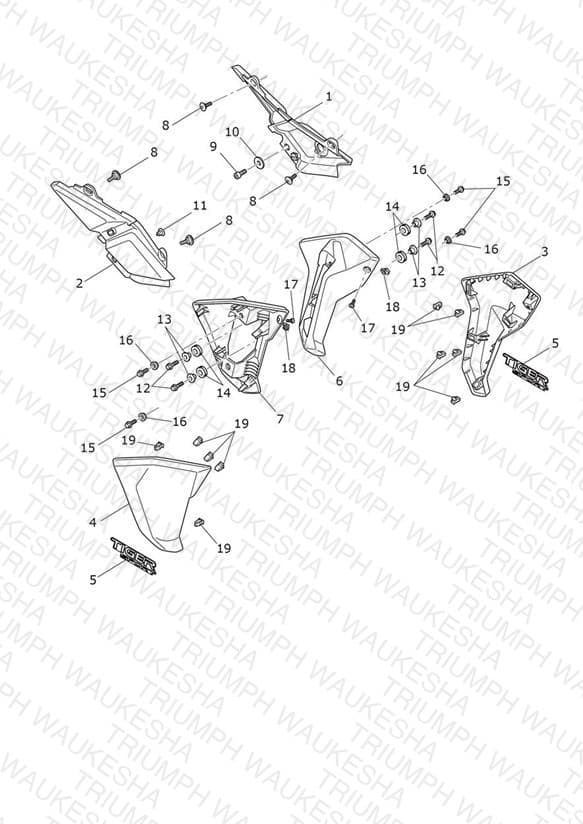

Side Panels
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310351 Side Panel, LH, Moulding | Side Panel, LH, Moulding | 1 | $77.64 | Available to order | 1 |
| 2 | T2310352 Side Panel, RH, Moulding | Side Panel, RH, Moulding | 1 | $77.64 | Available to order | 1 |
| 3 | T2312983-PM Cowl, Radiator, LH, Sapphire Black | Cowl, Radiator, LH, Sapphire Black Sapphire Black Bikes - Includes Decal, Item 5 | 1 | $62.16 | Available to order | 1 |
| 3 | T2312772-PM Cowl, Radiator, LH, Sapphire Black | Cowl, Radiator, LH, Sapphire Black Crystal White Bikes - Includes Decal, Item 5 | 1 | $62.16 | Backorder — Mid August 2026 | 1 |
| 3 | T2312774-PM Cowl, Radiator, LH, Sapphire Black | Cowl, Radiator, LH, Sapphire Black Carnival Red Bikes - Includes Decal, Item 5 | 1 | $62.16 | Available to order | 1 |
| 3 | T2312776-PM Cowl, Radiator, LH, Sapphire Black | Cowl, Radiator, LH, Sapphire Black Roulette Green Bikes - Includes Decal, Item 5 | 1 | $62.16 | Available to order | 1 |
| 4 | T2312984-PM Cowl, Radiator, RH, Sapphire Black | Cowl, Radiator, RH, Sapphire Black Sapphire Black Bikes - Includes Decal, Item 5 | 1 | $62.16 | Backorder — Late August 2026 | 1 |
| 4 | T2312773-PM Cowl, Radiator, RH, Sapphire Black | Cowl, Radiator, RH, Sapphire Black Crystal White Bikes - Includes Decal, Item 5 | 1 | $62.16 | Backorder — Late August 2026 | 1 |
| 4 | T2312775-PM Cowl, Radiator, RH, Sapphire Black | Cowl, Radiator, RH, Sapphire Black Carnival Red Bikes - Includes Decal, Item 5 | 1 | $62.16 | Backorder — Late August 2026 | 1 |
| 4 | T2312777-PM Cowl, Radiator, RH, Sapphire Black | Cowl, Radiator, RH, Sapphire Black Roulette Green Bikes - Includes Decal, Item 5 | 1 | $62.16 | Backorder — Late August 2026 | 1 |
| 5 | T2312760 Decal, Rad Cowl | Decal, Rad Cowl Fitted to Sapphire Black Bikes | 2 | $17.77 | Out of Stock | Notify Me |
| 5 | T2313256 Decal, Rad Cowl | Decal, Rad Cowl Fitted to Crystal White Bikes | 2 | $35.52 | Out of Stock | Notify Me |
| 5 | T2313257 Decal, Rad Cowl | Decal, Rad Cowl Fitted to Carnival Red Bikes | 2 | $35.52 | Out of Stock | Notify Me |
| 5 | T2313258 Decal, Rad Cowl | Decal, Rad Cowl Fitted to Rouletted Green Bikes | 2 | $35.52 | Available to order | 2 |
| 6 | T2310644 Infill, Radiator, LH, Moulding | Infill, Radiator, LH, Moulding | 1 | $96.97 | Available to order | 1 |
| 7 | T2310645 Infill, Radiator, RH, Moulding | Infill, Radiator, RH, Moulding | 1 | $96.97 | Available to order | 1 |
| 8 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 4 | $5.88 | Available to order | 4 |
| 9 | T3050158 Screw, Cap/Hd, M8 x 20, Enc | Screw, Cap/Hd, M8 x 20, Enc | 1 | $4.74 | Available to order | 1 |
| 10 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 1 | $2.74 | Available to order | 1 |
| 11 | T3450199 Button, Firtree, M8 x 15 | Button, Firtree, M8 x 15 | 1 | $1.40 | Available to order | 1 |
| 12 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 4 | $4.55 | Available to order | 4 |
| 13 | T3010111 Flanged Sleeve, M6, Black | Flanged Sleeve, M6, Black | 4 | $4.55 | Available to order | 4 |
| 14 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $2.85 | Available to order | 4 |
| 15 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 4 | $3.50 | Available to order | 4 |
| 16 | T3010059 Flanged Sleeve, M6 x 9 x 3.2 | Flanged Sleeve, M6 x 9 x 3.2 | 4 | $2.74 | Available to order | 4 |
| 17 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 2 | $5.67 | Available to order | 2 |
| 18 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 19 | T3700290 Clip, Panel, Bayonet | Clip, Panel, Bayonet | 10 | $2.37 | Available to order | 10 |
