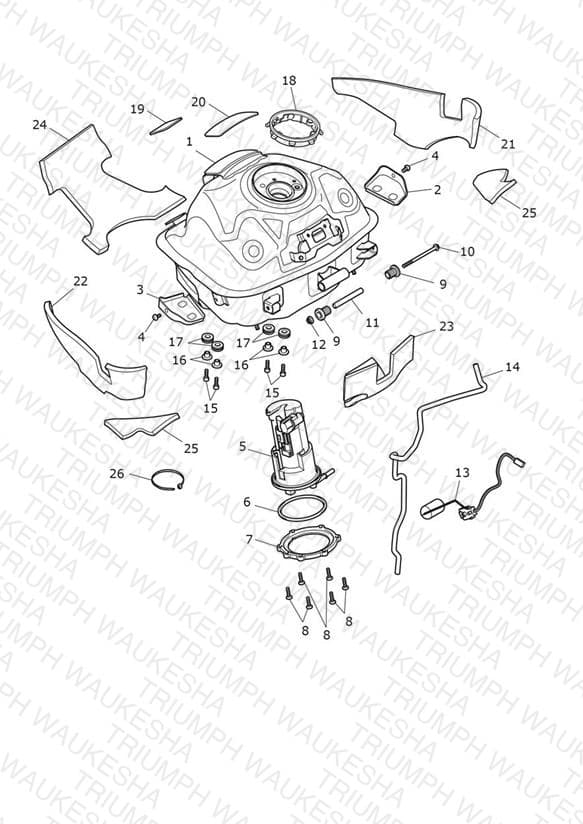

Fuel Tank, Pump and Fittings
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2404256 Fuel Tank & Bodywork Pads | Fuel Tank & Bodywork Pads Includes pads Item 19 & 20 - All Except CA, CN & US | 1 | $657.76 | Out of Stock | Notify Me |
| 1 | T2404257 Fuel Tank, Bodywork Pads & Heatpads | Fuel Tank, Bodywork Pads & Heatpads Includes pads Items 19 & 20, Heatpads items 21, 22, 23, 24 & 25 - CA, CN & US Only | 1 | $657.76 | Out of Stock | Notify Me |
| 2 | T2401928 Bracket, Fuel Tank, LH | Bracket, Fuel Tank, LH | 1 | $12.11 | Out of Stock | Notify Me |
| 3 | T2401927 Bracket, Fuel Tank, RH | Bracket, Fuel Tank, RH | 1 | $12.11 | Backorder — Late August 2026 | 1 |
| 4 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 2 | $0.97 | Available to order | 2 |
| 5 | T2408485 Fuel Pump | Fuel Pump | 1 | $535.60 | Available to order | 1 |
| 6 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 7 | T2400562 Location Plate, Pump | Location Plate, Pump | 1 | $37.09 | Available to order | 1 |
| 8 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 9 | T2400446 Rubber Bush | Rubber Bush | 2 | $3.24 | Out of Stock | Notify Me |
| 10 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Available to order | 1 |
| 11 | T2401401 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.65 | Backorder — Early August 2026 | 1 |
| 12 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 13 | T2405641 Level Sender, Fuel Tank | Level Sender, Fuel Tank | 1 | $73.76 | Out of Stock | Notify Me |
| 14 | T2402685 Hose Drain | Hose Drain | 1 | $54.46 | Out of Stock | Notify Me |
| 15 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 4 | $1.51 | Available to order | 4 |
| 16 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 17 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $2.85 | Available to order | 4 |
| 18 | T2405473 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.12 | Available to order | 1 |
| 19 | T2402959 Fuel Tank Pad, Evap, Lower | Fuel Tank Pad, Evap, Lower | 1 | $3.35 | Backorder — Mid August 2026 | 1 |
| 20 | T2402960 Fuel Tank Pad, Bodywork | Fuel Tank Pad, Bodywork | 1 | $5.02 | Available to order | 1 |
| 21 | T2404142 Heat Pad, Fuel Tank, LH | Heat Pad, Fuel Tank, LH CA, CN & US Only | 1 | $26.24 | Available to order | 1 |
| 22 | T2404143 Heat Pad, Fuel Tank, RH | Heat Pad, Fuel Tank, RH CA, CN & US Only | 1 | $24.48 | Out of Stock | Notify Me |
| 23 | T2404144 Heat Pad, Fuel Tank, Front | Heat Pad, Fuel Tank, Front CA, CN & US Only | 1 | $27.95 | Available to order | 1 |
| 24 | T2404145 Heat Pad, Fuel Tank, Rear | Heat Pad, Fuel Tank, Rear CA, CN & US Only | 1 | $38.52 | Available to order | 1 |
| 25 | T2404146 Heat Pad, Fuel Tank, Corner | Heat Pad, Fuel Tank, Corner CA, CN & US Only | 2 | $7.66 | Out of Stock | Notify Me |
| 26 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 1 | $0.95 | Available to order | 1 |
