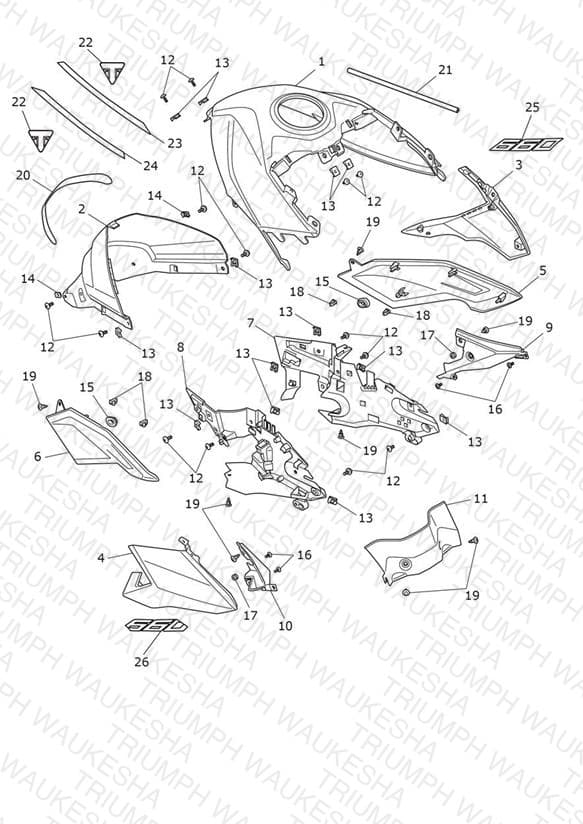

Fuel Tank Bodywork - Sapphire Black Tanks
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2312790-PM Fuel Tank Upper, Sapphire Black | Fuel Tank Upper, Sapphire Black Includes Decals, Items 22, 23 & 24 | 1 | $320.66 | Available to order | 1 |
| 2 | T2311716 Panel, Fuel Tank, Lower | Panel, Fuel Tank, Lower | 1 | $72.55 | Available to order | 1 |
| 3 | T2312780-PM Fairing, Upper, LH, Sapphire Black | Fairing, Upper, LH, Sapphire Black Includes Decal Item 25 | 1 | $79.92 | Backorder — Mid August 2026 | 1 |
| 4 | T2312781-PM Fairing, Upper, RH, Sapphire Black | Fairing, Upper, RH, Sapphire Black Includes Decal Item 26 | 1 | $79.92 | Backorder — Late August 2026 | 1 |
| 5 | T2311237 Side Panel, Fuel Tank, LH | Side Panel, Fuel Tank, LH | 1 | $44.92 | Available to order | 1 |
| 6 | T2311238 Side Panel, Fuel Tank, RH | Side Panel, Fuel Tank, RH | 1 | $44.92 | Available to order | 1 |
| 7 | T2311761 Infill, Upper Fairing, LH | Infill, Upper Fairing, LH | 1 | $47.83 | Available to order | 1 |
| 8 | T2311762 Infill, Upper Fairing, RH | Infill, Upper Fairing, RH | 1 | $47.83 | Available to order | 1 |
| 9 | T2310603 Fairing Infill, LH | Fairing Infill, LH | 1 | $16.27 | Available to order | 1 |
| 10 | T2310604 Fairing Infill, RH | Fairing Infill, RH | 1 | $16.27 | Available to order | 1 |
| 11 | T2310981 Infill Panel, Fuel Tank, Centre | Infill Panel, Fuel Tank, Centre | 1 | $16.08 | Available to order | 1 |
| 12 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 14 | $4.92 | Available to order | 14 |
| 13 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 12 | $2.48 | Available to order | 12 |
| 14 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 15 | T3020059 Grommet, Bodywork | Grommet, Bodywork | 2 | $2.55 | Backorder — Late August 2026 | 2 |
| 16 | T3331433 Screw, S/Tap, Pan TX, 4 x 11, PT | Screw, S/Tap, Pan TX, 4 x 11, PT | 4 | $1.78 | Unavailable | View Details |
| 17 | T3020131 Grommet, 9 x 2 x 6 | Grommet, 9 x 2 x 6 | 2 | $2.00 | Available to order | 2 |
| 18 | T3700290 Clip, Panel, Bayonet | Clip, Panel, Bayonet | 4 | $2.37 | Available to order | 4 |
| 19 | T3701150 Plastic Rivet, Push Release | Plastic Rivet, Push Release | 8 | $0.97 | Available to order | 8 |
| 20 | T2312220 Protective Film, Fuel Tank | Protective Film, Fuel Tank | 1 | $13.76 | Available to order | 1 |
| 21 | T2402957 Seam Protector, Fuel Tank | Seam Protector, Fuel Tank | 1 | $4.89 | Available to order | 1 |
| 22 | T2312399 Decal, Tank Badge | Decal, Tank Badge | 2 | $8.56 | Available to order | 2 |
| 23 | T2312785 Decal, Fuel Tank, LH, Red/White | Decal, Fuel Tank, LH, Red/White | 1 | $17.77 | Available to order | 1 |
| 24 | T2312786 Decal, Fuel Tank, RH, Red/White | Decal, Fuel Tank, RH, Red/White | 1 | $17.77 | Out of Stock | Notify Me |
| 25 | T2312762 Decal, Fairing Upper, LH, White | Decal, Fairing Upper, LH, White | 1 | $26.65 | Out of Stock | Notify Me |
| 26 | T2312763 Decal, Fairing Upper, RH, White | Decal, Fairing Upper, RH, White | 1 | $26.65 | Out of Stock | Notify Me |
