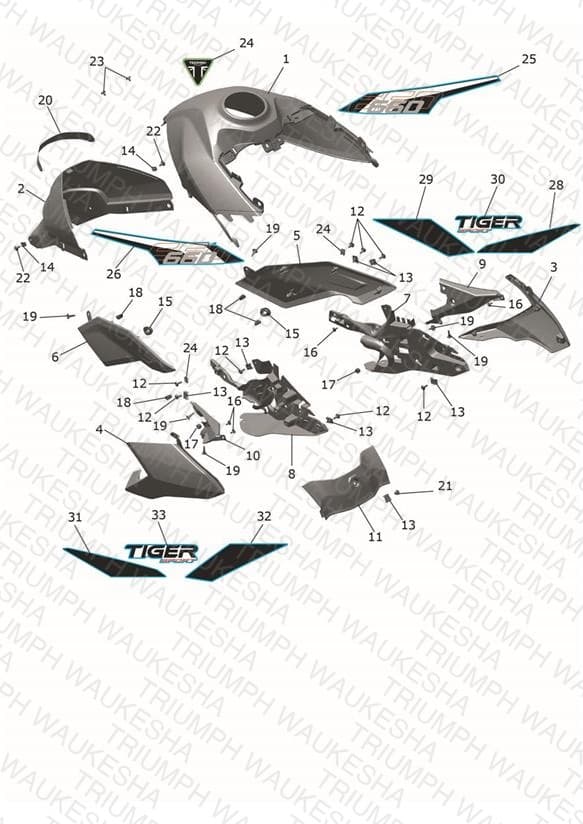

Fuel Tank Bodywork
Parts (42)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2312095-KI Fuel Tank Upper, Interstellar Blue | Fuel Tank Upper, Interstellar Blue Includes Decals, Items 25, 26, 27 | 1 | $262.21 | Backorder — Early August 2026 | 1 |
| 1 | T2312095-MP Fuel Tank Upper, Silver Ice | Fuel Tank Upper, Silver Ice Includes Decals, Items 25, 26, 27 | 1 | $262.21 | Backorder — Late August 2026 | 1 |
| 1 | T2312095-NK Fuel Tank Upper, Pure White | Fuel Tank Upper, Pure White Includes Decals, Item 25 | 1 | $262.21 | Backorder — Late August 2026 | 1 |
| 2 | T2311716 Panel, Fuel Tank, Lower | Panel, Fuel Tank, Lower | 1 | $72.55 | Available to order | 1 |
| 3 | T2310375-KI Fairing, Upper, LH, Interstellar Blue | Fairing, Upper, LH, Interstellar Blue Includes Decal Items 28 & 29 | 1 | $72.31 | Out of Stock | Notify Me |
| 3 | T2310375-MP Fairing, Upper, LH, Silver Ice | Fairing, Upper, LH, Silver Ice Includes Decal Items 28 & 29 | 1 | $72.31 | Backorder — Late August 2026 | 1 |
| 3 | T2310375-NK Fairing Upper, LH, Pure White | Fairing Upper, LH, Pure White Includes Decal Item 30 | 1 | $72.31 | Backorder — Late August 2026 | 1 |
| 4 | T2310376-KI Fairing, Upper, RH, Interstellar Blue | Fairing, Upper, RH, Interstellar Blue Includes Decal Items 31 & 32 | 1 | $72.31 | Out of Stock | Notify Me |
| 4 | T2310376-MP Fairing, Upper, RH, Silver Ice | Fairing, Upper, RH, Silver Ice Includes Decal Items 31 & 32 | 1 | $72.31 | Backorder — Late August 2026 | 1 |
| 4 | T2310376-NK Fairing, Upper, RH, Pure White | Fairing, Upper, RH, Pure White Includes Decal Item 33 | 1 | $72.31 | Backorder — Late August 2026 | 1 |
| 5 | T2311237 Side Panel, Fuel Tank, LH | Side Panel, Fuel Tank, LH | 1 | $44.92 | Available to order | 1 |
| 6 | T2311238 Side Panel, Fuel Tank, RH | Side Panel, Fuel Tank, RH | 1 | $44.92 | Available to order | 1 |
| 7 | T2311497 Infill, Upper Fairing, LH | Infill, Upper Fairing, LH | 1 | $35.52 | Out of Stock | Notify Me |
| 8 | T2311498 Infill, Upper Fairing, RH | Infill, Upper Fairing, RH | 1 | $35.52 | Backorder — Late August 2026 | 1 |
| 9 | T2310603 Fairing Infill, LH | Fairing Infill, LH | 1 | $16.27 | Available to order | 1 |
| 10 | T2310604 Fairing Infill, RH | Fairing Infill, RH | 1 | $16.27 | Available to order | 1 |
| 11 | T2311560 Infill, Fuel Tank, Centre | Infill, Fuel Tank, Centre | 1 | $62.16 | Out of Stock | Notify Me |
| 12 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 8 | $4.92 | Available to order | 8 |
| 13 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 16 | $2.48 | Available to order | 16 |
| 14 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 15 | T3020059 Grommet, Bodywork | Grommet, Bodywork | 2 | $2.55 | Backorder — Late August 2026 | 2 |
| 16 | T3331433 Screw, S/Tap, Pan TX, 4 x 11, PT | Screw, S/Tap, Pan TX, 4 x 11, PT | 4 | $1.78 | Unavailable | View Details |
| 17 | T3020131 Grommet, 9 x 2 x 6 | Grommet, 9 x 2 x 6 | 2 | $2.00 | Available to order | 2 |
| 18 | T3700290 Clip, Panel, Bayonet | Clip, Panel, Bayonet | 4 | $2.37 | Available to order | 4 |
| 19 | T3701150 Plastic Rivet, Push Release | Plastic Rivet, Push Release | 8 | $0.97 | Available to order | 8 |
| 20 | T2312220 Protective Film, Fuel Tank | Protective Film, Fuel Tank | 1 | $13.76 | Available to order | 1 |
| 21 | T3330958 Screw, But/Hd, M5 x 10, Blk, Enc | Screw, But/Hd, M5 x 10, Blk, Enc | 1 | $0.97 | Available to order | 1 |
| 22 | T3330964 Screw, Btn Hd, M5 x 12, Slv | Screw, Btn Hd, M5 x 12, Slv | 2 | $0.89 | Out of Stock | Notify Me |
| 23 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 2 | $3.90 | Available to order | 2 |
| 24 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $4.55 | Available to order | 2 |
| 25 | T2404492 Decal 2, Fuel Tank | Decal 2, Fuel Tank Fitted to Blue Tanks | 1 | $33.13 | Backorder — Late August 2026 | 1 |
| 25 | T2404490 Decal 2, Fuel Tank | Decal 2, Fuel Tank Fitted to Silver Tanks | 1 | $33.13 | Backorder — Late August 2026 | 1 |
| 26 | T2404491 Decal 2, Fuel Tank | Decal 2, Fuel Tank Fitted to Silver Tanks | 1 | $33.13 | Out of Stock | Notify Me |
| 26 | T2404493 Decal 2, Fuel Tank | Decal 2, Fuel Tank Fitted to Blue Tanks | 1 | $33.13 | Out of Stock | Notify Me |
| 27 | T2318544 Decal, Tank Badge | Decal, Tank Badge Fitted to Blue & Silver Tanks | 2 | $17.25 | Out of Stock | Notify Me |
| 27 | T2310473 Decal, Tank Badge | Decal, Tank Badge Fitted to White Tanks | 2 | $8.18 | Available to order | 2 |
| 28 | T2404496 Decal 3, Fuel Tank, LH | Decal 3, Fuel Tank, LH Fitted to Blue & Silver Tanks | 1 | $18.08 | Backorder — Late August 2026 | 1 |
| 29 | T2401713 Decal 4, Fuel Tank, LH | Decal 4, Fuel Tank, LH Fitted to Blue & Silver Tanks | 1 | $18.08 | Backorder — Late August 2026 | 1 |
| 30 | T2404488 Decal 1, Fuel Tank, LH | Decal 1, Fuel Tank, LH Fitted to White Tanks | 1 | $9.03 | Out of Stock | Notify Me |
| 31 | T2404495 Decal 3, Fuel Tank, RH | Decal 3, Fuel Tank, RH Fitted to Blue & Silver Tanks | 1 | $18.08 | Out of Stock | Notify Me |
| 32 | T2404498 Decal 4, Fuel Tank, RH | Decal 4, Fuel Tank, RH Fitted to Blue & Silver Tanks | 1 | $18.08 | Out of Stock | Notify Me |
| 33 | T2404487 Decal 1, Fuel Tank, RH | Decal 1, Fuel Tank, RH Fitted to White Tanks | 1 | $9.03 | Out of Stock | Notify Me |
