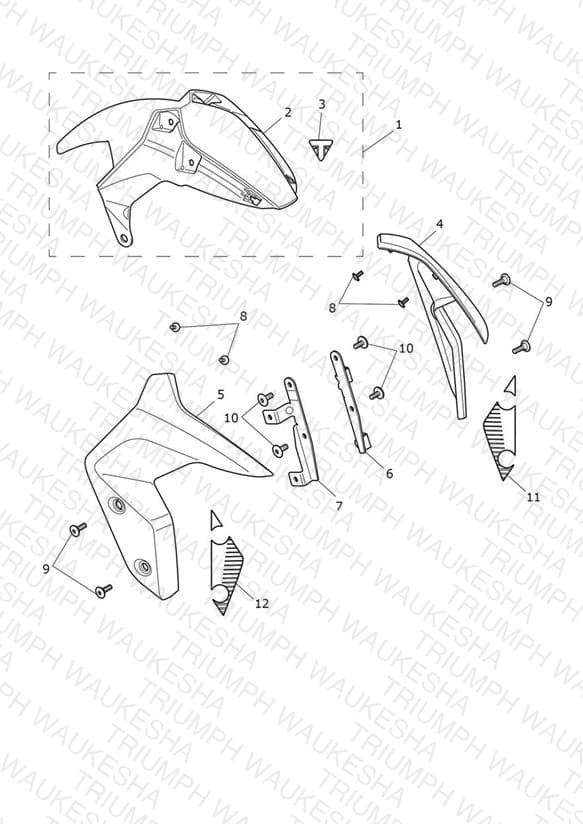

Front Mudguard
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310203 Front Mudguard Assy, Centre | Front Mudguard Assy, Centre | 1 | $40.88 | Backorder — Late August 2026 | 1 |
| 2 | T2310411 Mudguard Centre | Mudguard Centre | 1 | $48.74 | Available to order | 1 |
| 3 | T2314079 Decal, Front Mudguard, Centre, Matt Silver | Decal, Front Mudguard, Centre, Matt Silver | 1 | $40.93 | Out of Stock | Notify Me |
| 4 | T2310433-PM Front Mudguard, LH, Sapphire Black | Front Mudguard, LH, Sapphire Black Silver Ice/Intense Orange & Interstellar Blue/Mineral Grey Bikes | 1 | $137.22 | Available to order | 1 |
| 4 | T2310433-PG Front Mudguard, LH, Jet Black | Front Mudguard, LH, Jet Black Pure White Bikes | 1 | $146.24 | Backorder — Late August 2026 | 1 |
| 5 | T2310434-PM Front Mudguard, RH, Sapphire Black | Front Mudguard, RH, Sapphire Black Silver Ice/Intense Orange & Interstellar Blue/Mineral Grey Bikes | 1 | $137.22 | Out of Stock | Notify Me |
| 5 | T2310434-PG Front Mudguard, RH, Jet Black | Front Mudguard, RH, Jet Black Pure White Bikes | 1 | $146.24 | Available to order | 1 |
| 6 | T2045171 Bracket, Front Mudguard | Bracket, Front Mudguard | 1 | $15.20 | Available to order | 1 |
| 7 | T2045172 Bracket, Front Mudguard, RH | Bracket, Front Mudguard, RH | 1 | $15.20 | Available to order | 1 |
| 8 | T3331433 Screw, S/Tap, Pan TX, 4 x 11, PT | Screw, S/Tap, Pan TX, 4 x 11, PT | 4 | $1.78 | Unavailable | View Details |
| 9 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 4 | $5.88 | Available to order | 4 |
| 10 | T3331010 Bolt, But/Hd, Skt, M6 x 16, S/S | Bolt, But/Hd, Skt, M6 x 16, S/S | 4 | $4.30 | Available to order | 4 |
