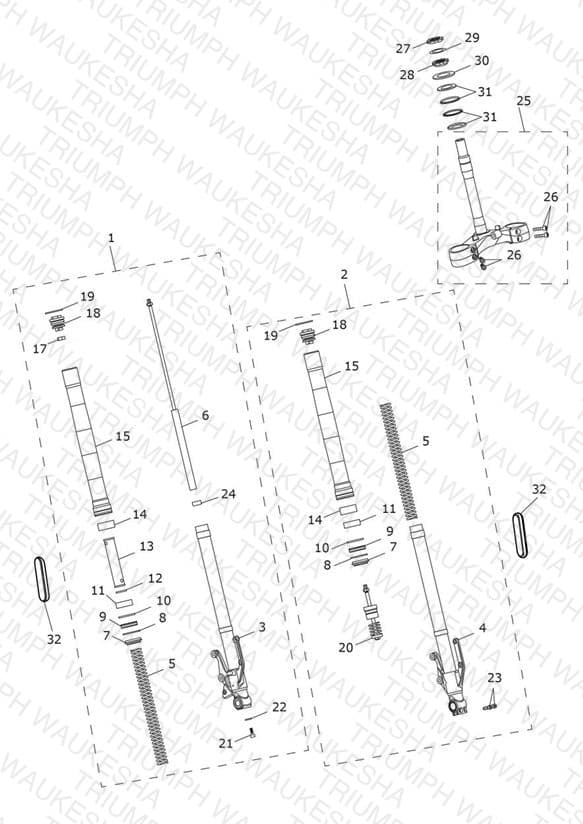

Front Forks & Lower Yoke Assy
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2043144 Fork Leg Assembly, RH | Fork Leg Assembly, RH | 1 | $830.34 | Available to order | 1 |
| 2 | T2043143 Fork Leg Assembly, LH | Fork Leg Assembly, LH | 1 | $830.34 | Available to order | 1 |
| 3 | T2043878 RH Slide Pipe, P/Comp | RH Slide Pipe, P/Comp | 1 | $553.37 | Backorder — Late August 2026 | 1 |
| 4 | T2043871 LH Slide Pipe, P/Comp | LH Slide Pipe, P/Comp | 1 | $553.37 | Available to order | 1 |
| 5 | T2043874 Spring | Spring | 2 | $97.11 | Available to order | 2 |
| 6 | T2043879 Damper Comp | Damper Comp | 1 | $564.03 | Available to order | 1 |
| 7 | T2049866 Dust Seal | Dust Seal | 2 | $20.99 | Available to order | 2 |
| 8 | T2046248 Stop Ring | Stop Ring | 2 | $6.83 | Available to order | 2 |
| 9 | T2049868 Oil Seal | Oil Seal | 2 | $21.52 | Available to order | 2 |
| 10 | T2049869 Seal Spacer | Seal Spacer | 2 | $5.98 | Available to order | 2 |
| 11 | T2049870 Guide Bush | Guide Bush | 2 | $14.89 | Available to order | 2 |
| 12 | T2049884 Spg Joint | Spg Joint | 1 | $4.01 | Available to order | 1 |
| 13 | T2043880 Spg Collar | Spg Collar | 1 | $36.99 | Backorder — Late August 2026 | 1 |
| 14 | T2049872 Slide Bush | Slide Bush | 2 | $15.81 | Backorder — Early September 2026 | 2 |
| 15 | T2043873 Outer Tube | Outer Tube | 2 | $496.05 | Backorder — Late August 2026 | 2 |
| 17 | T2049894 Hexagon Nut | Hexagon Nut | 1 | $13.45 | Out of Stock | Notify Me |
| 18 | T2049875 Fork Bolt P/Comp | Fork Bolt P/Comp | 2 | $57.98 | Backorder — Late August 2026 | 2 |
| 19 | T2049874 O Ring | O Ring | 2 | $4.12 | Available to order | 2 |
| 20 | T2043876 Joint, Rod Comp | Joint, Rod Comp | 1 | $90.13 | Out of Stock | Notify Me |
| 21 | T2046164 Capscrew, Oil Lock | Capscrew, Oil Lock | 1 | $9.10 | Available to order | 1 |
| 22 | T2042907 Sealing washer | Sealing washer | 1 | $1.13 | Available to order | 1 |
| 23 | T2046146 Hex Socket Bolt | Hex Socket Bolt | 2 | $5.42 | Backorder — Late September 2026 | 2 |
| 24 | T2049882 Centering Plate | Centering Plate | 1 | $14.16 | Backorder — Late August 2026 | 1 |
| 25 | T2045758 Lower Yoke Assembly | Lower Yoke Assembly | 1 | $337.10 | Out of Stock | Notify Me |
| 26 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 4 | $4.74 | Available to order | 4 |
| 27 | T2040304 Locknut, M30 | Locknut, M30 | 1 | $20.60 | Available to order | 1 |
| 28 | T2044183 Washer, Headstock | Washer, Headstock | 1 | $8.30 | Available to order | 1 |
| 29 | T2040301 Adjuster Nut, M30, Lower | Adjuster Nut, M30, Lower | 1 | $28.50 | Available to order | 1 |
| 30 | T2043869 Cover, Headstock Bearing, Black | Cover, Headstock Bearing, Black | 1 | $10.47 | Available to order | 1 |
| 31 | T3600234 Dust Seal, Dia 55 | Dust Seal, Dia 55 | 2 | $8.34 | Available to order | 2 |
| 32 | T2700332 Reflector, Amber, Oval | Reflector, Amber, Oval | 2 | $6.39 | Available to order | 2 |
| 33 | T2048754 Label | Label Not Illustrated - 1 included in each Fork Leg Assembly | 2 | $2.22 | Out of Stock | Notify Me |
