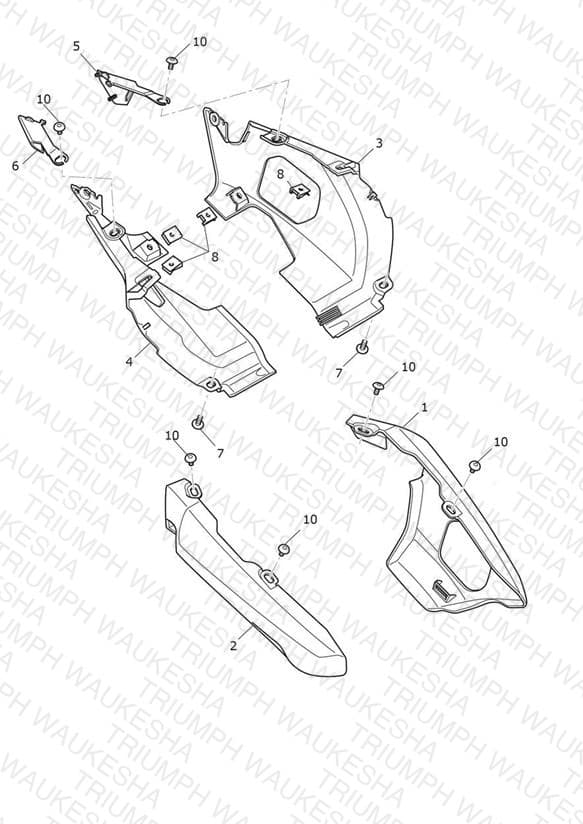

Rear Bodywork
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310612-PM Rear Panel, LH, Sapphire Black | Rear Panel, LH, Sapphire Black Interstellar Blue/Mineral Grey Bikes | 1 | $135.97 | Available to order | 1 |
| 1 | T2310612-PG Rear Panel, LH, Jet Black | Rear Panel, LH, Jet Black Pure White Bikes | 1 | $146.24 | Backorder — Late August 2026 | 1 |
| 1 | T2310612-MP Rear Panel, LH, Silver Ice | Rear Panel, LH, Silver Ice Silver Ice/Intense Orange Bikes | 1 | $96.41 | Backorder — Late August 2026 | 1 |
| 2 | T2310613-PM Rear Panel, RH, Sapphire Black | Rear Panel, RH, Sapphire Black Interstellar Blue/Mineral Grey Bikes | 1 | $135.97 | Available to order | 1 |
| 2 | T2310613-PG Rear Panel, RH, Jet Black | Rear Panel, RH, Jet Black Pure White Bikes | 1 | $146.24 | Available to order | 1 |
| 2 | T2310613-MP Rear Panel, RH, Silver Ice | Rear Panel, RH, Silver Ice Silver Ice/Intense Orange Bikes | 1 | $96.41 | Backorder — Late August 2026 | 1 |
| 3 | T2310607 Undertray, Moulding, LH | Undertray, Moulding, LH | 1 | $93.14 | Available to order | 1 |
| 4 | T2310619 Undertray, Moulding, RH | Undertray, Moulding, RH | 1 | $93.14 | Available to order | 1 |
| 5 | T2310616 Infill, Undertray, LH | Infill, Undertray, LH | 1 | $10.21 | Available to order | 1 |
| 6 | T2310617 Infill, Undertray, RH | Infill, Undertray, RH | 1 | $10.21 | Available to order | 1 |
| 7 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 2 | $5.02 | Available to order | 2 |
| 8 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 4 | $2.48 | Available to order | 4 |
| 10 | T3331066 Bolt, But/Hd, M5 x 17, Shld, Blk | Bolt, But/Hd, M5 x 17, Shld, Blk | 6 | $8.46 | Available to order | 6 |
