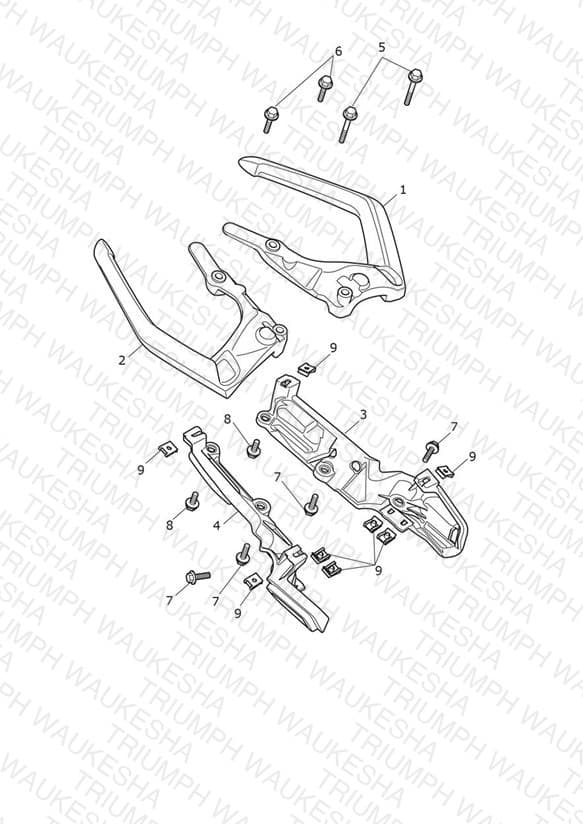

Grab Handles
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2350341 Grab Handle, LH | Grab Handle, LH | 1 | $112.13 | Available to order | 1 |
| 2 | T2350342 Grab Handle, RH | Grab Handle, RH | 1 | $112.13 | Backorder — Late August 2026 | 1 |
| 3 | T2350731 Pannier Mount, LH | Pannier Mount, LH | 1 | $49.00 | Available to order | 1 |
| 4 | T2350732 Pannier Mount, RH | Pannier Mount, RH | 1 | $49.00 | Available to order | 1 |
| 5 | T3200820 Bolt, HHF, M8 x 55, Slv | Bolt, HHF, M8 x 55, Slv | 2 | $2.70 | Available to order | 2 |
| 6 | T3202319 Bolt, HHF, M8 x 35, Slv | Bolt, HHF, M8 x 35, Slv | 2 | $2.63 | Available to order | 2 |
| 7 | T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | 4 | $1.62 | Available to order | 4 |
| 8 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 2 | $3.50 | Available to order | 2 |
| 9 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 8 | $2.48 | Available to order | 8 |
