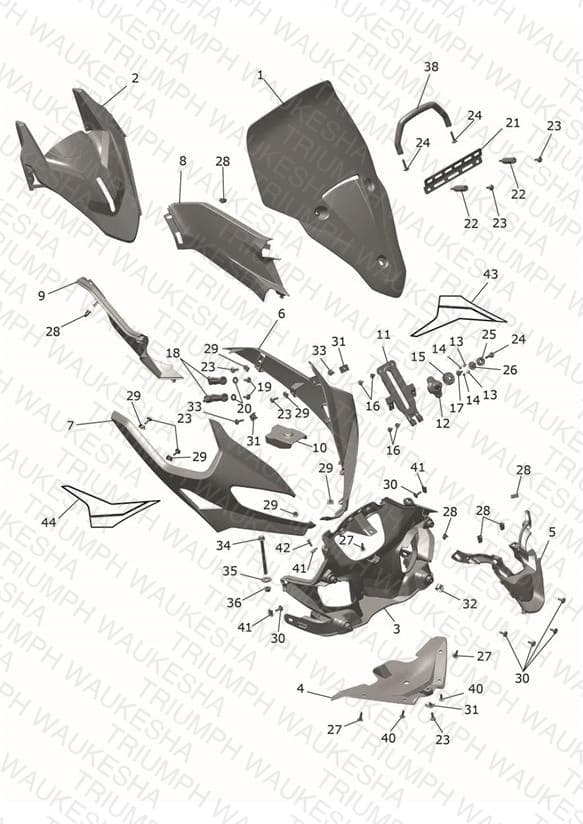

Cockpit
Parts (47)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2313351 Screen, Moulding | Screen, Moulding All Except CA & US | 1 | $213.77 | Available to order | 1 |
| 1 | T2313352 Screen, Moulding, Coated | Screen, Moulding, Coated CA & US Only | 1 | $296.40 | Available to order | 1 |
| 2 | T2310380 Screen Support | Screen Support | 1 | $72.11 | Available to order | 1 |
| 3 | T2310462 Front Subframe Assembly | Front Subframe Assembly | 1 | $116.26 | Available to order | 1 |
| 4 | T2319091 Moulding, Chin, Cockpit | Moulding, Chin, Cockpit | 1 | $16.18 | Available to order | 1 |
| 5 | T2310277 Panel, Finisher, Headlight | Panel, Finisher, Headlight | 1 | $24.35 | Available to order | 1 |
| 6 | T2310360-KI Cockpit, LH, Interstellar Blue | Cockpit, LH, Interstellar Blue | 1 | $191.47 | Out of Stock | Notify Me |
| 6 | T2310360-NK Cockpit, LH, Pure White | Cockpit, LH, Pure White Includes Decal, item 41 | 1 | $191.47 | Out of Stock | Notify Me |
| 6 | T2310360-MP Cockpit, LH, Silver Ice | Cockpit, LH, Silver Ice | 1 | $191.47 | Backorder — Late September 2026 | 1 |
| 7 | T2310361-KI Cockpit, RH, Interstellar Blue | Cockpit, RH, Interstellar Blue | 1 | $191.47 | Out of Stock | Notify Me |
| 7 | T2310361-NK Cockpit, RH, Pure White | Cockpit, RH, Pure White Includes Decal, item 41 | 1 | $191.47 | Backorder — Late September 2026 | 1 |
| 7 | T2310361-MP Cockpit, RH, Silver Ice | Cockpit, RH, Silver Ice | 1 | $191.47 | Backorder — Late September 2026 | 1 |
| 8 | T2310292 Infill, Cockpit, LH | Infill, Cockpit, LH | 1 | $30.60 | Available to order | 1 |
| 9 | T2310293 Infill, Cockpit, RH | Infill, Cockpit, RH | 1 | $30.60 | Available to order | 1 |
| 10 | T2312204 Cover, Headstock | Cover, Headstock | 1 | $9.45 | Out of Stock | Notify Me |
| 11 | T2310344 Mount Panel, Cockpit | Mount Panel, Cockpit | 1 | $13.98 | Available to order | 1 |
| 12 | T2310386 Adjuster, Screen, Block | Adjuster, Screen, Block | 1 | $16.68 | Available to order | 1 |
| 13 | T2310439 Spring, Screen, Wire | Spring, Screen, Wire | 2 | $3.67 | Available to order | 2 |
| 14 | T2081675 Detent Ball | Detent Ball | 2 | $2.04 | Available to order | 2 |
| 15 | T2315070 Gear, Detent, 28T | Gear, Detent, 28T | 1 | $5.95 | Available to order | 1 |
| 16 | T3331433 Screw, S/Tap, Pan TX, 4 x 11, PT | Screw, S/Tap, Pan TX, 4 x 11, PT | 4 | $2.05 | Unavailable | View Details |
| 17 | T3331076 Bolt, But/Hd, M5 x 16, Shld, Enc | Bolt, But/Hd, M5 x 16, Shld, Enc | 1 | $7.38 | Available to order | 1 |
| 18 | T2310279 Mount Arm, Screen | Mount Arm, Screen | 2 | $17.56 | Available to order | 2 |
| 19 | T3331062 Bolt, But/Hd, M5 x 16, Shld, Slv | Bolt, But/Hd, M5 x 16, Shld, Slv | 2 | $7.38 | Available to order | 2 |
| 20 | T3552841 Washer, Rubber, 7 x 16 | Washer, Rubber, 7 x 16 | 2 | $0.51 | Available to order | 2 |
| 21 | T2310485 Number Plate Bracket | Number Plate Bracket ID Only | 1 | $40.73 | Backorder — Mid October 2026 | 1 |
| 22 | T2310487 Spacer | Spacer ID Only | 2 | $14.28 | Available to order | 2 |
| 23 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 7 | $7.18 | Available to order | 7 |
| 24 | T3330429 Screw, Skt Hd, M5 x 25, SS | Screw, Skt Hd, M5 x 25, SS | 3 | $2.35 | Backorder — Mid October 2026 | 3 |
| 25 | T3020050 Grommet | Grommet | 1 | $5.47 | Available to order | 1 |
| 26 | T3010161 Flanged Sleeve, 5.3 x 10 x 9 | Flanged Sleeve, 5.3 x 10 x 9 | 1 | $8.54 | Available to order | 1 |
| 27 | T3701150 Plastic Rivet, Push Release | Plastic Rivet, Push Release | 3 | $1.04 | Available to order | 3 |
| 28 | T3700290 Clip, Panel, Bayonet | Clip, Panel, Bayonet | 6 | $2.53 | Available to order | 6 |
| 29 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 6 | $3.61 | Available to order | 6 |
| 30 | T3331063 Bolt, But/Hd, M5 x 17, Slv | Bolt, But/Hd, M5 x 17, Slv | 6 | $2.31 | Available to order | 6 |
| 31 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 3 | $2.63 | Available to order | 3 |
| 32 | T3012550 Clip, Edge, Cable, Flanged | Clip, Edge, Cable, Flanged | 1 | $3.51 | Backorder — Late September 2026 | 1 |
| 33 | T3330952 Screw, Butn/Hd, M5 x 20, Slv | Screw, Butn/Hd, M5 x 20, Slv | 2 | $2.63 | Available to order | 2 |
| 34 | T3202327 Bolt, HHF, M8 x 95, Slv | Bolt, HHF, M8 x 95, Slv | 1 | $3.94 | Out of Stock | Notify Me |
| 35 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.91 | Available to order | 2 |
| 36 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 1 | $2.61 | Available to order | 1 |
| 38 | T2311662 Handle, Screen, Moulding | Handle, Screen, Moulding | 1 | $25.13 | Available to order | 1 |
| 40 | T3331066 Bolt, But/Hd, M5 x 17, Shld, Blk | Bolt, But/Hd, M5 x 17, Shld, Blk | 2 | $9.00 | Available to order | 2 |
| 41 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 3 | $4.84 | Available to order | 3 |
| 42 | T3200552 Bolt, TX, M5 x 14, Enc | Bolt, TX, M5 x 14, Enc | 1 | $2.84 | Available to order | 1 |
| 43 | T2315367 Decal 1, Cockpit, LHS | Decal 1, Cockpit, LHS Fitted to White Panels | 1 | $15.62 | Out of Stock | Notify Me |
| 44 | T2315366 Decal 1, Cockpit, RHS | Decal 1, Cockpit, RHS Fitted to White Panels | 1 | $15.62 | Backorder — Late September 2026 | 1 |
