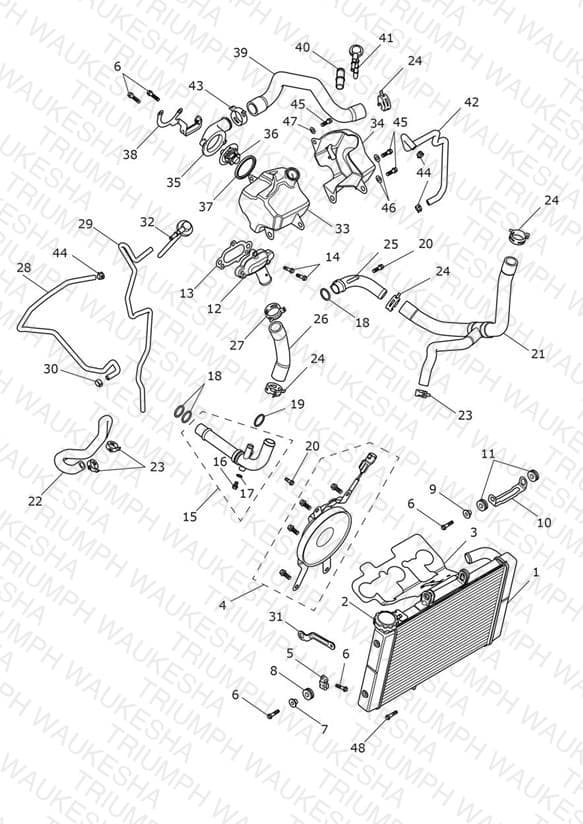

Cooling System
Parts (51)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2106401 Radiator Assembly | Radiator Assembly Includes Cap | 1 | $856.33 | Available to order | 1 |
| 2 | T2101623 Cap Assy | Cap Assy Included in Radiator Assy | 1 | $19.13 | Available to order | 1 |
| 3 | T2107511 Air Deflector | Air Deflector | 1 | $31.11 | Available to order | 1 |
| 4 | T2106302 Fan Assy | Fan Assy | 1 | $394.27 | Available to order | 1 |
| 5 | T2100168 Bracket, Radiator, Lower, Rear | Bracket, Radiator, Lower, Rear | 1 | $8.53 | Available to order | 1 |
| 6 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 5 | $2.46 | Available to order | 5 |
| 7 | T3010144 Flanged Sleeve, M6 x 9.5 x 10.5 | Flanged Sleeve, M6 x 9.5 x 10.5 | 1 | $3.77 | Available to order | 1 |
| 8 | T3020033 Grommet; 12 x 2 x 9.6 | Grommet; 12 x 2 x 9.6 | 1 | $4.45 | Available to order | 1 |
| 9 | T3010159 Flanged Sleeve, 6.4 x 9 x 8.5 | Flanged Sleeve, 6.4 x 9 x 8.5 | 1 | $5.78 | Out of Stock | Notify Me |
| 10 | T2107512 Air Deflector Retainer Bracket | Air Deflector Retainer Bracket | 1 | $10.47 | Available to order | 1 |
| 11 | T3020188 Grommet, 16.5 x 3 x 9.5 | Grommet, 16.5 x 3 x 9.5 | 2 | $1.91 | Out of Stock | Notify Me |
| 12 | T2100224 Cover, Water Inlet | Cover, Water Inlet | 1 | $31.39 | Available to order | 1 |
| 13 | T2100205 Gasket, Water Inlet | Gasket, Water Inlet | 1 | $3.24 | Available to order | 1 |
| 14 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 15 | T2107013 Pipe, Water Pump Outlet | Pipe, Water Pump Outlet | 1 | $42.57 | Available to order | 1 |
| 16 | T3200444 Bolt, M6 x 10 | Bolt, M6 x 10 | 1 | $12.16 | Available to order | 1 |
| 17 | T3551111 Copper Washer, M6 x 12 | Copper Washer, M6 x 12 | 1 | $2.48 | Available to order | 1 |
| 18 | T3600124 O Ring, ID 21.5 x 3 | O Ring, ID 21.5 x 3 | 3 | $3.39 | Available to order | 3 |
| 19 | T3600190 O Ring, 24 x 2.5 | O Ring, 24 x 2.5 | 1 | $1.13 | Available to order | 1 |
| 20 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 2 | $4.01 | Out of Stock | Notify Me |
| 21 | T2107503 Hose, T-Piece | Hose, T-Piece | 1 | $33.93 | Available to order | 1 |
| 22 | T2107508 Hose, Water Inlet, Heat Ex | Hose, Water Inlet, Heat Ex | 1 | $10.34 | Available to order | 1 |
| 23 | T3706211 Clamp, Constant Tension, Dia 19 | Clamp, Constant Tension, Dia 19 | 3 | $13.99 | Available to order | 3 |
| 24 | T3706214 Clamp, Constant Tension, Dia 29 | Clamp, Constant Tension, Dia 29 | 4 | $13.99 | Available to order | 4 |
| 25 | T2107012 Pipe, Water Pump Inlet | Pipe, Water Pump Inlet | 1 | $42.57 | Available to order | 1 |
| 26 | T2105201 Hose, Water Pump, Outlet | Hose, Water Pump, Outlet | 1 | $33.36 | Available to order | 1 |
| 27 | T3706215 Clamp, Constant Tension, Dia 30 | Clamp, Constant Tension, Dia 30 | 1 | $13.99 | Available to order | 1 |
| 28 | T2107550 Hose, Rad to Expansion Tank | Hose, Rad to Expansion Tank | 1 | $9.43 | Available to order | 1 |
| 29 | T2107567 Hose, Expansion Tank Overflow | Hose, Expansion Tank Overflow | 1 | $8.53 | Available to order | 1 |
| 30 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
| 31 | T2107509 Radiator Bracket | Radiator Bracket | 1 | $15.46 | Available to order | 1 |
| 32 | T2109006 Cap, Expansion Tank, Overflow | Cap, Expansion Tank, Overflow | 1 | $14.26 | Available to order | 1 |
| 33 | T2107575 Expansion Tank | Expansion Tank | 1 | $46.05 | Available to order | 1 |
| 34 | T2107602 Spares Kit, Expansion Tank Cover | Spares Kit, Expansion Tank Cover > BV3398 All Expt BR & IN; > BX7353 BR & IN Only | 1 | $39.60 | Available to order | 1 |
| 34 | T2107601 Cover, Expansion Tank | Cover, Expansion Tank BV3399 > All Expt BR & IN; BX7354 > BR & IN Only | 1 | $36.76 | Available to order | 1 |
| 35 | T2100206 Cover, Water Outlet | Cover, Water Outlet | 1 | $50.37 | Available to order | 1 |
| 36 | T2100675 Thermostat | Thermostat | 1 | $68.42 | Available to order | 1 |
| 37 | T2100201 Seal, Thermostat | Seal, Thermostat | 1 | $7.14 | Available to order | 1 |
| 38 | T2107513 Bracket, Expansion Tank, Upper | Bracket, Expansion Tank, Upper | 1 | $8.24 | Available to order | 1 |
| 39 | T2107507 Hose, Water, Head to Rad | Hose, Water, Head to Rad | 1 | $15.72 | Available to order | 1 |
| 40 | T2103011 Spigot, Straight | Spigot, Straight | 1 | $8.99 | Available to order | 1 |
| 41 | T2107518 Spigot, Right Angle | Spigot, Right Angle | 1 | $6.24 | Available to order | 1 |
| 42 | T2100408 Hose, Bypass, Water | Hose, Bypass, Water | 1 | $13.33 | Available to order | 1 |
| 43 | T3706515 Clamp, Spring Band, 32mm | Clamp, Spring Band, 32mm | 1 | $4.55 | Available to order | 1 |
| 44 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 3 | $5.42 | Available to order | 3 |
| 45 | T3205094 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 3 | $5.69 | Backorder — Mid August 2026 | 3 |
| 46 | T3550634 Washer, 6.4 x 16 x 2 | Washer, 6.4 x 16 x 2 > BV3398 All Expt BR & IN; > BX7353 BR & IN Only | 2 | $1.72 | Out of Stock | Notify Me |
| 46 | T3555025 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 BV3399 > All Expt BR & IN; BX7354 > BR & IN Only | 2 | $1.72 | Available to order | 2 |
| 47 | T3552004 Washer, M6 x 14 x 2 | Washer, M6 x 14 x 2 | 1 | $1.91 | Available to order | 1 |
| 48 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 49 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Not Illustrated | 1 | $187.12 | Available to order | 1 |
