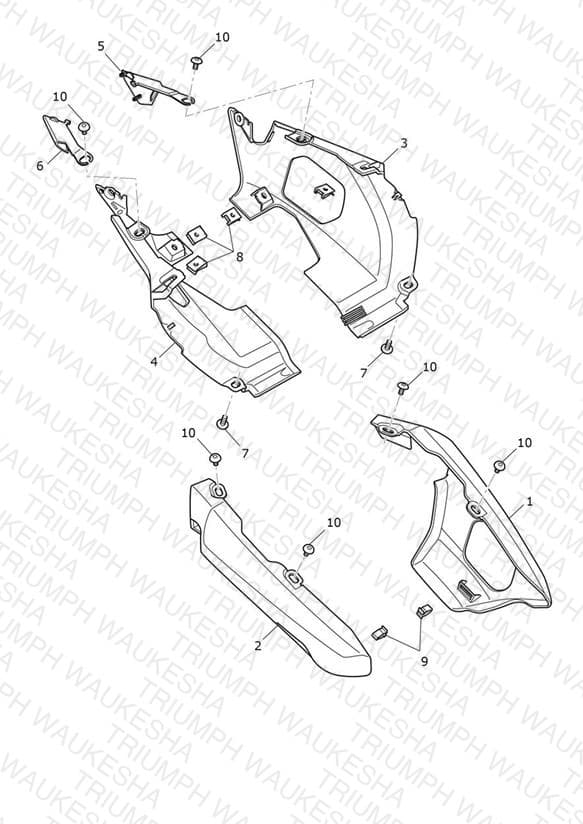

Rear Bodywork
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310612-LC Rear Panel, LH, Graphite | Rear Panel, LH, Graphite Korosi Red/Graphite Bikes & Korosi Red Bikes | 1 | $73.52 | Available to order | 1 |
| 1 | T2310612-PM Rear Panel, LH, Sapphire Black | Rear Panel, LH, Sapphire Black Lucerne Blue/Sapphire Black & Graphite/Sapphire Black Bikes > BM5203 | 1 | $135.97 | Available to order | 1 |
| 1 | T2310612-PG Rear Panel, LH, Jet Black | Rear Panel, LH, Jet Black Jet Black & Snowdonia White Bikes - BM5204 > | 1 | $146.24 | Backorder — Late August 2026 | 1 |
| 1 | T2310612-PR Rear Panel, LH, Phantom Black | Rear Panel, LH, Phantom Black Baja Orange Bikes - BZ9066 > | 1 | $135.97 | Out of Stock | Notify Me |
| 2 | T2310613-LC Rear Panel, RH, Graphite | Rear Panel, RH, Graphite Korosi Red/Graphite Bikes & Korosi Red Bikes | 1 | $79.40 | Available to order | 1 |
| 2 | T2310613-PM Rear Panel, RH, Sapphire Black | Rear Panel, RH, Sapphire Black Lucerne Blue/Sapphire Black & Graphite/Sapphire Black Bikes > BM5203 | 1 | $135.97 | Available to order | 1 |
| 2 | T2310613-PG Rear Panel, RH, Jet Black | Rear Panel, RH, Jet Black Jet Black & Snowdonia White Bikes - BM5204 > | 1 | $146.24 | Available to order | 1 |
| 2 | T2310613-PR Rear Panel, RH, Phantom Black | Rear Panel, RH, Phantom Black Baja Orange Bikes - BZ9066 > | 1 | $146.24 | Out of Stock | Notify Me |
| 3 | T2310607 Undertray, Moulding, LH | Undertray, Moulding, LH | 1 | $93.14 | Available to order | 1 |
| 4 | T2310619 Undertray, Moulding, RH | Undertray, Moulding, RH | 1 | $93.14 | Available to order | 1 |
| 5 | T2310616 Infill, Undertray, LH | Infill, Undertray, LH | 1 | $10.21 | Available to order | 1 |
| 6 | T2310617 Infill, Undertray, RH | Infill, Undertray, RH | 1 | $10.21 | Available to order | 1 |
| 7 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 2 | $5.02 | Available to order | 2 |
| 8 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 4 | $2.48 | Available to order | 4 |
| 9 | T3700290 Clip, Panel, Bayonet | Clip, Panel, Bayonet | 2 | $2.37 | Available to order | 2 |
| 10 | T3331066 Bolt, But/Hd, M5 x 17, Shld, Blk | Bolt, But/Hd, M5 x 17, Shld, Blk | 6 | $8.46 | Available to order | 6 |
