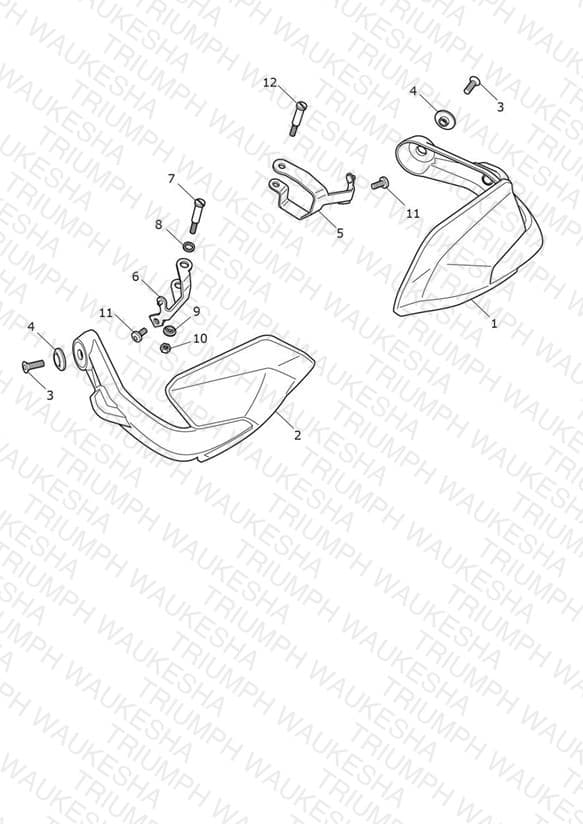

Handguards - TH Only
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T9638839 Handguard Ext Assy, LH | Handguard Ext Assy, LH | 1 | $55.02 | Out of Stock | Notify Me |
| 2 | T9638840 Handguard Ext Assy, RH | Handguard Ext Assy, RH | 1 | $55.02 | Backorder — Mid August 2026 | 1 |
| 3 | T3330923 Screw, Csk, M6 x 20, Slv, Enc | Screw, Csk, M6 x 20, Slv, Enc | 2 | $2.37 | Available to order | 2 |
| 4 | T2308627 Spacer, Csk | Spacer, Csk | 2 | $9.02 | Available to order | 2 |
| 5 | T9709013 Bracket, Handguard, LHS | Bracket, Handguard, LHS | 1 | $61.45 | Available to order | 1 |
| 6 | T9709014 Bracket, Handguard, RHS | Bracket, Handguard, RHS | 1 | $61.45 | Available to order | 1 |
| 7 | T2021568 Bolt, Pivot, M6, Dia 7.9 | Bolt, Pivot, M6, Dia 7.9 | 1 | $12.55 | Available to order | 1 |
| 8 | T2309027 Sleeve, 8.2 x 11.0 x 2.3 | Sleeve, 8.2 x 11.0 x 2.3 | 1 | $13.33 | Available to order | 1 |
| 9 | T9631756 Sleeve, Flgd, 6.2 x 9.7 x 3.75 | Sleeve, Flgd, 6.2 x 9.7 x 3.75 | 1 | $10.34 | Available to order | 1 |
| 10 | T2046521 Nut, Pivot Bolt | Nut, Pivot Bolt | 1 | $1.21 | Available to order | 1 |
| 11 | T3331040 Screw, TPT, Pan/Hd, M6 x 12, Slv | Screw, TPT, Pan/Hd, M6 x 12, Slv | 2 | $2.37 | Available to order | 2 |
| 12 | T2309213 Clutch Pivot Bold | Clutch Pivot Bold | 1 | $12.38 | Available to order | 1 |
