Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics
Loading schematic...

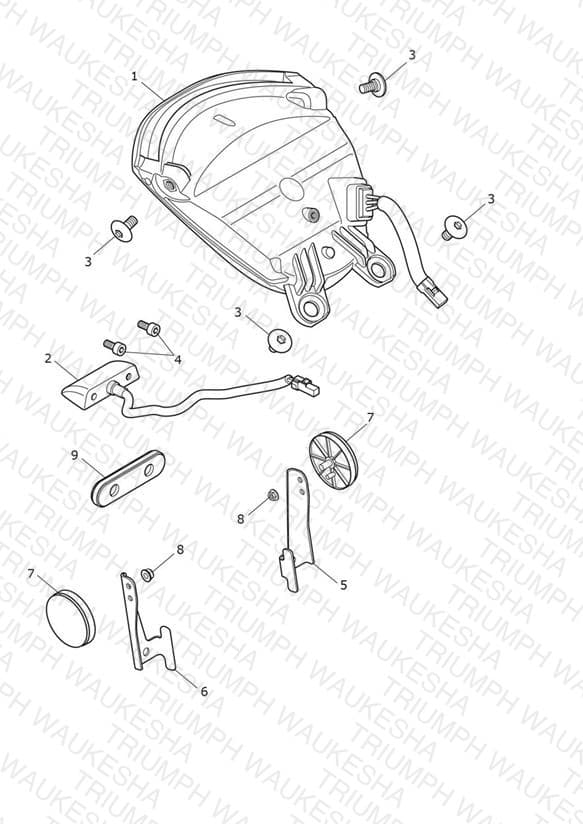

Rear Light & Reflectors
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2709120 Rear Light Assy, LED | Rear Light Assy, LED | 1 | $142.17 | Out of Stock | Notify Me |
| 2 | T2701254 Reg Plate Light | Reg Plate Light | 1 | $36.42 | Available to order | 1 |
| 3 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 4 | $5.02 | Available to order | 4 |
| 4 | T3050308 Screw, Cap/Hd, M4 x 8 | Screw, Cap/Hd, M4 x 8 | 2 | $5.14 | Available to order | 2 |
| 5 | T2050715 Rear Reflector Bracket, LHS | Rear Reflector Bracket, LHS | 1 | $24.98 | Out of Stock | Notify Me |
| 6 | T2050716 Rear Reflector Bracket, RHS | Rear Reflector Bracket, RHS | 1 | $24.98 | Available to order | 1 |
| 7 | T2700378 Reflector, Red, Circular | Reflector, Red, Circular | 2 | $9.10 | Available to order | 2 |
| 8 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 9 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 1 | $6.14 | Available to order | 1 |
