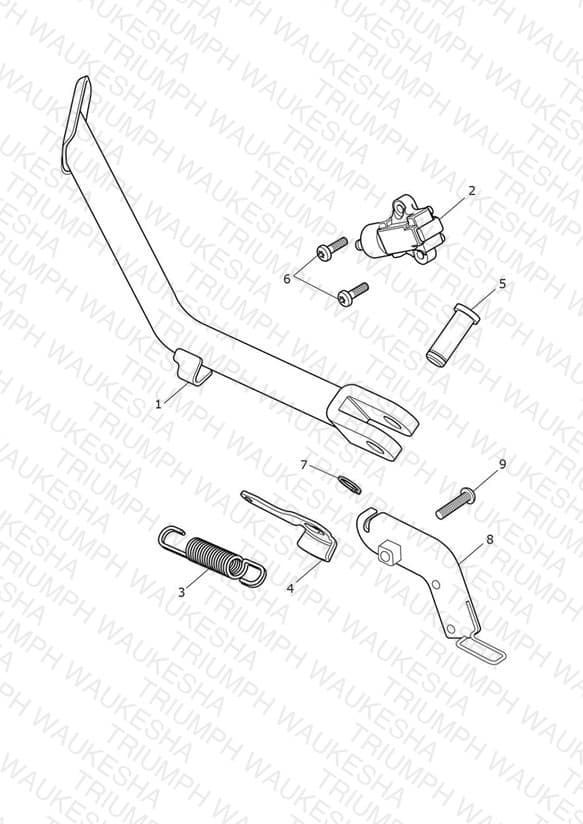

Sidestand
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2082930 Sidestand | Sidestand > BC5131 All Except BR/IN & > BC3112 BR/IN Only | 1 | $49.53 | Out of Stock | Notify Me |
| 1 | T2083241 Sidestand | Sidestand BC5132 > All Except BR/IN & BC3113 > BR/IN Only | 1 | $64.51 | Available to order | 1 |
| 2 | T2080746 Sidestand Switch | Sidestand Switch | 1 | $60.87 | Available to order | 1 |
| 3 | T2081389 Spring, Sidestand | Spring, Sidestand | 1 | $11.71 | Available to order | 1 |
| 4 | T2086610 Cam Plate, Sidestand | Cam Plate, Sidestand | 1 | $4.20 | Available to order | 1 |
| 5 | T2086611 Pivot Pin, Sidetand | Pivot Pin, Sidetand > BC5131 All Except BR/IN & > BC3112 BR/IN Only | 1 | $8.84 | Available to order | 1 |
| 5 | T2084080 Pivot Pin, Sidestand | Pivot Pin, Sidestand BC5132 > All Except BR/IN & BC3113 > BR/IN Only | 1 | $7.52 | Available to order | 1 |
| 6 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 7 | T3502095 Circlip | Circlip | 1 | $0.88 | Backorder — Mid August 2026 | 1 |
| 8 | T2082723 Bracket, Sidestand Switch | Bracket, Sidestand Switch | 1 | $13.88 | Available to order | 1 |
| 9 | T3335012 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 1 | $8.33 | Available to order | 1 |
