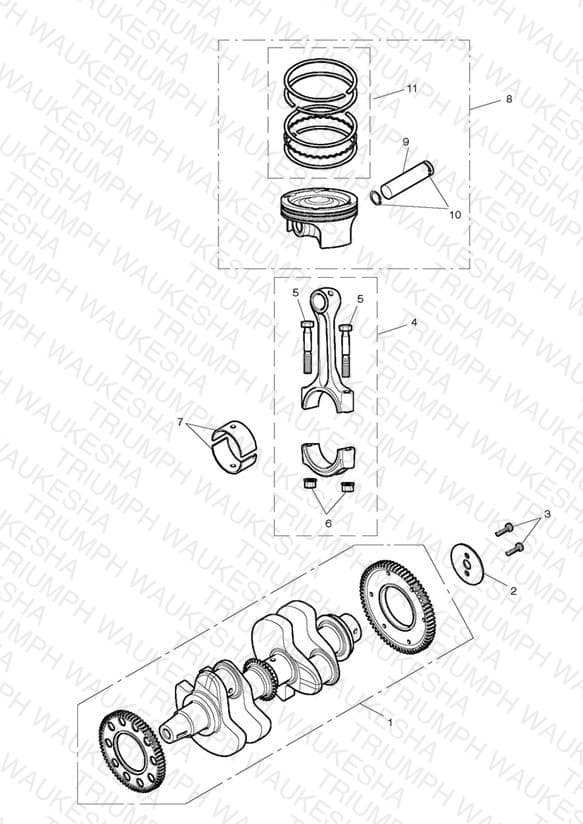

Crankshaft, Connecting Rods & Pistons
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1100917 Crankshaft Assy, 270° | Crankshaft Assy, 270° > Eng No 432345 | 1 | $1302.68 | Available to order | 1 |
| 1 | T1100929 Crankshaft Assy, 2 Cyl, 270° | Crankshaft Assy, 2 Cyl, 270° Eng No 432346 > | 1 | $1302.68 | Out of Stock | Notify Me |
| 2 | T1100913 Spacer, Crankshaft | Spacer, Crankshaft | 1 | $15.77 | Available to order | 1 |
| 3 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 4 | T1110111 Con Rod Assy, Short Stroke | Con Rod Assy, Short Stroke | 2 | $172.95 | Available to order | 2 |
| 5 | T1110060 Bolt Con Rod | Bolt Con Rod | 4 | $10.55 | Backorder — Mid August 2026 | 4 |
| 6 | T1110016 Nut, Con Rod | Nut, Con Rod | 4 | $9.69 | Available to order | 4 |
| 7 | T1110054 Bearing, Con Rod Shell, White | Bearing, Con Rod Shell, White | — | $10.18 | Available to order | 1 |
| 7 | T1110055 Bearing, Con Rod Shell, Red | Bearing, Con Rod Shell, Red | — | $12.70 | Available to order | 1 |
| 7 | T1110056 Bearing Con Rod Shell, Blue | Bearing Con Rod Shell, Blue | — | $12.70 | Available to order | 1 |
| 8 | T1121015 Piston Assy | Piston Assy | 2 | $247.17 | Available to order | 2 |
| 9 | T1121060 Gudgeon Pin | Gudgeon Pin | 2 | $13.18 | Available to order | 2 |
| 10 | T1121072 Circlip, Piston | Circlip, Piston | 4 | $2.37 | Available to order | 4 |
| 11 | T1121055 Piston Ring Set | Piston Ring Set | 2 | $117.87 | Available to order | 2 |
