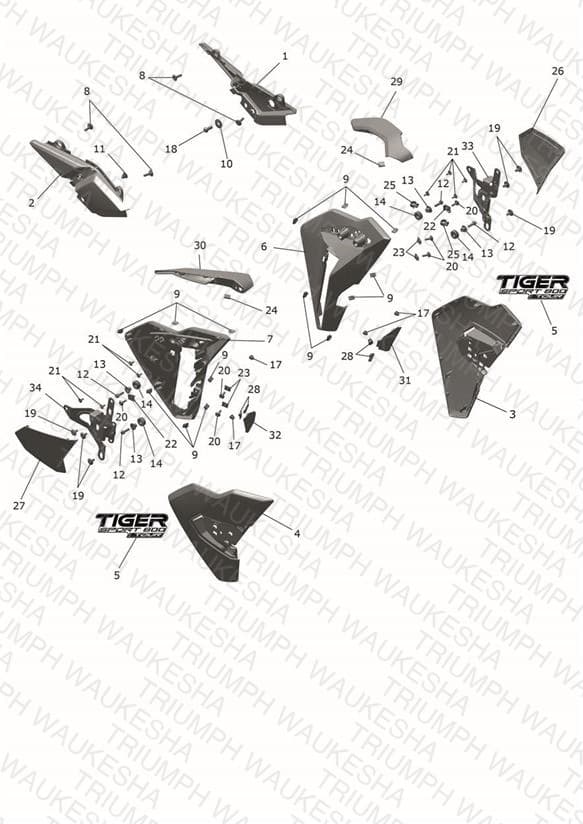

Side Panels
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310351 Side Panel, LH, Moulding | Side Panel, LH, Moulding | 1 | $76.20 | Available to order | 1 |
| 2 | T2310352 Side Panel, RH, Moulding | Side Panel, RH, Moulding | 1 | $76.20 | Backorder — Mid October 2026 | 1 |
| 3 | T2314836-PM Rad Cowl, LH, Sapphire Black | Rad Cowl, LH, Sapphire Black Red Bikes | 1 | $121.85 | Backorder — Early November 2026 | 1 |
| 3 | T2314836-QC Rad Cowl LH, Matt Sapphire | Rad Cowl LH, Matt Sapphire Blue Bikes | 1 | $121.85 | Available to order | 1 |
| 4 | T2314837-PM Rad Cowl RH, Sapphire Black | Rad Cowl RH, Sapphire Black Red Bikes | 1 | $121.85 | Out of Stock | Notify Me |
| 4 | T2314837-QC Rad Cowl RH, Matt Sapphire | Rad Cowl RH, Matt Sapphire Blue Bikes | 1 | $121.85 | Available to order | 1 |
| 5 | T2314881 Decal, Rad Cowl, Slv/Red/Gold | Decal, Rad Cowl, Slv/Red/Gold Red Bikes - Fitted to panels 3 & 4 | 2 | $15.62 | Available to order | 2 |
| 5 | T2314880 Decal, Rad Cowl, Slv/Blue/Gold | Decal, Rad Cowl, Slv/Blue/Gold Blue Bikes - Fitted to panels 3 & 4 | 2 | $15.62 | Backorder — Mid October 2026 | 2 |
| 6 | T2311670 Infill, Radiator, LH, Moulding | Infill, Radiator, LH, Moulding | 1 | $38.93 | Backorder — Mid October 2026 | 1 |
| 7 | T2311671 Infill, Radiator, RH, Moulding | Infill, Radiator, RH, Moulding | 1 | $38.80 | Available to order | 1 |
| 8 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 4 | $6.27 | Available to order | 4 |
| 9 | T3700282 S Panel Clip, 2mm | S Panel Clip, 2mm | 14 | $1.54 | Available to order | 14 |
| 10 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 1 | $2.91 | Available to order | 1 |
| 11 | T3450199 Button, Firtree, M8 x 15 | Button, Firtree, M8 x 15 | 1 | $1.50 | Available to order | 1 |
| 12 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 4 | $4.84 | Available to order | 4 |
| 13 | T3010111 Flanged Sleeve, M6, Black | Flanged Sleeve, M6, Black | 4 | $4.84 | Available to order | 4 |
| 14 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $3.04 | Available to order | 4 |
| 17 | T3020073 Grommet, Rubber, Cone | Grommet, Rubber, Cone | 4 | $4.65 | Available to order | 4 |
| 18 | T3330275 Screw, But/Hd, Tx, M8 x 20, Enc | Screw, But/Hd, Tx, M8 x 20, Enc | 1 | $3.82 | Available to order | 1 |
| 19 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 6 | $4.70 | Available to order | 6 |
| 20 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 6 | $7.18 | Available to order | 6 |
| 21 | T3331433 Screw, S/Tap, Pan TX, 4 x 11, PT | Screw, S/Tap, Pan TX, 4 x 11, PT | 8 | $2.05 | Unavailable | View Details |
| 22 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 2 | $2.63 | Available to order | 2 |
| 23 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 4 | $4.84 | Available to order | 4 |
| 24 | T3450345 Clip, Wire, Self Adhesive | Clip, Wire, Self Adhesive | 2 | $4.46 | Available to order | 2 |
| 25 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 2 | $3.45 | Available to order | 2 |
| 26 | T2311679 Infill, Rad Outer, LH, Mldg | Infill, Rad Outer, LH, Mldg | 1 | $61.01 | Backorder — Early November 2026 | 1 |
| 27 | T2311680 Infill, Rad Outer, RH, Mldg | Infill, Rad Outer, RH, Mldg | 1 | $61.01 | Backorder — Mid October 2026 | 1 |
| 28 | T2313085 Clip, Bodywork | Clip, Bodywork | 4 | $2.60 | Available to order | 4 |
| 29 | T2313180 Mount, Indicator, LH, Mldg | Mount, Indicator, LH, Mldg | 1 | $9.45 | Available to order | 1 |
| 30 | T2313190 Mount, Indicator, RH, Mldg | Mount, Indicator, RH, Mldg | 1 | $9.45 | Available to order | 1 |
| 31 | T2316620 Infill, Rad Inner, LH, Mldg | Infill, Rad Inner, LH, Mldg | 1 | $61.01 | Available to order | 1 |
| 32 | T2316630 Infill, Rad Inner, RH, Mldg | Infill, Rad Inner, RH, Mldg | 1 | $61.01 | Out of Stock | Notify Me |
| 33 | T2317100 Bracket, Rad Cowl, LH | Bracket, Rad Cowl, LH | 1 | $18.42 | Available to order | 1 |
| 34 | T2317110 Bracket, Rad Cowl, RH | Bracket, Rad Cowl, RH | 1 | $18.42 | Available to order | 1 |
