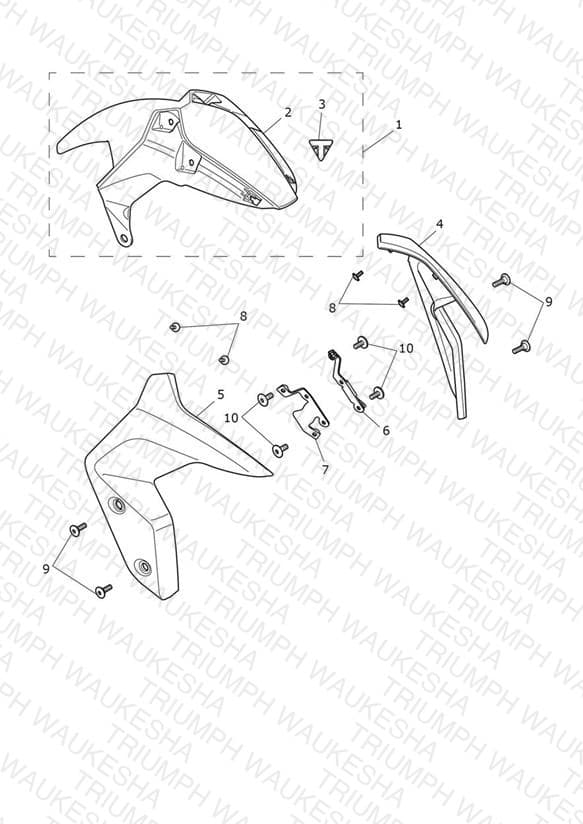

Front Mudguard
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310669 Front Mudguard, Moulding, Centre | Front Mudguard, Moulding, Centre | 1 | $136.97 | Available to order | 1 |
| 2 | T2310411 Mudguard Centre | Mudguard Centre | 1 | $48.74 | Available to order | 1 |
| 3 | T2310998 Decal, Badge, Mudguard | Decal, Badge, Mudguard | 1 | $19.50 | Available to order | 1 |
| 4 | T2310433-PM Front Mudguard, LH, Sapphire Black | Front Mudguard, LH, Sapphire Black Fitted to Red Bike | 1 | $137.22 | Available to order | 1 |
| 4 | T2310433-QC Front Mudguard, LH, Matt Sapphire | Front Mudguard, LH, Matt Sapphire Fitted to Blue Bike | 1 | $115.08 | Backorder — Early August 2026 | 1 |
| 5 | T2310434-PM Front Mudguard, RH, Sapphire Black | Front Mudguard, RH, Sapphire Black Fitted to Red Bike | 1 | $137.22 | Out of Stock | Notify Me |
| 5 | T2310434-QC Front Mudguard, RH, Matt Sapphire | Front Mudguard, RH, Matt Sapphire Fitted to Blue Bike | 1 | $115.08 | Available to order | 1 |
| 6 | T2043995 Bracket, Front Mudguard, LH | Bracket, Front Mudguard, LH | 1 | $8.88 | Available to order | 1 |
| 7 | T2043996 Bracket, Front Mudguard, RH | Bracket, Front Mudguard, RH | 1 | $8.88 | Available to order | 1 |
| 8 | T3331433 Screw, S/Tap, Pan TX, 4 x 11, PT | Screw, S/Tap, Pan TX, 4 x 11, PT | 4 | $1.78 | Unavailable | View Details |
| 9 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 4 | $5.88 | Available to order | 4 |
| 10 | T3331010 Bolt, But/Hd, Skt, M6 x 16, S/S | Bolt, But/Hd, Skt, M6 x 16, S/S | 4 | $4.30 | Available to order | 4 |
