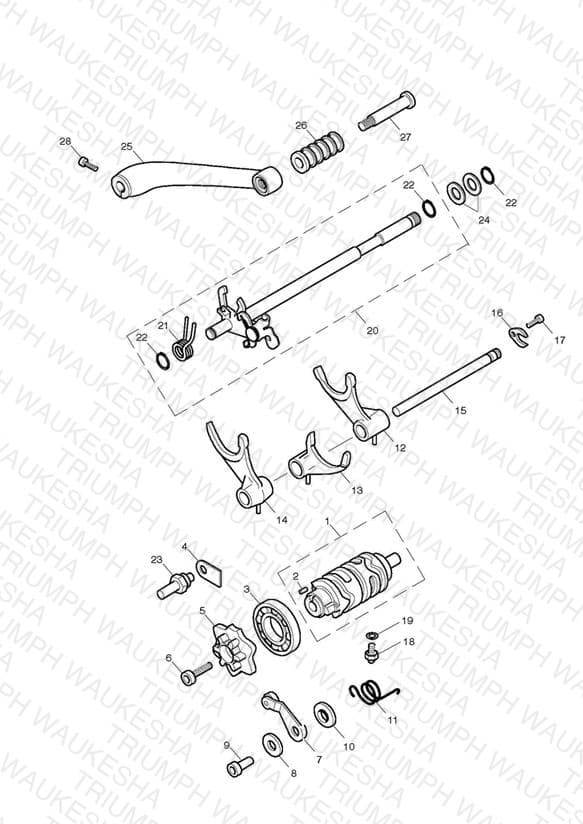

Gear Selectors & Pedal
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1190909 Selector Drum Assembly | Selector Drum Assembly | 1 | $348.52 | Available to order | 1 |
| 2 | T3000009 Dowel | Dowel | 1 | $0.01 | Obsolete | View Details |
| 3 | T3800090 Bearing Ball, Unshld, 20x42x8 | Bearing Ball, Unshld, 20x42x8 | 1 | $7.62 | Available to order | 1 |
| 4 | T1190926 Plate retaining | Plate retaining | 1 | $3.70 | Backorder — Late August 2026 | 1 |
| 5 | T1190915 Detent wheel | Detent wheel | 1 | $37.72 | Available to order | 1 |
| 6 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 1 | $1.06 | Available to order | 1 |
| 7 | T1190165 Detent arm assembly | Detent arm assembly > Eng No 330785 | 1 | $21.75 | Backorder — Mid August 2026 | 1 |
| 7 | T1190169 Detent Arm Assy | Detent Arm Assy Eng No 330786 > | 1 | $21.75 | Available to order | 1 |
| 8 | T3555017 Washer, 6.5 x 12.5 x 0.8 | Washer, 6.5 x 12.5 x 0.8 | 1 | $3.04 | Available to order | 1 |
| 9 | T3051058 Screw, Cap/HD, M6 x 20, Enc | Screw, Cap/HD, M6 x 20, Enc | 1 | $1.13 | Available to order | 1 |
| 10 | T1190192 Collar, Detent Arm | Collar, Detent Arm | 1 | $2.00 | Backorder — Late August 2026 | 1 |
| 11 | T1190923 Spring, Detent Arm | Spring, Detent Arm | 1 | $4.19 | Available to order | 1 |
| 12 | T1191002 Fork, C, Selector, Output | Fork, C, Selector, Output | 1 | $96.97 | Available to order | 1 |
| 13 | T1191001 Selector fork | Selector fork | 1 | $96.97 | Available to order | 1 |
| 14 | T1191000 Fork, A, Selector, Output | Fork, A, Selector, Output | 1 | $96.97 | Available to order | 1 |
| 15 | T1190069 Shaft, Selector, Gearbox | Shaft, Selector, Gearbox | 1 | $38.56 | Available to order | 1 |
| 16 | T1190101 Keeper Plate, Selector Shaft | Keeper Plate, Selector Shaft | 1 | $5.14 | Available to order | 1 |
| 17 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 18 | T1190282 Neutral Switch | Neutral Switch | 1 | $39.24 | Available to order | 1 |
| 19 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 1 | $0.89 | Available to order | 1 |
| 20 | T1190910 Gearchange Shaft Assy | Gearchange Shaft Assy > Eng No 372712 | 1 | $148.31 | Available to order | 1 |
| 20 | T1190082 Gearchange Shaft Assy | Gearchange Shaft Assy Eng No 372713 > | 1 | $148.31 | Out of Stock | Notify Me |
| 21 | T1190041 Spring, Gearchange Return | Spring, Gearchange Return | 1 | $3.61 | Obsolete | View Details |
| 22 | T3500044 E Circlip | E Circlip | 3 | $0.97 | Available to order | 3 |
| 23 | T1191143 Pin, Spring Abutment | Pin, Spring Abutment | 1 | $9.88 | Available to order | 1 |
| 24 | T3555003 Washer, 12 x 18 x 1.2 | Washer, 12 x 18 x 1.2 > Eng No 372712 | 2 | $1.40 | Available to order | 2 |
| 24 | T3550236 Washer, 14 x 20 x 1.6 | Washer, 14 x 20 x 1.6 Eng No 372713 > | 2 | $2.95 | Available to order | 2 |
| 25 | T2081144 Pedal, Gearchange | Pedal, Gearchange | 1 | $171.61 | Available to order | 1 |
| 26 | T2080766 Rubber, Gearchange Pedal | Rubber, Gearchange Pedal | 1 | $9.22 | Available to order | 1 |
| 27 | T2081778 Pin, Gearchange | Pin, Gearchange | 1 | $13.10 | Available to order | 1 |
| 28 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 1 | $1.51 | Available to order | 1 |
