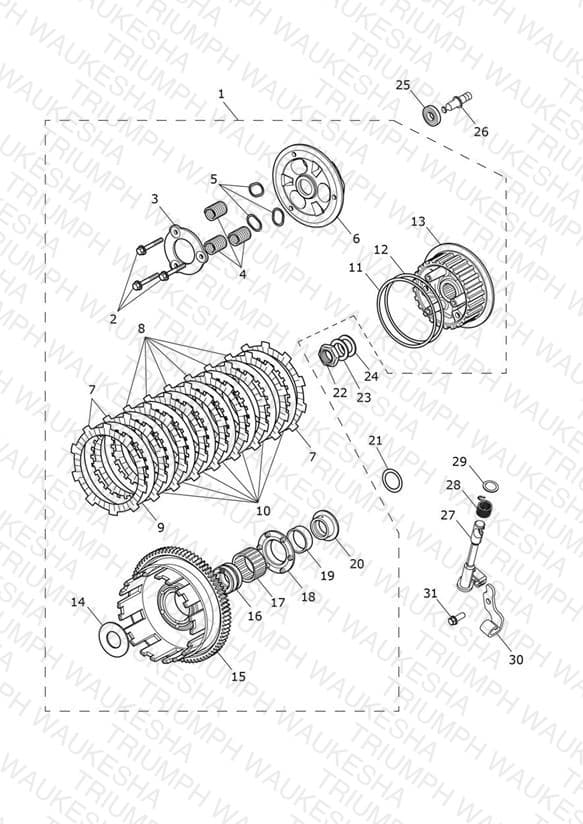

Clutch
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1176255 Clutch Assy, Grade B | Clutch Assy, Grade B | 1 | $1109.97 | Backorder — Late August 2026 | 1 |
| 2 | T1170804 Bolt, Hex Head, M6 x 50 | Bolt, Hex Head, M6 x 50 | 3 | $2.25 | Available to order | 3 |
| 3 | T1175575 Plate, Stopper | Plate, Stopper | 1 | $146.35 | Out of Stock | Notify Me |
| 4 | T1171564 Clutch Spring | Clutch Spring | 3 | $10.01 | Available to order | 3 |
| 5 | T1170809 Seat, Clutch Spring | Seat, Clutch Spring | 3 | $7.14 | Available to order | 3 |
| 6 | T1170802 Plate, Clutch Pressure | Plate, Clutch Pressure | 1 | $150.18 | Available to order | 1 |
| 7 | T1175540 Friction Disk, Clutch | Friction Disk, Clutch | 3 | $20.36 | Available to order | 3 |
| 8 | T1175535 Friction Disk, Clutch | Friction Disk, Clutch | 6 | $20.36 | Available to order | 6 |
| 9 | T1175530 Clutch Plate, B | Clutch Plate, B | 1 | $52.29 | Available to order | 1 |
| 10 | T1175525 Clutch Plate | Clutch Plate | 7 | $24.83 | Available to order | 7 |
| 11 | T1170172 Spring, Judder | Spring, Judder | 1 | $19.65 | Available to order | 1 |
| 12 | T1170173 Seat, Judder Spring | Seat, Judder Spring | 1 | $21.51 | Backorder — Late August 2026 | 1 |
| 13 | T1170801 Centre, Clutch | Centre, Clutch | 1 | $157.79 | Available to order | 1 |
| 14 | T1174700 Washer, 25.5 x 53 x 2 | Washer, 25.5 x 53 x 2 | 1 | $10.18 | Available to order | 1 |
| 15 | T1176252 Clutch Outer Assembly | Clutch Outer Assembly | 1 | $501.54 | Backorder — Late August 2026 | 1 |
| 16 | T1174800 Bush, Clutch | Bush, Clutch | 1 | $54.20 | Available to order | 1 |
| 17 | T1170193 Bearing, Needle, K40 x 45 x 22 | Bearing, Needle, K40 x 45 x 22 | 1 | $21.52 | Available to order | 1 |
| 18 | T1170943 Sprocket, Auxillary Drive | Sprocket, Auxillary Drive | 1 | $176.81 | Out of Stock | Notify Me |
| 19 | T1175200 Bearing, Needle, K32 x 37 x 13 | Bearing, Needle, K32 x 37 x 13 | 1 | $19.57 | Available to order | 1 |
| 20 | T1174900 Bush, Sprocket | Bush, Sprocket | 1 | $8.46 | Out of Stock | Notify Me |
| 21 | T3555018 Washer, 25 x 35 x 1.75 | Washer, 25 x 35 x 1.75 | 1 | $15.60 | Available to order | 1 |
| 22 | T1170106 Nut, Clutch, 22mm | Nut, Clutch, 22mm | 1 | $13.51 | Available to order | 1 |
| 23 | T1179999 Washer, C, Clutch | Washer, C, Clutch | 1 | $11.71 | Available to order | 1 |
| 24 | T1171282 Washer, ID 22, OD 34 | Washer, ID 22, OD 34 | 1 | $4.64 | Available to order | 1 |
| 25 | T1173560 Bearing, Clutch Lifter | Bearing, Clutch Lifter | 1 | $34.05 | Available to order | 1 |
| 26 | T1175505 Lifter Piece, Clutch | Lifter Piece, Clutch | 1 | $41.82 | Out of Stock | Notify Me |
| 27 | T1176199 Clutch Lifter Arm | Clutch Lifter Arm | 1 | $40.97 | Available to order | 1 |
| 28 | T1170666 Spring | Spring | 1 | $5.98 | Available to order | 1 |
| 29 | T3555014 Washer, 13 x 18 x 1 | Washer, 13 x 18 x 1 | 1 | $1.27 | Available to order | 1 |
| 30 | T1170182 Bracket, Clutch | Bracket, Clutch | 1 | $12.04 | Available to order | 1 |
| 31 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 32 | T1171102 Clutch Plates Kit | Clutch Plates Kit Comprises All Items 7, 8, 9, 10, 11 & 12 | 1 | $182.19 | Out of Stock | Notify Me |
| 33 | T1171103 Clutch Springs Kit | Clutch Springs Kit Comprises All Items 4 & 5 | 1 | $60.35 | Out of Stock | Notify Me |
