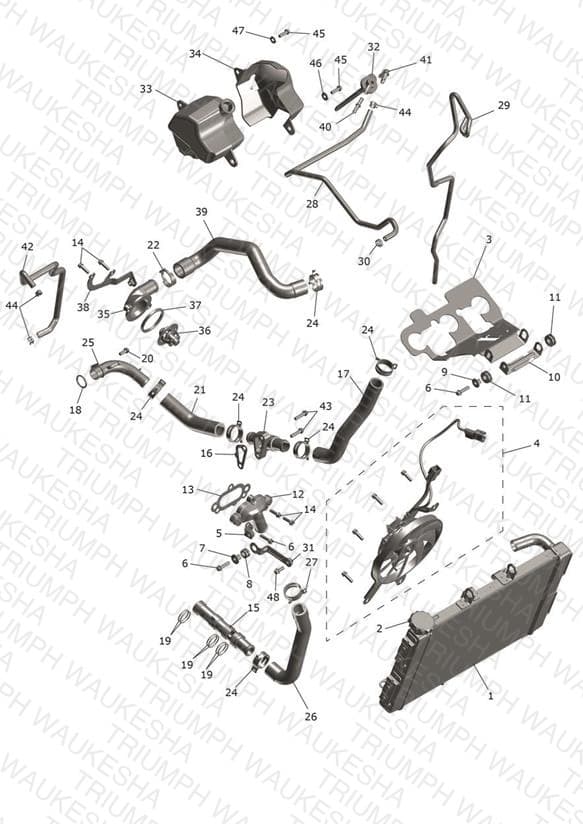

Cooling System
Parts (49)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2106801 Radiator Assembly | Radiator Assembly Includes Cap | 1 | $657.76 | Available to order | 1 |
| 2 | T2106111 Cap Assy, Radiator | Cap Assy, Radiator Included in Radiator Assy | 1 | $22.21 | Out of Stock | Notify Me |
| 3 | T2107511 Air Deflector | Air Deflector | 1 | $31.11 | Available to order | 1 |
| 4 | T2106702 Fan Assembly | Fan Assembly | 1 | $402.87 | Backorder — Late August 2026 | 1 |
| 5 | T2100168 Bracket, Radiator, Lower, Rear | Bracket, Radiator, Lower, Rear | 1 | $8.53 | Available to order | 1 |
| 6 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 3 | $2.46 | Available to order | 3 |
| 7 | T3010144 Flanged Sleeve, M6 x 9.5 x 10.5 | Flanged Sleeve, M6 x 9.5 x 10.5 | 1 | $3.77 | Available to order | 1 |
| 8 | T3020033 Grommet; 12 x 2 x 9.6 | Grommet; 12 x 2 x 9.6 | 1 | $4.45 | Available to order | 1 |
| 9 | T3010159 Flanged Sleeve, 6.4 x 9 x 8.5 | Flanged Sleeve, 6.4 x 9 x 8.5 | 1 | $5.78 | Out of Stock | Notify Me |
| 10 | T2107525 Air Deflector Retainer Bracket | Air Deflector Retainer Bracket | 1 | $10.66 | Out of Stock | Notify Me |
| 11 | T3020188 Grommet, 16.5 x 3 x 9.5 | Grommet, 16.5 x 3 x 9.5 | 2 | $1.91 | Out of Stock | Notify Me |
| 12 | T2100224 Cover, Water Inlet | Cover, Water Inlet | 1 | $31.39 | Available to order | 1 |
| 13 | T2100205 Gasket, Water Inlet | Gasket, Water Inlet | 1 | $3.24 | Available to order | 1 |
| 14 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 4 | $4.55 | Available to order | 4 |
| 15 | T2101426 Pipe, Water Pump Outlet | Pipe, Water Pump Outlet | 1 | $6.23 | Out of Stock | Notify Me |
| 16 | T2100435 Gasket, T-Piece, Water | Gasket, T-Piece, Water | 1 | $3.50 | Available to order | 1 |
| 17 | T2106705 Hose, Coolant, Radiator Outlet | Hose, Coolant, Radiator Outlet | 1 | $17.77 | Out of Stock | Notify Me |
| 18 | T3600124 O Ring, ID 21.5 x 3 | O Ring, ID 21.5 x 3 | 1 | $3.39 | Available to order | 1 |
| 19 | T3600290 O Ring, 23.7 x 2 | O Ring, 23.7 x 2 | 6 | $1.40 | Available to order | 6 |
| 20 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 1 | $4.01 | Out of Stock | Notify Me |
| 21 | T2109091 Hose, T-Piece to Pump | Hose, T-Piece to Pump | 1 | $33.93 | Available to order | 1 |
| 22 | T3706515 Clamp, Spring Band, 32mm | Clamp, Spring Band, 32mm | 1 | $4.55 | Available to order | 1 |
| 23 | T2106779 T-Piece, Water, Black | T-Piece, Water, Black | 1 | $26.65 | Available to order | 1 |
| 24 | T3706214 Clamp, Constant Tension, Dia 29 | Clamp, Constant Tension, Dia 29 | 6 | $13.99 | Available to order | 6 |
| 25 | T2107012 Pipe, Water Pump Inlet | Pipe, Water Pump Inlet | 1 | $42.57 | Available to order | 1 |
| 26 | T2100425 Hose, Formed, Water Pump Outlet | Hose, Formed, Water Pump Outlet | 1 | $28.34 | Available to order | 1 |
| 27 | T3706215 Clamp, Constant Tension, Dia 30 | Clamp, Constant Tension, Dia 30 | 1 | $13.99 | Available to order | 1 |
| 28 | T2107888 Hose, Rad to Expansion Tank | Hose, Rad to Expansion Tank | 1 | $9.21 | Available to order | 1 |
| 29 | T2107567 Hose, Expansion Tank Overflow | Hose, Expansion Tank Overflow | 1 | $8.53 | Available to order | 1 |
| 30 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
| 31 | T2107509 Radiator Bracket | Radiator Bracket | 1 | $15.46 | Available to order | 1 |
| 32 | T2109006 Cap, Expansion Tank, Overflow | Cap, Expansion Tank, Overflow | 1 | $14.26 | Available to order | 1 |
| 33 | T2107576 Expansion Tank | Expansion Tank | 1 | $71.04 | Out of Stock | Notify Me |
| 34 | T2107521 Cover, Expansion Tank | Cover, Expansion Tank | 1 | $35.92 | Available to order | 1 |
| 35 | T2100206 Cover, Water Outlet | Cover, Water Outlet | 1 | $50.37 | Available to order | 1 |
| 36 | T2100675 Thermostat | Thermostat | 1 | $68.42 | Available to order | 1 |
| 37 | T2100201 Seal, Thermostat | Seal, Thermostat | 1 | $7.14 | Available to order | 1 |
| 38 | T2101919 Bracket, Expansion Tank, Upper | Bracket, Expansion Tank, Upper | 1 | $8.88 | Out of Stock | Notify Me |
| 39 | T2106706 Hose, Water, Head to Rad | Hose, Water, Head to Rad | 1 | $29.24 | Out of Stock | Notify Me |
| 40 | T2103011 Spigot, Straight | Spigot, Straight | 1 | $8.99 | Available to order | 1 |
| 41 | T2107518 Spigot, Right Angle | Spigot, Right Angle | 1 | $6.24 | Available to order | 1 |
| 42 | T2100408 Hose, Bypass, Water | Hose, Bypass, Water | 1 | $13.33 | Available to order | 1 |
| 43 | T3200664 Bolt, TX, Lghtd, M6 x 25, Slv | Bolt, TX, Lghtd, M6 x 25, Slv | 2 | $3.56 | Available to order | 2 |
| 44 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 3 | $5.42 | Available to order | 3 |
| 45 | T3205094 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 2 | $5.69 | Backorder — Mid August 2026 | 2 |
| 46 | T3550634 Washer, 6.4 x 16 x 2 | Washer, 6.4 x 16 x 2 | 1 | $1.72 | Out of Stock | Notify Me |
| 47 | T3552004 Washer, M6 x 14 x 2 | Washer, M6 x 14 x 2 | 1 | $1.91 | Available to order | 1 |
| 48 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 49 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Not Illustrated | 1 | $187.12 | Available to order | 1 |
