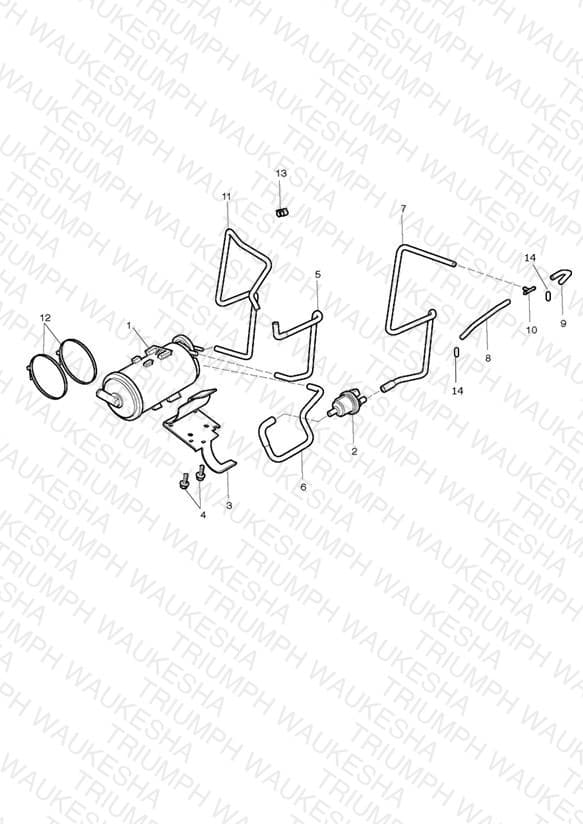

Evaporative Loss Control System - US CAL, TW, HK & CA Only
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2400160 Carbon Canister | Carbon Canister | 1 | $56.07 | Obsolete | View Details |
| 2 | T1240802 Purge Valve, EFI | Purge Valve, EFI | 1 | $58.02 | Unavailable | View Details |
| 3 | T1240912 Bracket, Evap Can | Bracket, Evap Can | 1 | $102.64 | Available to order | 1 |
| 4 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.50 | Available to order | 2 |
| 5 | T1245072 Pipe, Fuel Tank Vent, Formed | Pipe, Fuel Tank Vent, Formed | 1 | $24.05 | Available to order | 1 |
| 6 | T1245073 Pipe, Evap Can To Valve, Formed | Pipe, Evap Can To Valve, Formed | 1 | $24.05 | Available to order | 1 |
| 7 | T1245070 Pipe, Evap, Purge, Formed | Pipe, Evap, Purge, Formed | 1 | $24.05 | Available to order | 1 |
| 8 | T1245067 Hose, Evap, Purge, RH | Hose, Evap, Purge, RH | 1 | $24.05 | Available to order | 1 |
| 9 | T1245068 Hose, Evap, Purge, LH | Hose, Evap, Purge, LH | 1 | $23.76 | Available to order | 1 |
| 10 | T1243154 Connector, T-Piece | Connector, T-Piece | 1 | $2.74 | Available to order | 1 |
| 11 | T1245071 Pipe, Evap, Vacuum, Signal | Pipe, Evap, Vacuum, Signal | 1 | $24.05 | Available to order | 1 |
| 12 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 3 | $0.95 | Available to order | 3 |
| 13 | T2040811 Twin Clip, Brake Hose | Twin Clip, Brake Hose | 1 | $2.63 | Available to order | 1 |
| 14 | T1245074 Restrictor, Purge Valve | Restrictor, Purge Valve | 2 | $48.49 | Backorder — Late August 2026 | 2 |
