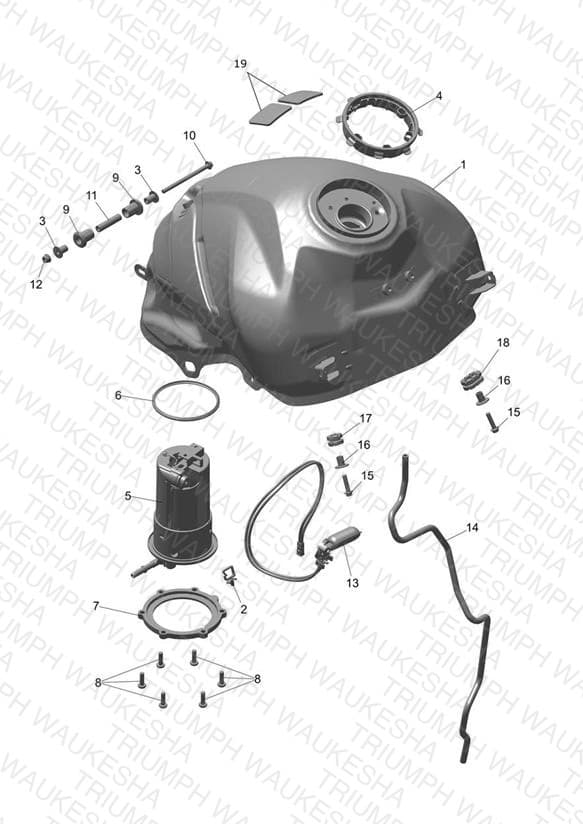

Fuel Tank, Pump and Fittings
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2408550 Fuel Tank | Fuel Tank | 1 | $797.53 | Out of Stock | Notify Me |
| 2 | T3700404 Clip, Wire | Clip, Wire | 1 | $10.66 | Available to order | 1 |
| 3 | T3010701 Flanged Sleeve, 6.4 x 10 x 14.5 | Flanged Sleeve, 6.4 x 10 x 14.5 | 2 | $5.30 | Available to order | 2 |
| 4 | T2405473 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.12 | Available to order | 1 |
| 5 | T2408485 Fuel Pump | Fuel Pump | 1 | $535.60 | Available to order | 1 |
| 6 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 7 | T2400562 Location Plate, Pump | Location Plate, Pump | 1 | $37.09 | Available to order | 1 |
| 8 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 9 | T2400446 Rubber Bush | Rubber Bush | 2 | $3.24 | Out of Stock | Notify Me |
| 10 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Available to order | 1 |
| 11 | T2407891 Spacer, Fuel Tank | Spacer, Fuel Tank | 1 | $4.42 | Out of Stock | Notify Me |
| 12 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 13 | T2404532 Level Sender, Fuel Tank | Level Sender, Fuel Tank | 1 | $79.92 | Backorder — Late August 2026 | 1 |
| 14 | T2403395 Drain Hose | Drain Hose | 1 | $53.29 | Out of Stock | Notify Me |
| 15 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 16 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 4 | $4.12 | Available to order | 4 |
| 17 | T3020622 Grommet, Castellated | Grommet, Castellated | 1 | $1.78 | Backorder — Late August 2026 | 1 |
| 18 | T3020644 Grommet, Slotted, Castellated | Grommet, Slotted, Castellated | 1 | $2.67 | Backorder — Late August 2026 | 1 |
| 19 | T2407925 Fuel tank pad | Fuel tank pad | 2 | $4.45 | Out of Stock | Notify Me |
