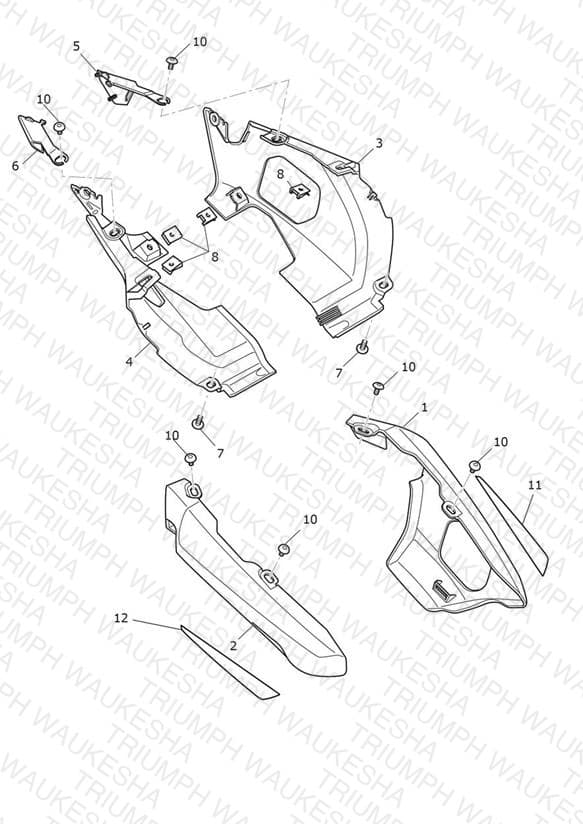

Rear Bodywork
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310612-PM Rear Panel, LH, Sapphire Black | Rear Panel, LH, Sapphire Black Graphite/Sapphire Black Bikes | 1 | $130.94 | Available to order | 1 |
| 1 | T2312867-PM Rear Panel, LH, Pntd, Sapphire Black | Rear Panel, LH, Pntd, Sapphire Black Cosmic Yellow/Sapphire Black Bikes | 1 | $145.36 | Out of Stock | Notify Me |
| 1 | T2312869-PM Rear Panel, LH, Pntd, Sapphire Black | Rear Panel, LH, Pntd, Sapphire Black Caspian Blue/Sapphire Black Bikes | 1 | $145.36 | Backorder — Late September 2026 | 1 |
| 1 | T2312871-PM Rear Panel, LH, Pntd, Sapphire Black | Rear Panel, LH, Pntd, Sapphire Black Sapphire Black Bikes | 1 | $145.36 | Backorder — Late September 2026 | 1 |
| 2 | T2310613-PM Rear Panel, RH, Sapphire Black | Rear Panel, RH, Sapphire Black Graphite/Sapphire Black Bikes | 1 | $130.94 | Available to order | 1 |
| 2 | T2312868-PM Rear Panel, RH, Pntd, Sapphire Black | Rear Panel, RH, Pntd, Sapphire Black Cosmic Yellow/Sapphire Black Bikes | 1 | $145.36 | Out of Stock | Notify Me |
| 2 | T2312870-PM Rear Panel, RH, Pntd, Sapphire Black | Rear Panel, RH, Pntd, Sapphire Black Caspian Blue/Sapphire Black Bikes | 1 | $145.36 | Out of Stock | Notify Me |
| 2 | T2312872-PM Rear Panel, RH, Pntd, Sapphire Black | Rear Panel, RH, Pntd, Sapphire Black Sapphire Black Bikes | 1 | $145.36 | Backorder — Late September 2026 | 1 |
| 3 | T2310607 Undertray, Moulding, LH | Undertray, Moulding, LH | 1 | $91.41 | Available to order | 1 |
| 4 | T2310619 Undertray, Moulding, RH | Undertray, Moulding, RH | 1 | $91.41 | Available to order | 1 |
| 5 | T2310616 Infill, Undertray, LH | Infill, Undertray, LH | 1 | $10.88 | Available to order | 1 |
| 6 | T2310617 Infill, Undertray, RH | Infill, Undertray, RH | 1 | $10.88 | Available to order | 1 |
| 7 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 2 | $5.35 | Available to order | 2 |
| 8 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 4 | $2.63 | Available to order | 4 |
| 10 | T3331066 Bolt, But/Hd, M5 x 17, Shld, Blk | Bolt, But/Hd, M5 x 17, Shld, Blk | 6 | $9.00 | Available to order | 6 |
| 11 | T2313908 Decal, Rear Panel, LH | Decal, Rear Panel, LH Graphite/Sapphire Black Bikes | 1 | $27.63 | Out of Stock | Notify Me |
| 11 | T2313430 Decal, Rear Panel, LH | Decal, Rear Panel, LH Cosmic Yellow/Sapphire Black Bikes | 1 | $18.42 | Out of Stock | Notify Me |
| 11 | T2313432 Decal, Rear Panel, LH | Decal, Rear Panel, LH Caspian Blue/Sapphire Black Bikes | 1 | $18.42 | Out of Stock | Notify Me |
| 11 | T2313434 Decal, Rear Panel, LH | Decal, Rear Panel, LH Sapphire Black Bikes | 1 | $18.42 | Backorder — Mid October 2026 | 1 |
| 12 | T2313909 Decal, Rear Panel, RH | Decal, Rear Panel, RH Graphite/Sapphire Black Bikes | 1 | $27.63 | Out of Stock | Notify Me |
| 12 | T2313431 Decal, Rear Panel, RH | Decal, Rear Panel, RH Cosmic Yellow/Sapphire Black Bikes | 1 | $18.42 | Backorder — Mid October 2026 | 1 |
| 12 | T2313433 Decal, Rear Panel, RH | Decal, Rear Panel, RH Caspian Blue/Sapphire Black Bikes | 1 | $18.42 | Available to order | 1 |
| 12 | T2313435 Decal, Rear Panel, RH | Decal, Rear Panel, RH Sapphire Black Bikes | 1 | $18.42 | Out of Stock | Notify Me |
