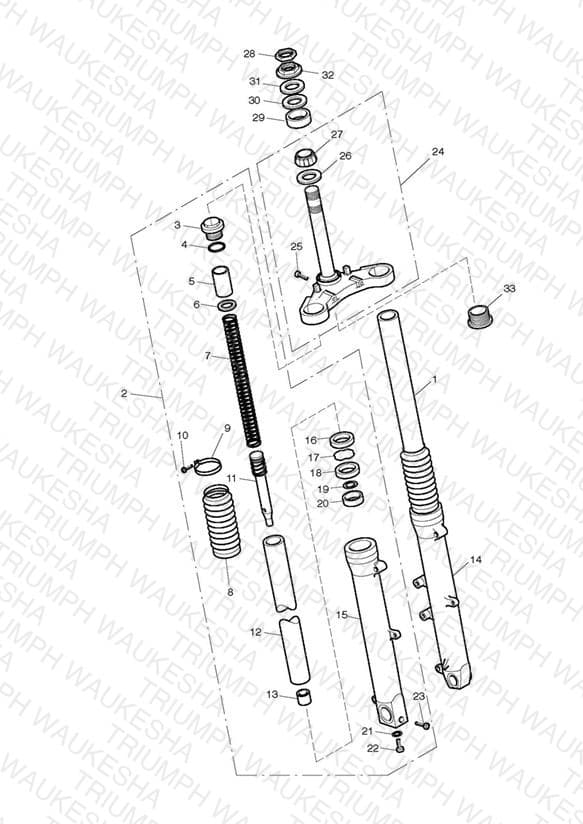

Triumph Air Cooled Scramblers Front Forks & Lower Yoke — OEM Parts Diagram

Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics

Loading schematic...

What Our Customers Say

4.9 out of 5 based on 175 reviews

View all reviews →

“Thanks.”

B. BOUTET · SANTA MARIA, CA · Apr 2026

“So far excellent”

K. Colmark · Pharr, TX · Mar 2026

“great shop. easy to search/navigate for parts”

B. Hobratschk · Buda, TX · Feb 2026

“Very Smooth”

D. Haynes · GREENBACKVILLE, VA · Feb 2026

“Great inventory!”

S. Saenz · IDAHO FALLS, ID · Feb 2026

“This is my favorite Triumph OEM store on the planet”

C. Bozonier · VENTURA, CA · Jan 2026

#	Part Number	Description	Qty	Price	Status
1	T2045158 Kit, Fork Assy, LH	Kit, Fork Assy, LH > 724746	1	$1021.03	Out of Stock	Notify Me
1	T2045152 Fork Leg Assy, LH	Fork Leg Assy, LH 724747 >	1	$1021.03	Available to order	1 Ships within 3–7 business days
2	T2045159 Kit, Fork Assy, RH	Kit, Fork Assy, RH > 724746	1	$1021.03	Out of Stock	Notify Me
2	T2045153 Fork Leg Assy, RH	Fork Leg Assy, RH 724747 >	1	$1021.03	Out of Stock	Notify Me
3	T2047114 Cap, Fork	Cap, Fork	2	$72.26	Available to order	2 Ships within 3–7 business days
4	T2047113 O Ring, Fork Seal	O Ring, Fork Seal	2	$2.74	Available to order	2 Ships within 3–7 business days
5	T2040343 Tube, Spacer	Tube, Spacer	2	$11.71	Available to order	2 Ships within 3–7 business days
6	T2047111 Guide, Spring	Guide, Spring	2	$4.01	Available to order	2 Ships within 3–7 business days
7	T2047110 Spring	Spring	2	$100.76	Available to order	2 Ships within 3–7 business days
8	T2040349 Gaiter, Front Fork	Gaiter, Front Fork	2	$37.35	Available to order	2 Ships within 3–7 business days
9	T2045162 Kit, Clip, Fork Gaiter	Kit, Clip, Fork Gaiter > 724746	1	$7.22	Available to order	1 Ships within 3–7 business days
9	T2045157 Clip, Gaiter, Front Forks	Clip, Gaiter, Front Forks 724747 >	2	$3.59	Available to order	2 Ships within 3–7 business days
10	T2040399 Screw, Fork Gaiter Clip, M4	Screw, Fork Gaiter Clip, M4	2	$3.59	Available to order	2 Ships within 3–7 business days
11	T2047105 Piston, Damper	Piston, Damper	2	$131.17	Available to order	2 Ships within 3–7 business days
12	T2040347 Fork Tube, Inner	Fork Tube, Inner	2	$271.12	Available to order	2 Ships within 3–7 business days
13	T2047104 Oil Lock, Fork	Oil Lock, Fork	2	$10.18	Out of Stock	Notify Me
14	T2040397 Fork Tube, LH, Outer	Fork Tube, LH, Outer	1	$545.70	Available to order	1 Ships within 3–7 business days
15	T2040398 Fork Tube, RH, Outer	Fork Tube, RH, Outer	1	$545.70	Available to order	1 Ships within 3–7 business days
16	T2047109 Dust Seal, Fork	Dust Seal, Fork	2	$18.30	Backorder — Late August 2026	2
17	T2040248 Snap Ring	Snap Ring	2	$6.73	Available to order	2 Ships within 3–7 business days
18	T2047115 Seal, Oil	Seal, Oil	2	$20.56	Available to order	2 Ships within 3–7 business days
19	T2047107 Ring, Back Up	Ring, Back Up	2	$4.36	Backorder — Late August 2026	2
20	T2047106 Guide, Bushing	Guide, Bushing	2	$13.51	Available to order	2 Ships within 3–7 business days
21	T2045045 Washer, Sealing B	Washer, Sealing B	2	$1.13	Available to order	2 Ships within 3–7 business days
22	T2045046 Capscrew, Oil Lock	Capscrew, Oil Lock	2	$10.63	Available to order	2 Ships within 3–7 business days
23	T3050130 Capscrew, M8 x 40	Capscrew, M8 x 40	1	$7.62	Available to order	1 Ships within 3–7 business days
24	T2049003 Yoke assembly	Yoke assembly	1	$473.26	Available to order	1 Ships within 3–7 business days
25	T3050083 Capscrew, M10x22, S/S	Capscrew, M10x22, S/S	2	$9.49	Available to order	2 Ships within 3–7 business days
26	T3600063 Seal, Dust, Dia 55	Seal, Dust, Dia 55	1	$8.34	Available to order	1 Ships within 3–7 business days
27	T3800052 Bearing, Sac, 55 x 30 x 17	Bearing, Sac, 55 x 30 x 17	1	$33.95	Available to order	1 Ships within 3–7 business days
28	T2140210 Adjuster Nut, Upper	Adjuster Nut, Upper	1	$3.39	Available to order	1 Ships within 3–7 business days
29	T3800054 Bearing, Sac, 26 47 15	Bearing, Sac, 26 47 15	1	$60.13	Available to order	1 Ships within 3–7 business days
30	T3600062 Seal, Dust Dia 47	Seal, Dust Dia 47	1	$17.68	Available to order	1 Ships within 3–7 business days
31	T2047036 Dust cover	Dust cover	1	$1.40	Backorder — Mid August 2026	1
32	T2041265 Adjuster Nut, Lower	Adjuster Nut, Lower	1	$13.45	Available to order	1 Ships within 3–7 business days
33	T3450060 Cap	Cap	1	$1.40	Available to order	1 Ships within 3–7 business days
