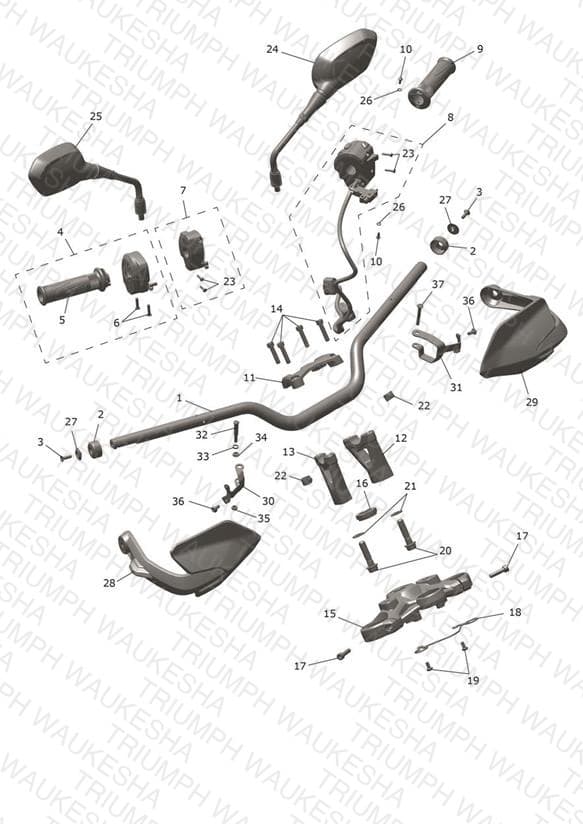

Handlebars, Top Yoke & Mirrors
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2043367 Handlebar, Tapered, Black | Handlebar, Tapered, Black | 1 | $189.30 | Out of Stock | Notify Me |
| 2 | T2046667 Finisher, Bar End, Black | Finisher, Bar End, Black | 2 | $32.60 | Available to order | 2 |
| 3 | T3330923 Screw, Csk, M6 x 20, Slv, Enc | Screw, Csk, M6 x 20, Slv, Enc | 2 | $2.37 | Available to order | 2 |
| 4 | T2046075 APS Sensor, Assy | APS Sensor, Assy | 1 | $266.39 | Available to order | 1 |
| 5 | T2044707 Grip, RH | Grip, RH | 1 | $26.65 | Available to order | 1 |
| 6 | T3050314 Bolt, M5 x 20 | Bolt, M5 x 20 | 2 | $7.02 | Available to order | 2 |
| 7 | T2043616 Switchcube, RH | Switchcube, RH | 1 | $142.01 | Available to order | 1 |
| 8 | T2044572 Switchcube, LH, Cruise, DRL | Switchcube, LH, Cruise, DRL All Except CA, CN & UC | 1 | $304.21 | Available to order | 1 |
| 8 | T2045446 Switchcube, LH | Switchcube, LH CA, CN & UC Only | 1 | $386.44 | Available to order | 1 |
| 9 | T2045139 Grip, Handlebar, LH | Grip, Handlebar, LH | 1 | $26.65 | Backorder — Early September 2026 | 1 |
| 10 | T3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD | Screw, S/Tap, Pan/Hd, M4 x 10, HD | 2 | $7.14 | Available to order | 2 |
| 11 | T2044709 Handlebar Clamp, Forge | Handlebar Clamp, Forge | 1 | $100.45 | Out of Stock | Notify Me |
| 12 | T2043325 Handlebar Riser, LH | Handlebar Riser, LH | 1 | $80.91 | Available to order | 1 |
| 13 | T2043326 Handlebar Riser, RH | Handlebar Riser, RH | 1 | $80.91 | Available to order | 1 |
| 14 | T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv | Screw, Cap/Hd, M8 x 1.25 x 35, Slv | 4 | $4.74 | Available to order | 4 |
| 15 | T2043216 Upper Yoke | Upper Yoke | 1 | $264.17 | Out of Stock | Notify Me |
| 16 | T2041120 Nut, Upper Yoke, Black | Nut, Upper Yoke, Black | 1 | $24.43 | Available to order | 1 |
| 17 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 2 | $4.74 | Available to order | 2 |
| 18 | T2044725 Wire Guide | Wire Guide | 1 | $26.65 | Backorder — Mid August 2026 | 1 |
| 19 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 20 | T3334690 Screw, HHF, M12 x 50 | Screw, HHF, M12 x 50 | 2 | $5.65 | Available to order | 2 |
| 21 | T3550314 Washer, M12, Hardened | Washer, M12, Hardened | 2 | $3.59 | Available to order | 2 |
| 22 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 2 | $3.90 | Available to order | 2 |
| 23 | T3331857 Screw, Torx, M4 x 0.7 x 18, Blk | Screw, Torx, M4 x 0.7 x 18, Blk | 4 | $1.78 | Available to order | 4 |
| 24 | T2060160 Mirror, LHS | Mirror, LHS | 1 | $126.04 | Available to order | 1 |
| 25 | T2060159 Mirror, RHS | Mirror, RHS | 1 | $127.93 | Available to order | 1 |
| 26 | T3550500 Washer, 4.3 x 9.0 x 0.8 | Washer, 4.3 x 9.0 x 0.8 | 2 | $1.72 | Available to order | 2 |
| 27 | T2308627 Spacer, Csk | Spacer, Csk TH Only | 2 | $9.02 | Available to order | 2 |
| 28 | T9638840 Handguard Ext Assy, RH | Handguard Ext Assy, RH TH Only | 1 | $55.02 | Backorder — Mid August 2026 | 1 |
| 29 | T9638839 Handguard Ext Assy, LH | Handguard Ext Assy, LH TH Only | 1 | $55.02 | Out of Stock | Notify Me |
| 30 | T9709014 Bracket, Handguard, RHS | Bracket, Handguard, RHS TH Only | 1 | $61.45 | Available to order | 1 |
| 31 | T9709013 Bracket, Handguard, LHS | Bracket, Handguard, LHS TH Only | 1 | $61.45 | Available to order | 1 |
| 32 | T2021568 Bolt, Pivot, M6, Dia 7.9 | Bolt, Pivot, M6, Dia 7.9 TH Only | 1 | $12.55 | Available to order | 1 |
| 33 | T2309027 Sleeve, 8.2 x 11.0 x 2.3 | Sleeve, 8.2 x 11.0 x 2.3 TH Only | 1 | $13.33 | Available to order | 1 |
| 34 | T9631756 Sleeve, Flgd, 6.2 x 9.7 x 3.75 | Sleeve, Flgd, 6.2 x 9.7 x 3.75 TH Only | 1 | $10.34 | Available to order | 1 |
| 35 | T2046521 Nut, Pivot Bolt | Nut, Pivot Bolt TH Only | 1 | $1.21 | Available to order | 1 |
| 36 | T3331040 Screw, TPT, Pan/Hd, M6 x 12, Slv | Screw, TPT, Pan/Hd, M6 x 12, Slv TH Only | 2 | $2.37 | Available to order | 2 |
| 37 | T2309213 Clutch Pivot Bold | Clutch Pivot Bold TH Only | 1 | $12.38 | Available to order | 1 |
