Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics

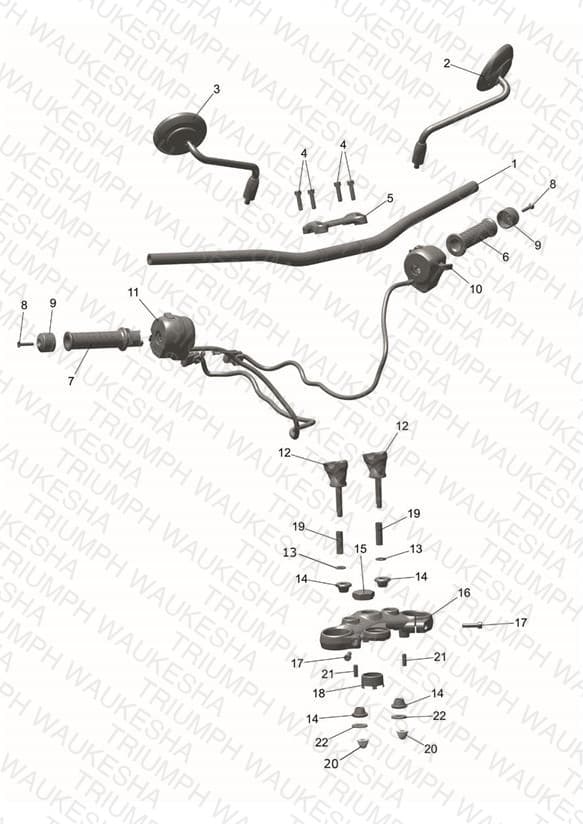

Loading schematic...
Handlebars & Mirrors
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA151063 Handlebar | Handlebar | 1 | $102.42 | Available to order | 1 |
| 2 | TA231600 Mirror, LH | Mirror, LH | 1 | $126.19 | Available to order | 1 |
| 3 | TA231601 Mirror, RH | Mirror, RH | 1 | $126.19 | Available to order | 1 |
| 4 | LAC00232 Bolt, Socket, M8 x 1.25 | Bolt, Socket, M8 x 1.25 | 4 | $2.03 | Available to order | 4 |
| 5 | 56TA6B33 Handlebar Holder, Upper, TA151048, Blk | Handlebar Holder, Upper, TA151048, Blk | 1 | $22.82 | Available to order | 1 |
| 6 | TA151002 Grip, LH | Grip, LH | 1 | $26.78 | Available to order | 1 |
| 7 | TA151017 Grip Assy, RH | Grip Assy, RH | 1 | $13.82 | Available to order | 1 |
| 8 | LBC00019 Bolt, Socket, M6 x 1 | Bolt, Socket, M6 x 1 | 2 | $0.57 | Available to order | 2 |
| 9 | TA151094 End Cap | End Cap | 2 | $5.71 | Available to order | 2 |
| 10 | TA401401 Control Switch, LH | Control Switch, LH All except US | 1 | $106.00 | Available to order | 1 |
| 10 | TA401416 Control Switch, LH | Control Switch, LH US only | 1 | $109.72 | Available to order | 1 |
| 11 | TA401402 Control Switch, RH | Control Switch, RH | 1 | $240.93 | Out of Stock | Notify Me |
| 12 | 56TA6AG1 Handle Holder Lwr Blk | Handle Holder Lwr Blk | 2 | $54.23 | Available to order | 2 |
| 13 | 39258811 Plain Washer | Plain Washer | 2 | $0.40 | Available to order | 2 |
| 14 | TA151015 Damper | Damper | 4 | $2.03 | Available to order | 4 |
| 15 | LCE00006 Nut Cap M25 x 1 | Nut Cap M25 x 1 | 1 | $30.87 | Available to order | 1 |
| 16 | TA151084 Bracket, Upper | Bracket, Upper | 1 | $228.77 | Backorder — Early September 2026 | 1 |
| 17 | LAC00229 Bolt, Socket, M8 x 1.25 | Bolt, Socket, M8 x 1.25 | 2 | $1.01 | Available to order | 2 |
| 18 | TA181307 Cover Switch Ignition Upper | Cover Switch Ignition Upper | 1 | $1.69 | Available to order | 1 |
| 19 | TA151026 Spacer | Spacer | 2 | $2.03 | Available to order | 2 |
| 20 | DG181087 U-Nut, Cap, M10 x 1.25 | U-Nut, Cap, M10 x 1.25 | 2 | $2.16 | Available to order | 2 |
| 21 | LHD00010 Pin, Dowel, Dia 8 | Pin, Dowel, Dia 8 | 2 | $0.67 | Available to order | 2 |
| 22 | 39242511 Plain Washer | Plain Washer | 2 | $0.40 | Available to order | 2 |
