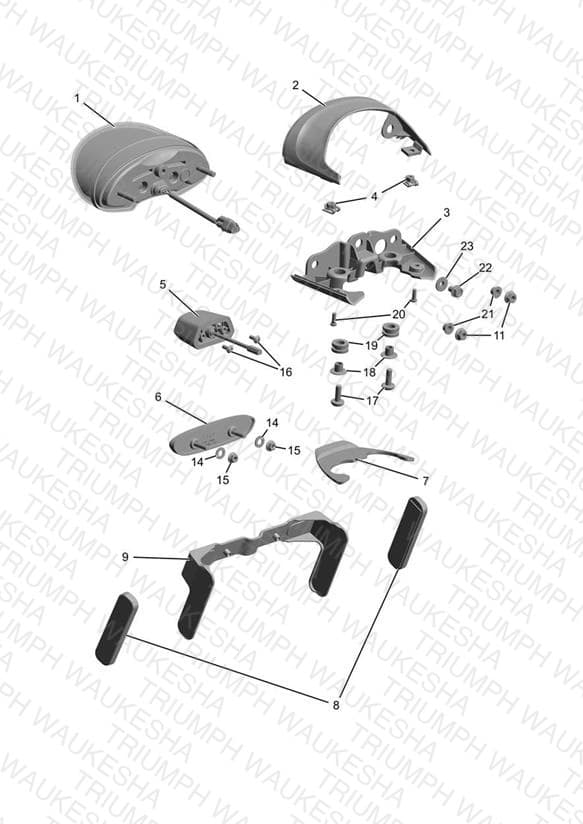

Rear Light - US Only
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA401001 Tail Lamp | Tail Lamp | 1 | $47.26 | Available to order | 1 |
| 2 | TA181469 Cover, Tail Lamp, Upper | Cover, Tail Lamp, Upper | 1 | $14.46 | Out of Stock | Notify Me |
| 3 | TA181470 Cover, Tail Lamp, Lower | Cover, Tail Lamp, Lower | 1 | $14.46 | Out of Stock | Notify Me |
| 4 | DK121024 Nut Clip M4 | Nut Clip M4 | 2 | $0.60 | Out of Stock | Notify Me |
| 5 | TA401006 Number Plate Lamp | Number Plate Lamp | 1 | $44.81 | Available to order | 1 |
| 6 | TA401014 Reflex Reflector | Reflex Reflector | 1 | $9.22 | Available to order | 1 |
| 7 | TA181473 Pad | Pad | 1 | $6.02 | Out of Stock | Notify Me |
| 8 | TA401016 Reflex Reflector | Reflex Reflector | 2 | $6.76 | Available to order | 2 |
| 9 | TA181447 Bracket, Reflex Reflector | Bracket, Reflex Reflector | 1 | $12.20 | Available to order | 1 |
| 11 | KCGA0606 Nut, Hex, Flanged | Nut, Hex, Flanged | 2 | $0.10 | Available to order | 2 |
| 12 | JU113834 Spacer | Spacer | 2 | $0.60 | Out of Stock | Notify Me |
| 14 | KDBB0613 Plain Washer | Plain Washer | 2 | $0.10 | Out of Stock | Notify Me |
| 15 | KCGA0505 Nut, Hex Flgd | Nut, Hex Flgd | 2 | $0.10 | Backorder — Late September 2026 | 2 |
| 16 | LBR00003 Screw, Tapping, Pan | Screw, Tapping, Pan | 2 | $0.10 | Out of Stock | Notify Me |
| 17 | LBU00190 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 | 2 | $0.91 | Available to order | 2 |
| 18 | JP181280 Collar | Collar | 2 | $0.67 | Available to order | 2 |
| 19 | JP181279 Grommet | Grommet | 2 | $0.34 | Available to order | 2 |
| 20 | KBBA0414 Screw, Pan, Cross M4 x 0.7 | Screw, Pan, Cross M4 x 0.7 | 2 | $0.60 | Out of Stock | Notify Me |
| 21 | JH181263 Collar | Collar | 2 | $0.60 | Out of Stock | Notify Me |
| 22 | KADA0610 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 1 | $0.22 | Available to order | 1 |
| 23 | JP181232 Sleeve, Radiator | Sleeve, Radiator | 1 | $1.19 | Out of Stock | Notify Me |
