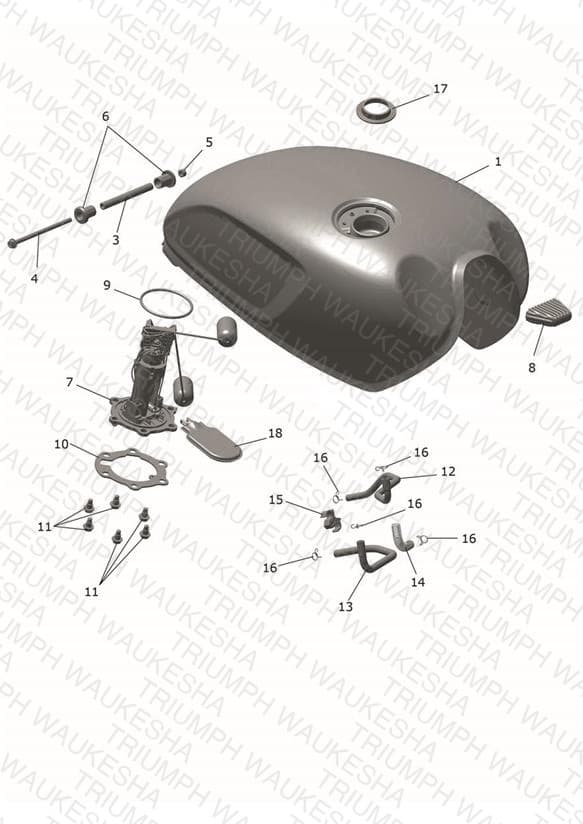

Fuel Tank & Pump
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 52TA0961 Fuel Tank, Aluminium Silver inc. Decal | Fuel Tank, Aluminium Silver inc. Decal $$ | 1 | $596.96 | Out of Stock | Notify Me |
| 1 | 52TA1241 Fuel Tank, Racing Yellow inc. Decal | Fuel Tank, Racing Yellow inc. Decal $$ | 1 | $596.96 | Backorder — Mid August 2026 | 1 |
| 1 | 52TA1242 Fuel Tank, Phantom Black with Decal | Fuel Tank, Phantom Black with Decal $$ | 1 | $596.96 | Out of Stock | Notify Me |
| 3 | TA171036 Spacer | Spacer | 1 | $1.69 | Available to order | 1 |
| 4 | KADF06B5 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 $$ | 1 | $0.68 | Out of Stock | Notify Me |
| 5 | KCHC0608 Nut, Nyloc, M6 x 1 | Nut, Nyloc, M6 x 1 $$ | 1 | $0.60 | Out of Stock | Notify Me |
| 6 | TA171037 Grommet | Grommet | 2 | $1.01 | Available to order | 2 |
| 7 | TA171817 Fuel Pump | Fuel Pump $$ | 1 | $384.96 | Out of Stock | Notify Me |
| 8 | TA171029 Damper | Damper | 1 | $4.96 | Available to order | 1 |
| 9 | YTA04028 Fuel Pump Seal | Fuel Pump Seal | 1 | $3.78 | Available to order | 1 |
| 10 | TA171811 Fuel Pump Plate | Fuel Pump Plate | 1 | $4.92 | Backorder — Mid August 2026 | 1 |
| 11 | LAD00154 Bolt, Flange, M6 x 1 x 12.8, Brt x Step | Bolt, Flange, M6 x 1 x 12.8, Brt x Step | 6 | $0.46 | Backorder — Late September 2026 | 6 |
| 12 | TA171602 Pipe, Tank - Connector | Pipe, Tank - Connector All Expt US, BR & ID | 1 | $3.98 | Available to order | 1 |
| 12 | TA171825 Pipe Fuel | Pipe Fuel $$ US & BR Only | 1 | $6.02 | Out of Stock | Notify Me |
| 13 | TA171810 Fuel Pipe | Fuel Pipe $$ US & BR Only | 1 | $6.02 | Out of Stock | Notify Me |
| 14 | JC141034 Spring | Spring | 1 | $0.41 | Out of Stock | Notify Me |
| 15 | JG131857 Clip, Separator | Clip, Separator | 1 | $4.96 | Available to order | 1 |
| 16 | JG171030 Clamp | Clamp | 5 | $0.34 | Available to order | 5 |
| 17 | YTA15012 Fuel Tank Cap Seal | Fuel Tank Cap Seal Added - as on CAD exploded view | 1 | $15.06 | Out of Stock | Notify Me |
| 18 | YTA04029 Fuel Filter | Fuel Filter | 1 | $23.74 | Available to order | 1 |
| 19 | TA171822 Fuel Pipe | Fuel Pipe $$ | 1 | $6.02 | Out of Stock | Notify Me |
