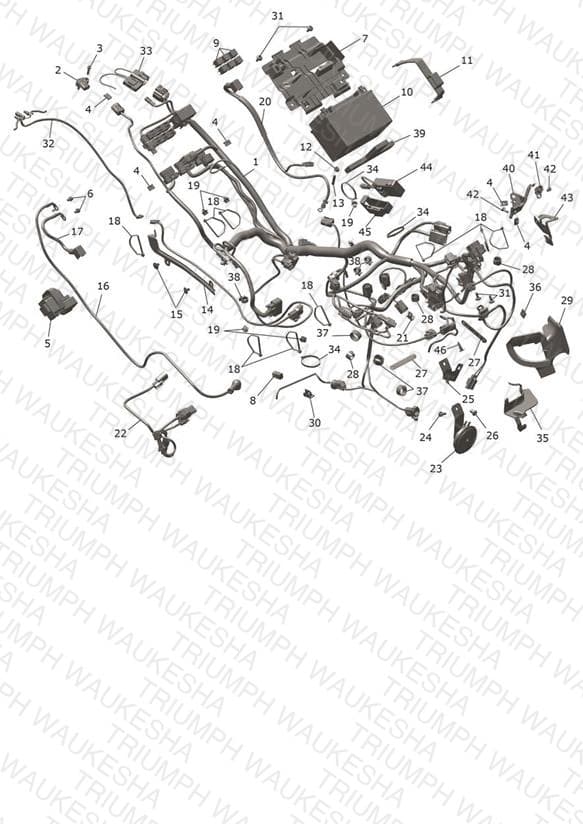

Electrical System
Parts (55)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2502476 Main Harness | Main Harness | 1 | $683.83 | Out of Stock | Notify Me |
| 2 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 1 | $139.14 | Available to order | 1 |
| 3 | T3050346 Screw, Cap/Hd, M5 x 20, Slv | Screw, Cap/Hd, M5 x 20, Slv | 1 | $2.63 | Available to order | 1 |
| 4 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 5 | $4.84 | Available to order | 5 |
| 5 | T1310120 Starter, Solenoid, Fused | Starter, Solenoid, Fused | 1 | $61.20 | Available to order | 1 |
| 5a | T2500805 Fuse, 30A | Fuse, 30A | 1 | $1.50 | Available to order | 1 |
| 6 | T3205077 Bolt, HHF, Lghtd, M6 x 8, Slv | Bolt, HHF, Lghtd, M6 x 8, Slv | 2 | $5.20 | Available to order | 2 |
| 7 | T2503949 Bracket, ECU, Moulding | Bracket, ECU, Moulding | 1 | $20.23 | Out of Stock | Notify Me |
| 8 | T2505049 Blanking Plug, O2 Sensor | Blanking Plug, O2 Sensor | 2 | $7.08 | Available to order | 2 |
| 9 | T2507729 Relay, Ultra Micro, ISO 280 | Relay, Ultra Micro, ISO 280 | 6 | $8.02 | Available to order | 6 |
| 10 | T2500183 Battery | Battery All Markets Except EF/GR/BR/JP | 1 | $120.70 | Available to order | 1 |
| 10 | T2504606 Spares Kit, Battery | Spares Kit, Battery BR Only | 1 | $125.73 | Out of Stock | Notify Me |
| 10 | T2505583 Battery, 12V, 8,6AH, FCB | Battery, 12V, 8,6AH, FCB JP Only - Includes Pad, item 39 | 1 | $214.77 | Available to order | 1 |
| 10 | T2500883 Battery | Battery EF/GR Markets Only | 1 | $111.01 | Unavailable | 1 |
| 11 | T2501789 Battery Strap | Battery Strap | 1 | $11.24 | Available to order | 1 |
| 12 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.71 | Available to order | 1 |
| 13 | T3100050 Stud, M6 x 28, Enc | Stud, M6 x 28, Enc | 1 | $3.93 | Available to order | 1 |
| 14 | T2505043 Conduit, Swingarm | Conduit, Swingarm | 1 | $8.35 | Available to order | 1 |
| 15 | T3450101 Button, Firtree, M6 x 11 | Button, Firtree, M6 x 11 | 2 | $1.50 | Out of Stock | Notify Me |
| 16 | T2505073 Lead, Starter | Lead, Starter | 1 | $24.88 | Available to order | 1 |
| 17 | T2505778 Lead, Battery, Positive | Lead, Battery, Positive | 1 | $12.62 | Available to order | 1 |
| 18 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 9 | $0.95 | Available to order | 9 |
| 19 | T3704444 Clip, Cable Tie, Fir Tree | Clip, Cable Tie, Fir Tree | 5 | $2.65 | Backorder — Early October 2026 | 5 |
| 20 | T2505779 Earth Lead | Earth Lead | 1 | $27.93 | Backorder — Mid October 2026 | 1 |
| 21 | T2508250 Tab, Connector, Crank Pos | Tab, Connector, Crank Pos | 1 | $10.19 | Backorder — Mid October 2026 | 1 |
| 22 | T2510000 Engine Subharness | Engine Subharness | 1 | $79.13 | Available to order | 1 |
| 23 | T2505171 Horn Assy, 440HZ | Horn Assy, 440HZ All Except "IN" | 1 | $44.71 | Available to order | 1 |
| 23 | T2500113 Horn Assembly, Hi Tone | Horn Assembly, Hi Tone IN Only | 1 | $41.82 | Available to order | 1 |
| 24 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 1 | $2.79 | Available to order | 1 |
| 26 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv IN Only | 1 | $1.84 | Available to order | 1 |
| 27 | T3700252 Rubber Band, 88mm | Rubber Band, 88mm | 2 | $10.21 | Available to order | 2 |
| 28 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 3 | $4.15 | Available to order | 3 |
| 29 | T2509680 Relay, Grommet | Relay, Grommet | 1 | $1.53 | Out of Stock | Notify Me |
| 30 | T2503998 Bracket, Harness, Hego Sensor | Bracket, Harness, Hego Sensor | 1 | $8.30 | Out of Stock | Notify Me |
| 31 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 4 | $5.24 | Available to order | 4 |
| 32 | T2503338 Subharness, Rear Number Plate | Subharness, Rear Number Plate | 1 | $44.40 | Available to order | 1 |
| 33 | T2503437 Auxilary Fly Lead, JP | Auxilary Fly Lead, JP JP Only | 1 | $24.88 | Available to order | 1 |
| 34 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 3 | $1.01 | Available to order | 3 |
| 36 | T3450345 Clip, Wire, Self Adhesive | Clip, Wire, Self Adhesive | 1 | $4.46 | Available to order | 1 |
| 37 | T3700212 Band, Rubber | Band, Rubber | 3 | $3.50 | Available to order | 3 |
| 38 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 3 | $3.45 | Available to order | 3 |
| 39 | T2509978 Pad, Battery | Pad, Battery JP Only - Included with JP Battery Spares Kit Only, Item 10 | 1 | $9.81 | Available to order | 1 |
| 40 | T2507728 Relay, Changeover | Relay, Changeover | 1 | $19.19 | Available to order | 1 |
| 41 | T1290088 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $63.55 | Available to order | 1 |
| 42 | T3332648 Screw, Btn/Hd, M5 x 14, Slv | Screw, Btn/Hd, M5 x 14, Slv | 2 | $1.04 | Available to order | 2 |
| 43 | T2505889 ECU Cover | ECU Cover | 1 | $21.08 | Out of Stock | Notify Me |
| 44 | T2508989 Connectivity Module | Connectivity Module | 1 | $355.51 | Available to order | 1 |
| 45 | T2508990 Jacket, Connectivity Module | Jacket, Connectivity Module | 1 | $14.09 | Available to order | 1 |
| 46 | T2505544 Retention Cap | Retention Cap | 1 | $2.81 | Out of Stock | Notify Me |
| 47 | T2501302 Fuse, Mini, 2A | Fuse, Mini, 2A | 3 | $2.40 | Out of Stock | Notify Me |
| 47 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 3 | $5.05 | Available to order | 3 |
| 47 | T2505093 Fuse, Mini, 3A | Fuse, Mini, 3A | 1 | $0.95 | Out of Stock | Notify Me |
| 47 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 1 | $5.05 | Available to order | 1 |
| 47 | T2501315 Fuse, Mini, 15A | Fuse, Mini, 15A | 4 | $5.05 | Available to order | 4 |
| 47 | T2501325 Fuse, Mini, 25A | Fuse, Mini, 25A | 1 | $5.05 | Available to order | 1 |
