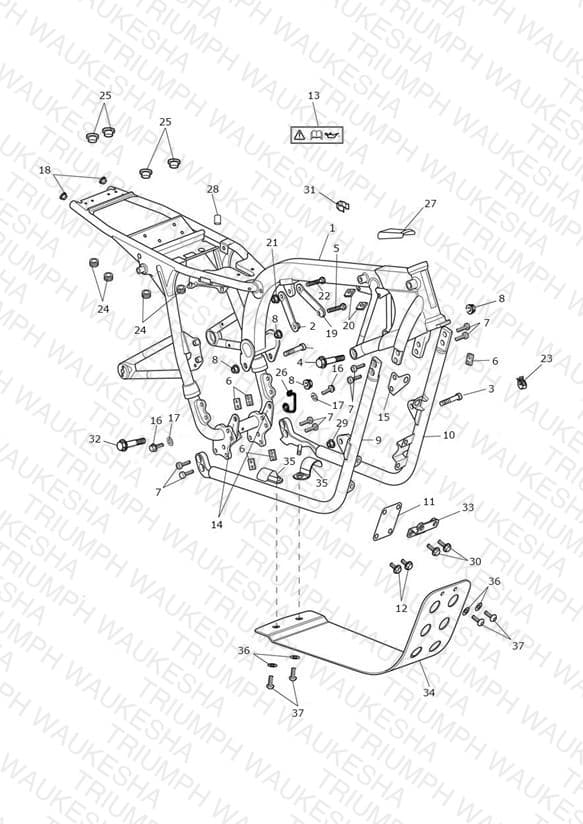

Main Frame & Fittings; 606027 > **See Tech News 149**
Parts (48)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2075307 Frame Assy, World | Frame Assy, World > 713426 - All Mkts Except US, TW, AU & CA | 1 | $2288.51 | Out of Stock | Notify Me |
| 1 | T2070779 Frame Assy, World, 90% Gloss | Frame Assy, World, 90% Gloss 713427 > - All Mkts Except US, TW, AU & CA | 1 | $2288.51 | Out of Stock | Notify Me |
| 1 | T2075308 Frame Assy, Americas | Frame Assy, Americas > 713426 - US 49 States | 1 | $2288.51 | Out of Stock | Notify Me |
| 1 | T2070783 Frame Assy, Americas, 90% Gloss | Frame Assy, Americas, 90% Gloss 713427 > - US 49 States | 1 | $2288.51 | Out of Stock | Notify Me |
| 1 | T2075309 Frame Assy, Canada | Frame Assy, Canada > 713426 - CA | 1 | $2288.51 | Out of Stock | Notify Me |
| 1 | T2070789 Frame Assy, Canada, 90 % Gloss | Frame Assy, Canada, 90 % Gloss 713427 > - CA | 1 | $2288.51 | Out of Stock | Notify Me |
| 1 | T2075316 Frame Assy, California | Frame Assy, California > 713426 - US CAL | 1 | $2288.51 | Out of Stock | Notify Me |
| 1 | T2070784 Frame Assy, California, 90% Gloss | Frame Assy, California, 90% Gloss 713427 > - US CAL | 1 | $2288.51 | Out of Stock | Notify Me |
| 1 | T2075342 Frame Assy, TW | Frame Assy, TW > 713426 - TW | 1 | $2922.21 | Out of Stock | Notify Me |
| 1 | T2070791 Frame Assy, TW, 90% Gloss | Frame Assy, TW, 90% Gloss 713427 > - TW | 1 | $2288.51 | Out of Stock | Notify Me |
| 1 | T2070796 Frame Assy, Australia, 90% Gloss | Frame Assy, Australia, 90% Gloss 713427 > - AU | 1 | $2288.51 | Out of Stock | Notify Me |
| 2 | T2075057 Bracket | Bracket | 1 | $31.54 | Available to order | 1 |
| 3 | T3334635 Screw, HHF, M12 x 1.25 x 130 | Screw, HHF, M12 x 1.25 x 130 | 2 | $9.22 | Available to order | 2 |
| 4 | T3332528 Bolt, TX, M12 x 170, 10.9, Slv | Bolt, TX, M12 x 170, 10.9, Slv | 1 | $7.42 | Available to order | 1 |
| 5 | T3151021 Bolt, HHF, M12 x 55, 10.9, Slv | Bolt, HHF, M12 x 55, 10.9, Slv | 1 | $6.14 | Available to order | 1 |
| 6 | T2075055 Bracket, M10 | Bracket, M10 | 5 | $15.12 | Available to order | 5 |
| 7 | T3203206 Screw, Cap/Hd, M10 x 35, Slv | Screw, Cap/Hd, M10 x 35, Slv | 10 | $6.67 | Available to order | 10 |
| 8 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 5 | $6.07 | Available to order | 5 |
| 9 | T2075271 Cradle, RH, Painted | Cradle, RH, Painted > 713426 | 1 | $256.68 | Out of Stock | Notify Me |
| 9 | T2070679 Cradle, RH, Painted, 90% Gloss | Cradle, RH, Painted, 90% Gloss 713427 > | 1 | $256.68 | Available to order | 1 |
| 10 | T2075241 Cradle, LH, Painted | Cradle, LH, Painted > 713426 | 1 | $256.68 | Available to order | 1 |
| 10 | T2070692 Cradle, LH, Painted, 90% Gloss | Cradle, LH, Painted, 90% Gloss 713427 > | 1 | $275.65 | Available to order | 1 |
| 11 | T2075056 Plate stiffener | Plate stiffener | 1 | $51.31 | Available to order | 1 |
| 12 | T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv | Bolt, HHF, Lghtd, M8 x 16, Slv | 2 | $1.62 | Available to order | 2 |
| 13 | T3900136 Label, Engine Oil | Label, Engine Oil | 1 | $2.85 | Available to order | 1 |
| 14 | T2075008 Engine mounting | Engine mounting | 2 | $35.28 | Out of Stock | Notify Me |
| 15 | T2075034 Bracket | Bracket | 1 | $13.45 | Available to order | 1 |
| 16 | T3332162 Screw, M10 X 30, Enc | Screw, M10 X 30, Enc | 2 | $6.55 | Available to order | 2 |
| 17 | T3555009 Washer, 10.5 x 21 x 1.22 | Washer, 10.5 x 21 x 1.22 | 2 | $1.13 | Available to order | 2 |
| 18 | T3450060 Cap | Cap | 2 | $1.40 | Available to order | 2 |
| 19 | T2075068 Bracket | Bracket | 1 | $31.54 | Out of Stock | Notify Me |
| 20 | T3351002 Nut, Captive, U-Type, M5, Slv | Nut, Captive, U-Type, M5, Slv | 2 | $2.37 | Available to order | 2 |
| 21 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 1 | $2.45 | Available to order | 1 |
| 22 | T3202319 Bolt, HHF, M8 x 35, Slv | Bolt, HHF, M8 x 35, Slv | 1 | $2.63 | Available to order | 1 |
| 23 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 2 | $3.24 | Available to order | 2 |
| 24 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $2.85 | Available to order | 4 |
| 25 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 26 | T2072323 Guide, Brake Pipe Rear | Guide, Brake Pipe Rear | 1 | $11.88 | Backorder — Late August 2026 | 1 |
| 27 | T2072702 Rubbing Strip | Rubbing Strip | 1 | $52.29 | Out of Stock | Notify Me |
| 28 | T1241012 Cap, Vacuum Connection | Cap, Vacuum Connection | 1 | $2.95 | Available to order | 1 |
| 30 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 2 | $1.62 | Available to order | 2 |
| 31 | T3700233 Clip, Brake Hose | Clip, Brake Hose | 1 | $5.88 | Available to order | 1 |
| 32 | T3151011 Bolt, HHF, M12 x 172, 10.9, Slv | Bolt, HHF, M12 x 172, 10.9, Slv | 1 | $5.88 | Available to order | 1 |
| 33 | T2075154 Bracket Assy, Front, Skid Plate | Bracket Assy, Front, Skid Plate | 1 | $32.17 | Available to order | 1 |
| 34 | T2075156 Skid Plate | Skid Plate | 1 | $79.00 | Obsolete | View Details |
| 35 | T2075158 Bracket Assy, Rear, Skid Plate | Bracket Assy, Rear, Skid Plate * PART NO LONGER AVAILABLE * | 2 | $12.75 | Obsolete | View Details |
| 36 | T3550184 Washer, Hardened, 8.2 x 18.7 x 2 | Washer, Hardened, 8.2 x 18.7 x 2 | 4 | $2.25 | Available to order | 4 |
| 37 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 4 | $3.50 | Available to order | 4 |
