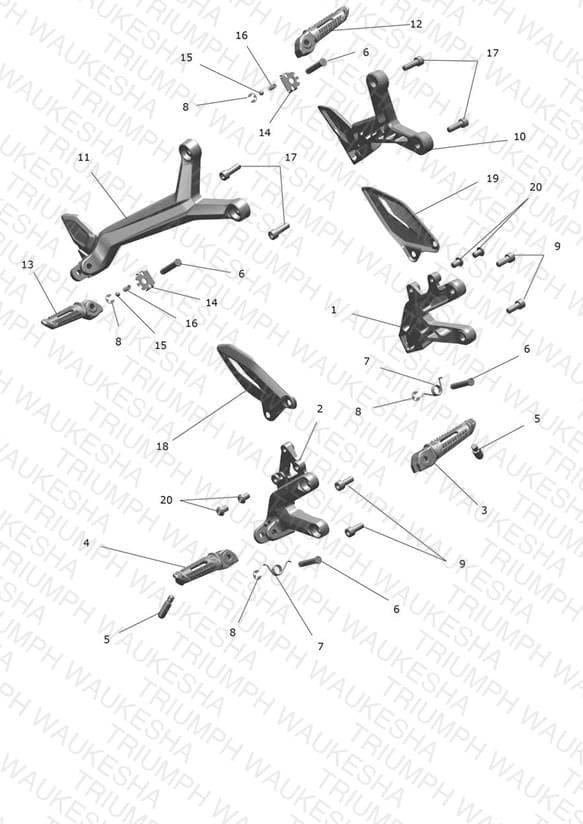

Foot Controls
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2083631 Control Plate, LH | Control Plate, LH | 1 | $77.56 | Out of Stock | Notify Me |
| 2 | T2083632 Control Plate, RH | Control Plate, RH | 1 | $77.56 | Available to order | 1 |
| 3 | T2082830 Footrest, Front, LH | Footrest, Front, LH All Except IN. | 1 | $77.41 | Backorder — Mid October 2026 | 1 |
| 3 | T2089803 Footrest, Front, LH | Footrest, Front, LH IN only. | 1 | $77.32 | Available to order | 1 |
| 4 | T2082831 Footrest, Front, RH | Footrest, Front, RH All Except IN. | 1 | $77.41 | Available to order | 1 |
| 4 | T2089804 Footrest, Front, RH | Footrest, Front, RH IN only. | 1 | $77.32 | Available to order | 1 |
| 5 | T2081067 Peg, Bank Angle, 25mm | Peg, Bank Angle, 25mm | 2 | $14.59 | Available to order | 2 |
| 6 | T2080546 Pin, Pivot, Footrest | Pin, Pivot, Footrest | 4 | $6.98 | Available to order | 4 |
| 7 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.70 | Available to order | 2 |
| 8 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 4 | $3.04 | Available to order | 4 |
| 9 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 4 | $7.90 | Available to order | 4 |
| 10 | T2086605 Footrest Hanger, LH | Footrest Hanger, LH | 1 | $136.40 | Available to order | 1 |
| 11 | T2086606 Footrest Hanger, RH | Footrest Hanger, RH | 1 | $136.40 | Available to order | 1 |
| 12 | T2088202 Footrest, Rear, LH | Footrest, Rear, LH All Except IN. | 1 | $35.95 | Backorder — Early November 2026 | 1 |
| 12 | T2089505 Rear Footrest, LH | Rear Footrest, LH IN only. | 1 | $66.65 | Available to order | 1 |
| 13 | T2088203 Footrest, Rear, RH | Footrest, Rear, RH All Except IN. | 1 | $35.95 | Out of Stock | Notify Me |
| 13 | T2089504 Rear Footrest, RH | Rear Footrest, RH IN only. | 1 | $66.65 | Backorder — Late October 2026 | 1 |
| 14 | T2081672 Detent Plate | Detent Plate | 2 | $5.65 | Available to order | 2 |
| 15 | T2081675 Detent Ball | Detent Ball | 2 | $2.04 | Available to order | 2 |
| 16 | T2081674 Spring, Detent | Spring, Detent | 2 | $6.81 | Available to order | 2 |
| 17 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 4 | $4.38 | Available to order | 4 |
| 18 | T2083459 Heelguard, RH | Heelguard, RH | 1 | $28.75 | Available to order | 1 |
| 19 | T2083471 Heelguard, LH | Heelguard, LH | 1 | $28.75 | Out of Stock | Notify Me |
| 20 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv | 4 | $1.84 | Available to order | 4 |
