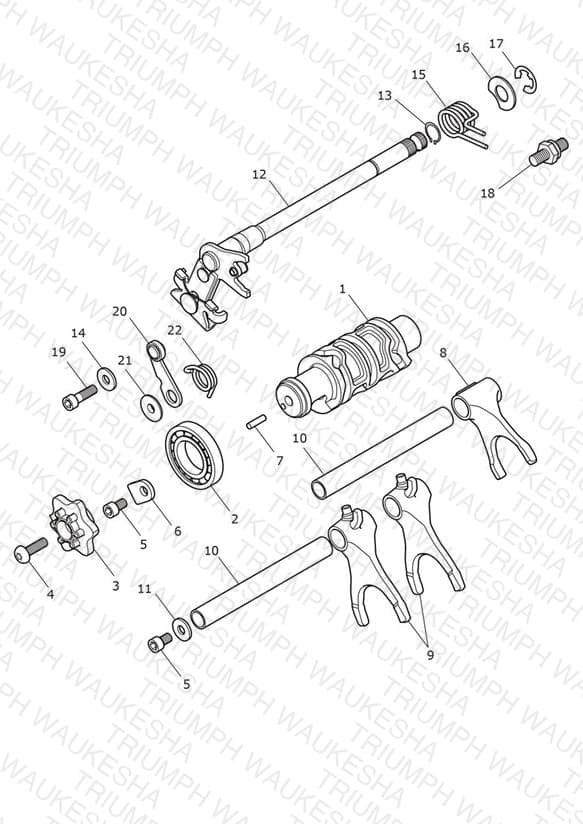

Gear Selector
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1192019 Selector Drum | Selector Drum | 1 | $72.14 | Available to order | 1 |
| 2 | T1190286 Bearing, Ball | Bearing, Ball | 1 | $48.95 | Available to order | 1 |
| 3 | T1197200 Detent Wheel | Detent Wheel | 1 | $35.52 | Available to order | 1 |
| 4 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 1 | $2.10 | Available to order | 1 |
| 5 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 2 | $1.27 | Available to order | 2 |
| 6 | T1190207 Keeper Plate | Keeper Plate | 1 | $20.60 | Available to order | 1 |
| 7 | T3000192 Dowel, 4mm | Dowel, 4mm | 1 | $1.94 | Available to order | 1 |
| 8 | T1192355 Selector Fork, Input, Moly | Selector Fork, Input, Moly | 1 | $107.90 | Available to order | 1 |
| 9 | T1192350 Fork Selector, Output | Fork Selector, Output | 2 | $93.08 | Available to order | 2 |
| 10 | T1190361 Selector Shaft, Hollow, Dia 14 | Selector Shaft, Hollow, Dia 14 | 2 | $29.18 | Available to order | 2 |
| 11 | T3555012 Washer, 6.4 x 16 x 2 | Washer, 6.4 x 16 x 2 | 1 | $4.12 | Available to order | 1 |
| 12 | T1190604 Assy, Gearchange Mechanism | Assy, Gearchange Mechanism | 1 | $138.58 | Backorder — Mid August 2026 | 1 |
| 13 | T3500099 Circlip, External, 14mm shaft | Circlip, External, 14mm shaft | 1 | $1.51 | Available to order | 1 |
| 14 | T3550999 Washer | Washer | 1 | $3.59 | Backorder — Late August 2026 | 1 |
| 15 | T1190999 Gearchange, Return Spring | Gearchange, Return Spring | 1 | $4.01 | Available to order | 1 |
| 16 | T3550134 Thrust Washer, 24.5x12x1.2 | Thrust Washer, 24.5x12x1.2 | 1 | $3.39 | Out of Stock | Notify Me |
| 17 | T3500044 E Circlip | E Circlip | 1 | $0.97 | Available to order | 1 |
| 18 | T1190003 Pin, Spring Abutment | Pin, Spring Abutment | 1 | $18.57 | Available to order | 1 |
| 19 | T3051058 Screw, Cap/HD, M6 x 20, Enc | Screw, Cap/HD, M6 x 20, Enc | 1 | $1.13 | Available to order | 1 |
| 20 | T1190175 Detent Arm Assy | Detent Arm Assy | 1 | $22.25 | Available to order | 1 |
| 21 | T1190192 Collar, Detent Arm | Collar, Detent Arm | 1 | $2.00 | Backorder — Late August 2026 | 1 |
| 22 | T1190139 Spring, Torsional, Detent Arm | Spring, Torsional, Detent Arm | 1 | $5.60 | Out of Stock | Notify Me |
