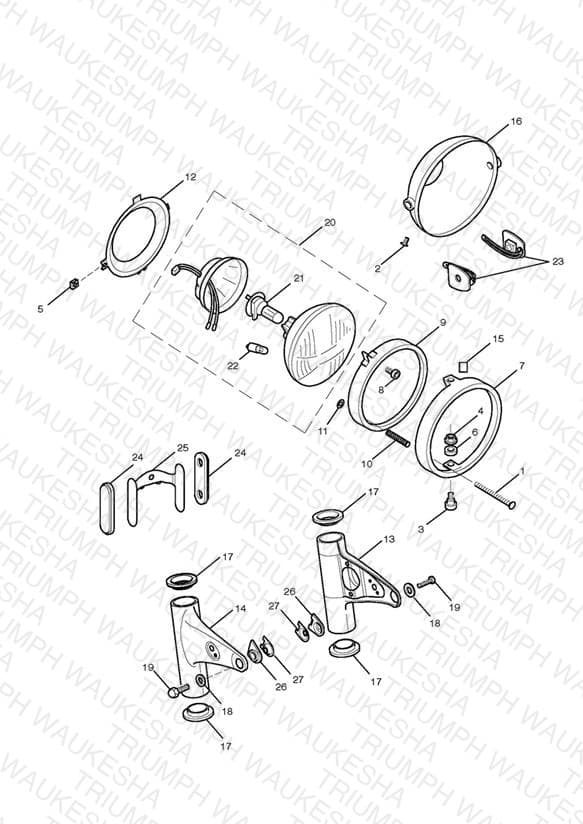

Headlight Assembly
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2700080-T0301 Screw csk head | Screw csk head | 1 | $2.98 | Obsolete | View Details |
| 2 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $6.73 | Available to order | 2 |
| 3 | T2701182 Bolt, Pan/Hd, Shld, M5 x 12, Slv | Bolt, Pan/Hd, Shld, M5 x 12, Slv | 2 | $6.39 | Available to order | 2 |
| 4 | T2700493 Nut & Washer Assy, M5, Slv | Nut & Washer Assy, M5, Slv | 2 | $1.79 | Available to order | 2 |
| 5 | T2700084 Nut, Square, M4 | Nut, Square, M4 | 1 | $3.77 | Available to order | 1 |
| 6 | 2700085-T0301 Washer | Washer | 2 | $3.77 | Backorder — Late August 2026 | 2 |
| 7 | T2700740 Rim, Headlight | Rim, Headlight | 1 | $63.70 | Available to order | 1 |
| 8 | T2701186 Screw, Pan/HD, M3 x 12 | Screw, Pan/HD, M3 x 12 | 2 | $1.13 | Available to order | 2 |
| 9 | T2700741 Rim, Headlight Retainer | Rim, Headlight Retainer | 1 | $57.98 | Available to order | 1 |
| 10 | T2700722 Spring | Spring | 1 | $4.19 | Available to order | 1 |
| 11 | T3551088 Washer, 4.25 x 8 x 0.8 | Washer, 4.25 x 8 x 0.8 | 1 | $0.97 | Available to order | 1 |
| 12 | T2700742 Mounting Ring, Headlight | Mounting Ring, Headlight | 1 | $61.79 | Available to order | 1 |
| 13 | T2700392 Bracket, Headlight, LH | Bracket, Headlight, LH | 1 | $77.91 | Available to order | 1 |
| 14 | T2700393 Bracket, Headlight, RH | Bracket, Headlight, RH | 1 | $77.91 | Available to order | 1 |
| 15 | T3660288 Foam Adhesive | Foam Adhesive | 1 | $7.02 | Backorder — Late August 2026 | 1 |
| 16 | T2700394 Bowl, Headlight, Black | Bowl, Headlight, Black | 1 | $108.34 | Available to order | 1 |
| 17 | T2700461 Rubber insert | Rubber insert | 4 | $6.73 | Available to order | 4 |
| 18 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.74 | Available to order | 2 |
| 19 | T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv > 462388 | 2 | $1.62 | Available to order | 2 |
| 20 | T2701080 Headlight Assy, LH Dip Replaced by T2701081 — Headlight Assy, RH Dip | Headlight Assy, LH Dip All mkts except DE,SE,BR,IT,ES,PT,GR,FR,CH,AR,NL,NO,US,TW&CA | 1 | $279.90 | Unavailable | View Details |
| 20 | T2701081 Headlight Assy, RH Dip | Headlight Assy, RH Dip "PART NO LONGER AVAILABLE" CA,DE,SE,BR,IT,ES,PT,GR,FR,CH,AR,NL,NO,US&TW | 1 | $279.90 | Obsolete | View Details |
| 21 | T2700001 Bulb, H4 60/55W, 12V, Type 1, Clear | Bulb, H4 60/55W, 12V, Type 1, Clear | 1 | $17.69 | Available to order | 1 |
| 22 | T2701086 Bulb, Parking Lamp, 4W | Bulb, Parking Lamp, 4W | 1 | $4.12 | Available to order | 1 |
| 23 | T2700402 Cable Guide, Headlight Casing | Cable Guide, Headlight Casing | 2 | $9.31 | Available to order | 2 |
| 24 | T2700454 Amber reflector | Amber reflector | 2 | $6.14 | Available to order | 2 |
| 25 | T2700456 Bracket | Bracket | 1 | $6.55 | Available to order | 1 |
| 26 | T2700468 Rubber, Antirotation, H/Light | Rubber, Antirotation, H/Light | 2 | $6.55 | Available to order | 2 |
| 27 | T2700453 Pressing | Pressing | 2 | $6.55 | Available to order | 2 |
