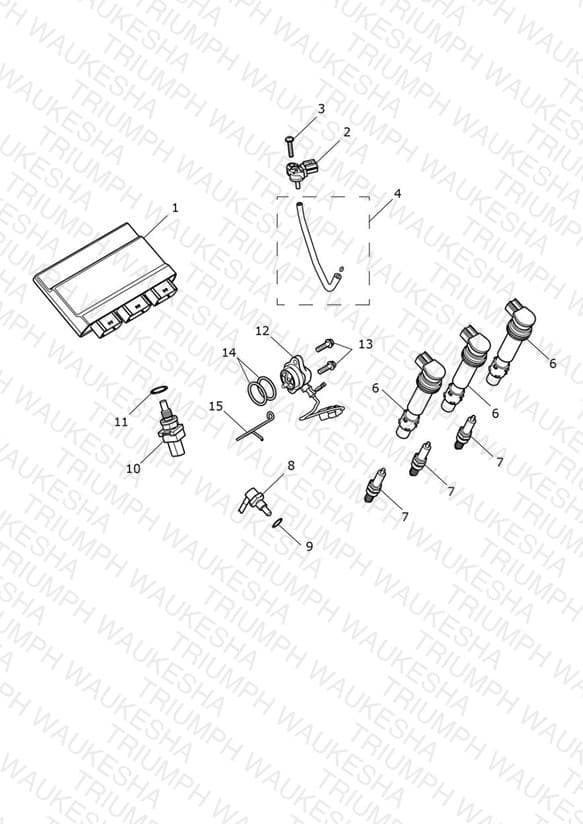

Engine Management
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1293199 ECU, Base, KTKS | ECU, Base, KTKS | 1 | $2137.71 | Available to order | 1 |
| 2 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 1 | $144.49 | Available to order | 1 |
| 3 | T3050346 Screw, Cap/Hd, M5 x 20, Slv | Screw, Cap/Hd, M5 x 20, Slv | 1 | $2.48 | Available to order | 1 |
| 4 | T1249666 Spigot, Map Sensor, Kit | Spigot, Map Sensor, Kit | 1 | $47.56 | Available to order | 1 |
| 6 | T1291503 Coil, Ignition, 1.4 OHM | Coil, Ignition, 1.4 OHM | 3 | $195.81 | Backorder — Mid September 2026 | 3 |
| 7 | T1290023 Spark plug | Spark plug | 3 | $17.50 | Available to order | 3 |
| 8 | T1294225 Sensor, Water Temperature | Sensor, Water Temperature | 1 | $53.40 | Available to order | 1 |
| 9 | T3550571 Washer, Cu, OD 16 x ID 12.5 | Washer, Cu, OD 16 x ID 12.5 | 1 | $5.07 | Available to order | 1 |
| 10 | T1297000 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $57.48 | Available to order | 1 |
| 11 | T3550218 Washer, Rubber, 24 x 11.5 | Washer, Rubber, 24 x 11.5 | 1 | $1.62 | Available to order | 1 |
| 12 | T1299232 Sensor, Gear Position | Sensor, Gear Position | 1 | $119.76 | Available to order | 1 |
| 13 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 14 | T3600267 O Ring, ID 26.65 x Dia 2.62 | O Ring, ID 26.65 x Dia 2.62 | 2 | $1.51 | Available to order | 2 |
| 15 | T3700286 Hose Guide | Hose Guide | 1 | $6.65 | Available to order | 1 |
