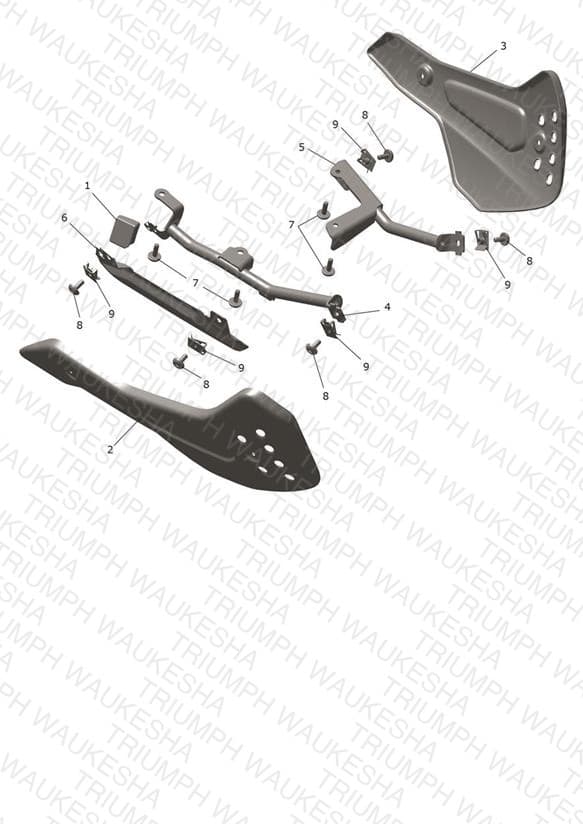

Bellypan- Triple Tribute Only
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2312665 Cover, Bellypan, Mldg | Cover, Bellypan, Mldg | 1 | $2.64 | Available to order | 1 |
| 2 | T2312690 Panel, Bellypan, Pressed, RH | Panel, Bellypan, Pressed, RH | 1 | $98.69 | Available to order | 1 |
| 3 | T2312691 Panel, Bellypan, Pressed, LH | Panel, Bellypan, Pressed, LH | 1 | $131.59 | Available to order | 1 |
| 4 | T2312692 Bracket, Bellypan, Fabricated, RH | Bracket, Bellypan, Fabricated, RH | 1 | $59.38 | Available to order | 1 |
| 5 | T2312693 Bracket, Bellypan, Fabricated, LH | Bracket, Bellypan, Fabricated, LH | 1 | $67.15 | Available to order | 1 |
| 6 | T2312694 Cat Cover, Bellypan, Pressing | Cat Cover, Bellypan, Pressing | 1 | $54.46 | Available to order | 1 |
| 7 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 4 | $6.73 | Available to order | 4 |
| 8 | T3330960 Screw, But/Hd, M5 x 12, Slv Enc | Screw, But/Hd, M5 x 12, Slv Enc | 5 | $3.52 | Available to order | 5 |
| 9 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 5 | $2.48 | Available to order | 5 |
