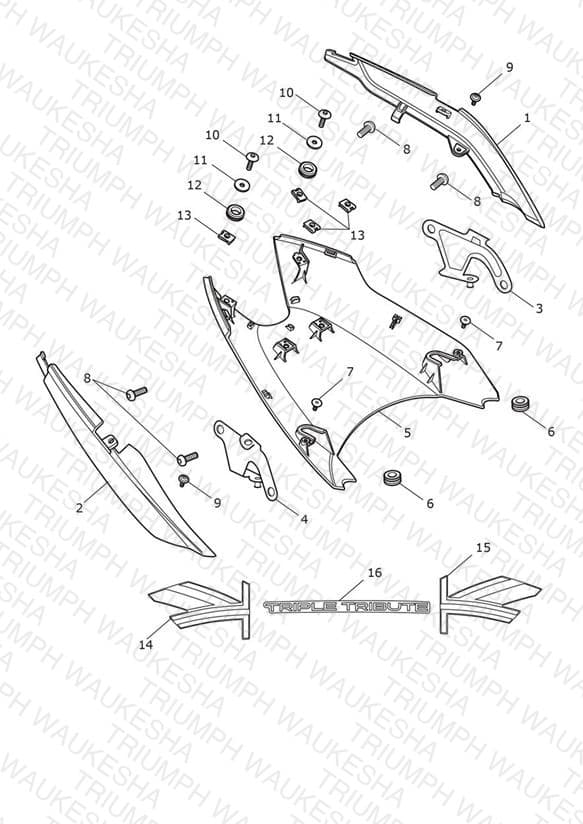

Rear Bodywork - Triple Tribute
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2312344 Infill, Undertray, LH | Infill, Undertray, LH All Except IN | 1 | $19.90 | Available to order | 1 |
| 2 | T2312343 Infill, Undertray, RH | Infill, Undertray, RH All Except IN | 1 | $19.90 | Available to order | 1 |
| 3 | T2310287 Bracket, Undertay, LH | Bracket, Undertay, LH All Except IN | 1 | $14.76 | Available to order | 1 |
| 4 | T2310286 Bracket, Undertray, RH | Bracket, Undertray, RH All Except IN | 1 | $14.76 | Available to order | 1 |
| 5 | T2313738-PM Undertray, Sapphire Black | Undertray, Sapphire Black | 1 | $251.44 | Out of Stock | Notify Me |
| 6 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $1.91 | Available to order | 2 |
| 7 | T3331433 Screw, S/Tap, Pan TX, 4 x 11, PT | Screw, S/Tap, Pan TX, 4 x 11, PT All Except IN | 2 | $1.78 | Unavailable | View Details |
| 8 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 All Except IN | 4 | $3.50 | Available to order | 4 |
| 9 | T3701121 Rivet, Plastic, Screw Type | Rivet, Plastic, Screw Type | 2 | $1.21 | Available to order | 2 |
| 10 | T3330952 Screw, Butn/Hd, M5 x 20, Slv | Screw, Butn/Hd, M5 x 20, Slv | 2 | $2.48 | Available to order | 2 |
| 11 | T3550286 Washer, 5.3 x 18 x 1.6 | Washer, 5.3 x 18 x 1.6 | 2 | $1.62 | Backorder — Early September 2026 | 2 |
| 12 | T3020065 Grommet | Grommet | 2 | $2.95 | Backorder — Early August 2026 | 2 |
| 13 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 4 | $4.55 | Available to order | 4 |
| 14 | T2313748 Decal, Rear Bodywork, RH, Diablo Red | Decal, Rear Bodywork, RH, Diablo Red | 1 | $35.92 | Backorder — Late August 2026 | 1 |
| 15 | T2313747 Decal, Rear Bodywork, LH, Diablo Red | Decal, Rear Bodywork, LH, Diablo Red | 1 | $35.92 | Backorder — Late August 2026 | 1 |
| 16 | T2313749 Decal, Rear, Tribute, Snowdonia White | Decal, Rear, Tribute, Snowdonia White | 1 | $21.56 | Backorder — Late August 2026 | 1 |
