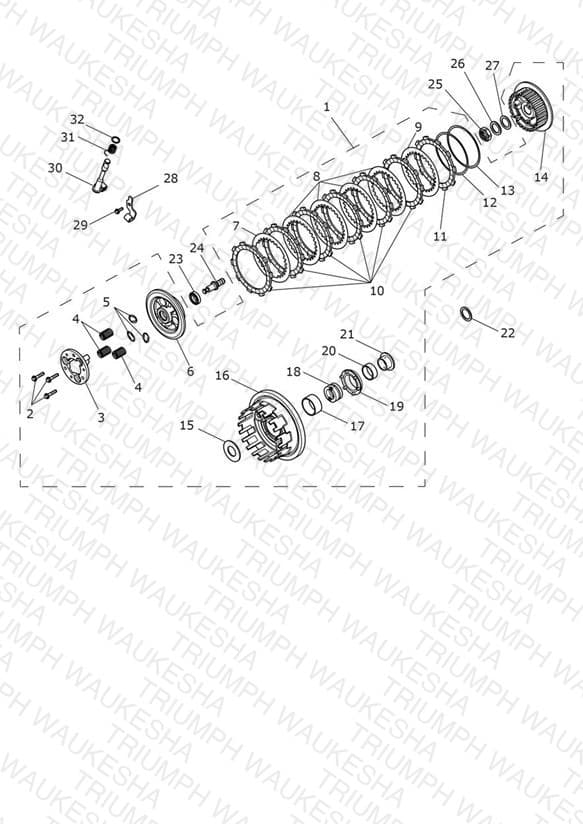

Clutch Assembly
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1176223 Clutch Assembly, Spares, Grade B | Clutch Assembly, Spares, Grade B | 1 | $1092.23 | Available to order | 1 |
| 2 | T1176215 Bolt, M6 x 1 | Bolt, M6 x 1 | 3 | $5.01 | Available to order | 3 |
| 3 | T1176210 Clutch Support Plate | Clutch Support Plate | 1 | $29.77 | Available to order | 1 |
| 4 | T1176211 Clutch Spring | Clutch Spring | 3 | $3.59 | Available to order | 3 |
| 5 | T1176209 Spring Seat | Spring Seat | 3 | $0.97 | Available to order | 3 |
| 6 | T1176208 Clutch Pressure Plate | Clutch Pressure Plate | 1 | $46.61 | Available to order | 1 |
| 7 | T1176206 Clutch Plate | Clutch Plate | 1 | $8.01 | Out of Stock | Notify Me |
| 8 | T1176205 Clutch Plate | Clutch Plate | 4 | $9.10 | Out of Stock | Notify Me |
| 9 | T1176207 Clutch Plate | Clutch Plate | 1 | $10.55 | Out of Stock | Notify Me |
| 10 | T1176203 Friction Disk | Friction Disk | 6 | $35.06 | Available to order | 6 |
| 11 | T1176204 Friction Disk | Friction Disk | 1 | $26.29 | Available to order | 1 |
| 12 | T1176213 Spring Judder | Spring Judder | 1 | $14.58 | Out of Stock | Notify Me |
| 13 | T1176214 Spring Judder Seat | Spring Judder Seat | 1 | $7.62 | Available to order | 1 |
| 14 | T1176202 Clutch Centre | Clutch Centre | 1 | $62.09 | Backorder — Late August 2026 | 1 |
| 15 | T1176212 Thrust Washer | Thrust Washer | 1 | $5.88 | Available to order | 1 |
| 16 | T1176224 Clutch Outer Assy | Clutch Outer Assy | 1 | $928.93 | Available to order | 1 |
| 17 | T1176219 Bearing Needle | Bearing Needle | 1 | $38.49 | Available to order | 1 |
| 18 | T1176218 Bush, Clutch | Bush, Clutch | 1 | $47.08 | Available to order | 1 |
| 19 | T1176216 Sprocket, Clutch, 26T | Sprocket, Clutch, 26T | 1 | $93.80 | Backorder — Late August 2026 | 1 |
| 20 | T1176217 Bearing, Needle | Bearing, Needle | 1 | $22.39 | Available to order | 1 |
| 21 | T1176220 Bush, Sprocket | Bush, Sprocket | 1 | $40.94 | Available to order | 1 |
| 22 | T3555018 Washer, 25 x 35 x 1.75 | Washer, 25 x 35 x 1.75 | 1 | $15.60 | Available to order | 1 |
| 23 | T1173560 Bearing, Clutch Lifter | Bearing, Clutch Lifter | 1 | $34.05 | Available to order | 1 |
| 24 | T1175660 Lifter Piece, Clutch | Lifter Piece, Clutch | 1 | $40.14 | Available to order | 1 |
| 25 | T1170106 Nut, Clutch, 22mm | Nut, Clutch, 22mm | 1 | $13.51 | Available to order | 1 |
| 26 | T1179999 Washer, C, Clutch | Washer, C, Clutch | 1 | $11.71 | Available to order | 1 |
| 27 | T1171282 Washer, ID 22, OD 34 | Washer, ID 22, OD 34 | 1 | $4.64 | Available to order | 1 |
| 28 | T1170182 Bracket, Clutch | Bracket, Clutch | 1 | $12.04 | Available to order | 1 |
| 29 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 30 | T1176199 Clutch Lifter Arm | Clutch Lifter Arm | 1 | $40.97 | Available to order | 1 |
| 31 | T1170666 Spring | Spring | 1 | $5.98 | Available to order | 1 |
| 32 | T3555014 Washer, 13 x 18 x 1 | Washer, 13 x 18 x 1 | 1 | $1.27 | Available to order | 1 |
