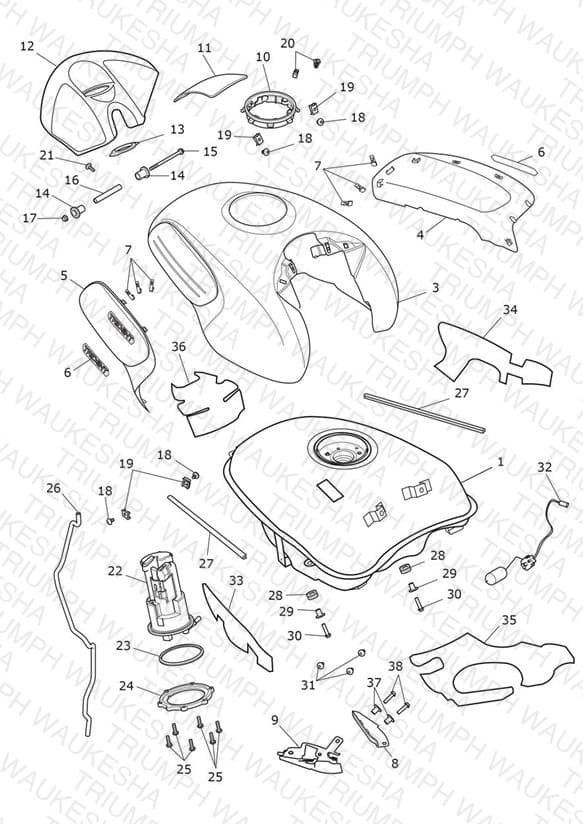

Fuel Tank, Fuel Pump & Fittings
Parts (42)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2404461 Fuel Tank & Bodywork Pad Assembly | Fuel Tank & Bodywork Pad Assembly All Except CA, CN & US - Includes Bodwork Pad, Item 11 | 1 | $792.68 | Available to order | 1 |
| 1 | T2404462 Fuel Tank, Bodywork Pad & Heatpad Assy | Fuel Tank, Bodywork Pad & Heatpad Assy CA, CN, US Only - Includes B/Work Pad Item 11 & Heatpads, Items 33, 34, 35 & 36 | 1 | $871.96 | Out of Stock | Notify Me |
| 3 | T2403731-PG Fuel Tank Cover, Jet Black | Fuel Tank Cover, Jet Black Decals included with Fuel Tank Cover are shown on separate page - Fuel Tank Decals | 1 | $452.21 | Out of Stock | Notify Me |
| 3 | T2403787-AA Fuel Tank Cover, Cobalt Blue | Fuel Tank Cover, Cobalt Blue Decals included with Fuel Tank Cover are shown on separate page - Fuel Tank Decals | 1 | $452.21 | Available to order | 1 |
| 3 | T2403787-CW Fuel Tank Cover, Diablo Red | Fuel Tank Cover, Diablo Red Decals included with Fuel Tank Cover are shown on separate page - Fuel Tank Decals | 1 | $452.21 | Available to order | 1 |
| 3 | T2403787-FJ Fuel Tank Cover, Cosmic Yellow | Fuel Tank Cover, Cosmic Yellow Decals included with Fuel Tank Cover are shown on separate page - Fuel Tank Decals | 1 | $452.21 | Backorder — Late August 2026 | 1 |
| 3 | T2403787-PM Fuel Tank Cover, Sapphire Black/Cobalt Blue | Fuel Tank Cover, Sapphire Black/Cobalt Blue Triple Tribute Edition Only - Decals included with Fuel Tank Cover are shown on separate page - Fuel Tank Decals | 1 | $558.78 | Available to order | 1 |
| 4 | T2403504 Fuel Tank Sidepanel, LH | Fuel Tank Sidepanel, LH | 1 | $37.08 | Available to order | 1 |
| 5 | T2403505 Fuel Tank Sidepanel, RH | Fuel Tank Sidepanel, RH | 1 | $37.08 | Available to order | 1 |
| 6 | T2310446 Badge, Kneepad | Badge, Kneepad | 2 | $80.88 | Available to order | 2 |
| 7 | T2313085 Clip, Bodywork | Clip, Bodywork | 6 | $2.45 | Available to order | 6 |
| 8 | T2313304 Tank Infill, LH | Tank Infill, LH | 1 | $9.29 | Out of Stock | Notify Me |
| 9 | T2318900 Tank Infill, RH | Tank Infill, RH | 1 | $7.78 | Backorder — Late August 2026 | 1 |
| 10 | T2405473 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.12 | Available to order | 1 |
| 11 | T2405475 Fuel Tank Pad, Bodywork | Fuel Tank Pad, Bodywork | 1 | $15.15 | Available to order | 1 |
| 12 | T2403503 Ignition Barrel Shroud, Moulding | Ignition Barrel Shroud, Moulding | 1 | $24.48 | Available to order | 1 |
| 13 | T2403508 Ignition Barrel Grommet | Ignition Barrel Grommet | 1 | $4.55 | Available to order | 1 |
| 14 | T2400446 Rubber Bush | Rubber Bush | 2 | $3.24 | Out of Stock | Notify Me |
| 15 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Available to order | 1 |
| 16 | T2401401 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.65 | Backorder — Early August 2026 | 1 |
| 17 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 18 | T3330289 Screw, But/Hd, TX, M5 x 16, Slv | Screw, But/Hd, TX, M5 x 16, Slv | 4 | $1.99 | Available to order | 4 |
| 19 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 4 | $2.48 | Available to order | 4 |
| 20 | T3700290 Clip, Panel, Bayonet | Clip, Panel, Bayonet | 2 | $2.37 | Available to order | 2 |
| 21 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 1 | $6.73 | Available to order | 1 |
| 22 | T2408485 Fuel Pump | Fuel Pump | 1 | $535.60 | Available to order | 1 |
| 23 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 24 | T2400562 Location Plate, Pump | Location Plate, Pump | 1 | $37.09 | Available to order | 1 |
| 25 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 26 | T2405471 Drain Hose, Fuel Tank | Drain Hose, Fuel Tank | 1 | $12.13 | Available to order | 1 |
| 27 | T2402957 Seam Protector, Fuel Tank | Seam Protector, Fuel Tank | 2 | $4.89 | Available to order | 2 |
| 28 | T3020622 Grommet, Castellated | Grommet, Castellated | 2 | $1.78 | Backorder — Late August 2026 | 2 |
| 29 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 2 | $4.12 | Available to order | 2 |
| 30 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 2 | $2.63 | Available to order | 2 |
| 31 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 3 | $4.92 | Available to order | 3 |
| 32 | T2403397 Fuel Level Sender | Fuel Level Sender | 1 | $147.44 | Out of Stock | Notify Me |
| 33 | T2404445 Heat Pad, Fuel Tank, RH | Heat Pad, Fuel Tank, RH CA, CN, US Only | 1 | $24.36 | Available to order | 1 |
| 34 | T2404446 Heat Pad, Fuel Tank, LH | Heat Pad, Fuel Tank, LH CA, CN, US Only | 1 | $24.36 | Available to order | 1 |
| 35 | T2404447 Heat Pad, Fuel Tank, Front | Heat Pad, Fuel Tank, Front CA, CN, US Only | 1 | $29.24 | Available to order | 1 |
| 36 | T2404448 Heat Pad, Fuel Tank, Rear | Heat Pad, Fuel Tank, Rear CA, CN, US Only | 1 | $24.36 | Available to order | 1 |
| 37 | T3010165 Flanged Sleeve, 6.5 x 16 x 6 | Flanged Sleeve, 6.5 x 16 x 6 | 2 | $3.07 | Available to order | 2 |
| 38 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
