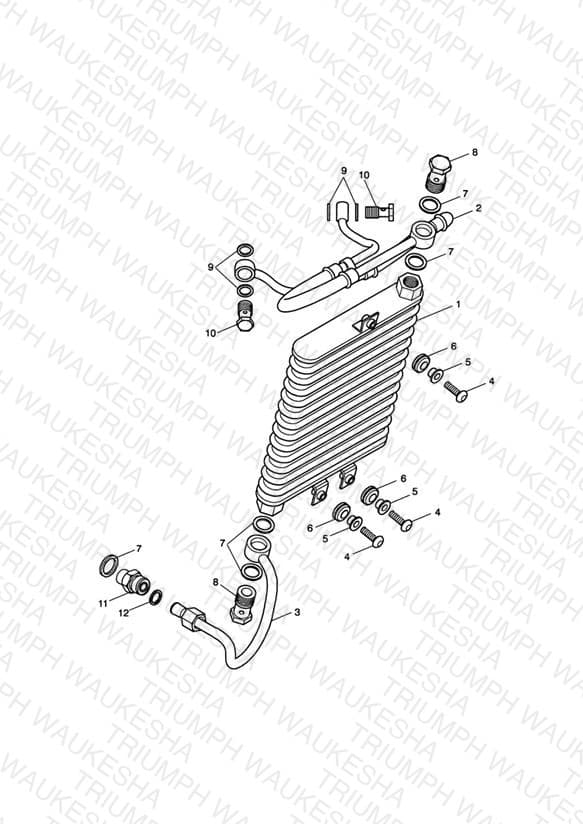

Oil Cooler
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1210228 Oil Cooler, 13 Row | Oil Cooler, 13 Row | 1 | $730.56 | Available to order | 1 |
| 2 | T2101685 Kit, Oil Feed/Return | Kit, Oil Feed/Return | 1 | $252.83 | Available to order | 1 |
| 3 | T2101480 Pipe return | Pipe return | 1 | $102.34 | Backorder — Mid August 2026 | 1 |
| 4 | T3203025 Bolt, RHHF, Domed, M6 x 25, S/S | Bolt, RHHF, Domed, M6 x 25, S/S | 3 | $2.10 | Available to order | 3 |
| 5 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 3 | $5.78 | Available to order | 3 |
| 6 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 3 | $2.85 | Available to order | 3 |
| 7 | T3550905 Washer, M18 x 21.9 OD, Copper | Washer, M18 x 21.9 OD, Copper | 5 | $2.48 | Available to order | 5 |
| 8 | T2100227 Banjo Bolt, M18 x 31 | Banjo Bolt, M18 x 31 | 2 | $13.33 | Available to order | 2 |
| 9 | T3550547 Washer, Cu, OD19 x ID14.2 | Washer, Cu, OD19 x ID14.2 | 4 | $4.32 | Available to order | 4 |
| 10 | T1210241 Banjo Bolt, M14 x 28 | Banjo Bolt, M14 x 28 | 2 | $13.18 | Available to order | 2 |
| 11 | T2101600 Adaptor, Male | Adaptor, Male | 1 | $12.63 | Available to order | 1 |
| 12 | T2101380 O Ring | O Ring | 1 | $4.12 | Available to order | 1 |
