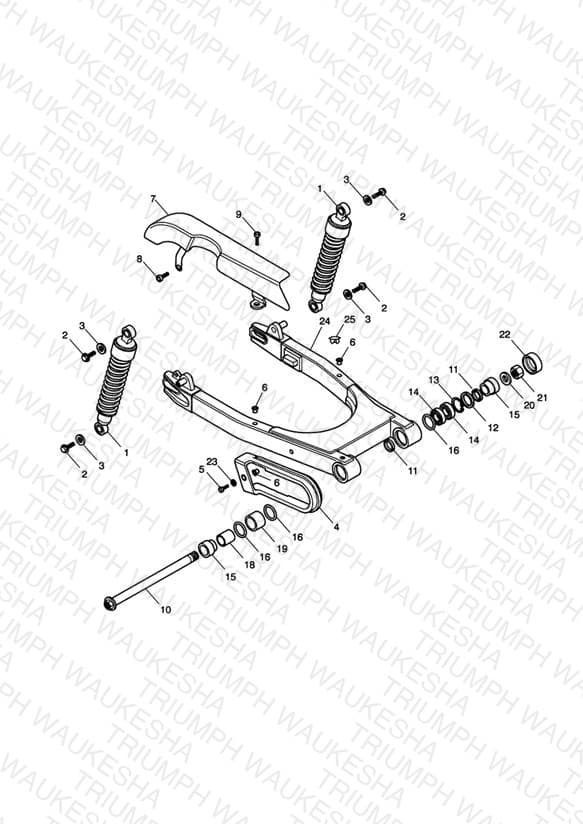

Rear Suspension
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2057985 Rear Suspension Unit | Rear Suspension Unit | 2 | $660.14 | Available to order | 2 |
| 2 | T3205457 Bolt, HHF, Lghtd, M8 x 20, Enc | Bolt, HHF, Lghtd, M8 x 20, Enc | 4 | $1.62 | Available to order | 4 |
| 3 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 4 | $2.74 | Available to order | 4 |
| 4 | T2057367 Rubbing strip | Rubbing strip | 1 | $68.92 | Available to order | 1 |
| 5 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 1 | $1.06 | Available to order | 1 |
| 6 | T3350216 Threaded Insert, M6 | Threaded Insert, M6 | 3 | $3.39 | Available to order | 3 |
| 7 | T2057388 Chainguard, Steel, Trimmed | Chainguard, Steel, Trimmed | 1 | $87.47 | Available to order | 1 |
| 8 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 9 | T3330231 Screw, Lge Skt Hd, M6 X 1 X 25 | Screw, Lge Skt Hd, M6 X 1 X 25 | 1 | $13.51 | Available to order | 1 |
| 10 | T2054050 Spindle | Spindle | 1 | $75.11 | Available to order | 1 |
| 11 | T2054063 Spacer, 25 x 17 x 8.5 | Spacer, 25 x 17 x 8.5 | 2 | $8.01 | Available to order | 2 |
| 12 | T3600044 Oil Seal, 35 25 4 | Oil Seal, 35 25 4 | 1 | $10.44 | Available to order | 1 |
| 13 | T3500204 Circlip, Int, 35 x 1.5 | Circlip, Int, 35 x 1.5 | 1 | $0.97 | Available to order | 1 |
| 14 | T3800506 Bearing, Ball, 17 x 35 x 10 | Bearing, Ball, 17 x 35 x 10 | 2 | $19.29 | Available to order | 2 |
| 15 | T2054115 Bush | Bush | 2 | $11.88 | Available to order | 2 |
| 16 | T3600170 Seal, SD 25 32 04 | Seal, SD 25 32 04 | 3 | $13.51 | Available to order | 3 |
| 18 | T2054344 Sleeve, Ground, 25 x 17 x 37 | Sleeve, Ground, 25 x 17 x 37 | 1 | $13.21 | Available to order | 1 |
| 19 | T3800014 Roller bearing | Roller bearing | 1 | $14.32 | Available to order | 1 |
| 20 | T3555032 Washer, 17 x 30 x 3 | Washer, 17 x 30 x 3 | 1 | $3.17 | Available to order | 1 |
| 21 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 1 | $9.41 | Available to order | 1 |
| 22 | T3450028 Moulding Cap 24 A/F | Moulding Cap 24 A/F | 1 | $3.17 | Available to order | 1 |
| 23 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 1 | $1.40 | Available to order | 1 |
| 24 | T2056869 Swinging Arm | Swinging Arm | 1 | $880.05 | Out of Stock | Notify Me |
| 24 | T2056866 Swinging Arm Assy | Swinging Arm Assy Includes bearings etc - items 6, 12, 13, 14, 16, 19 & 25 | 1 | $1249.83 | Backorder — Late August 2026 | 1 |
| 25 | T3451010 Plug, Hole Dia 10 | Plug, Hole Dia 10 | 1 | $2.10 | Backorder — Late August 2026 | 1 |
